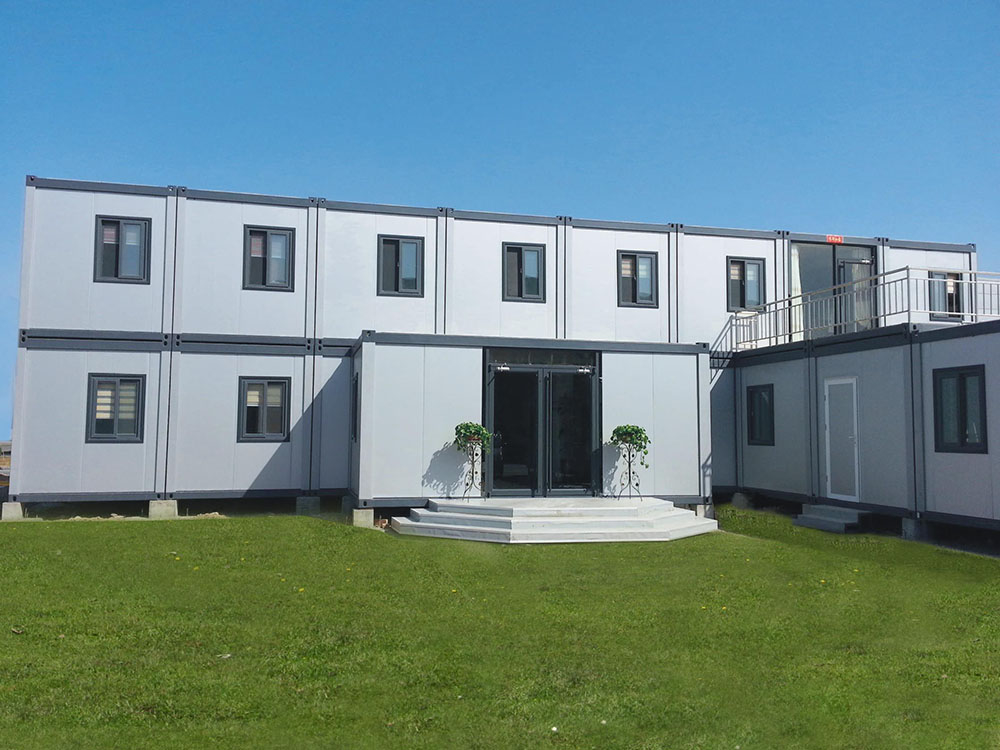

Rapid Construction Prefabricated Modular Dormitory Buildings Portable

Name: Rapid Construction Prefabricated Modular Dormitory Buildings Portable
Brand: Qingdao KXD Steel Structure Co., Ltd
SKU: KXD-s56
Price: 2,000.00 USD
Availability: InStock

Product Details

Place of Origin: Qingdao，China

Brand Name: KXD

Certification: ISO/BV/GB/SGS

Model Number: KXD-s56

Payment & Shipping Terms

Minimum Order Quantity: 5 set

Price: usd 1500-2500 per set

Packaging Details: seaworthy package

Delivery Time: 15 day

Payment Terms: ,L/C,T/T

Supply Ability: 5000 set/month

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Prefabricated Modular Dormitory Buildings, Weather resistant Modular Dormitory Buildings, 0.35mm prefabricated dormitory


Installation Time:	Short Lead Time	Size:	Customizable
Insulation:	High-quality	Energy Efficiency:	LEED Certified
Durability:	Weather-resistant	Sustainability:	Eco-friendly Materials

Installation Time:	Short Lead Time
Size:	Customizable
Insulation:	High-quality
Energy Efficiency:	LEED Certified
Durability:	Weather-resistant
Sustainability:	Eco-friendly Materials

Description

Rapid Construction Prefabricated Modular Dormitory Buildings Portable

Rapid Construction Prefabricated Modular Building Portable Dormitory

Basic info.

Design Style	Postmodern	After-sale Service	Free spare parts, Online technical support
Material	Sandwich Panel, Steel	Product Type	Prefabricated Modular Building
Feature	Breathable	Application	container home, dormitory, Office Building, Villa
Warranty	1 Year	Thickness	Standard
Use	House	Brand Name	KXD
Place of Origin	China

Product Description

A container house (also known as a "shipping container house") is a movable and reusable innovative building product. It adopts a modular design concept and factory prefabrication production model, with standardized containers as basic units. These containers can be used independently or flexibly combined through horizontal splicing or vertical stacking to create diverse living spaces, with a maximum of 3 layers stackable vertically.

The unit structure of each container is composed of standard components welded from special steel sections, and the containers are rigidly connected by bolts to form a stable overall framework. This design not only ensures structural safety (capable of withstanding conventional loads and harsh weather conditions) but also achieves the convenience of "install and use immediately" – on-site installation requires no complicated construction processes, allowing for quick assembly and disassembly, which significantly shortens the construction period and reduces comprehensive costs.

With its flexibility in modular combination, stability of the structural system, and environmentally friendly recyclable characteristics, container houses have been widely applied in multiple scenarios such as temporary offices, construction camps, emergency shelters, cultural tourism homestays, etc., becoming a highly favored lightweight solution in the modern construction field.

Product Parameters

Main structure	Coulmn	2.3mm galvanized steel profile, 210*150(4 pcs), with 8mm connector and L-shaped column reinforcement
	Roof Beam	2.0mm galvanized cross members, 170 width
	bottom Beam	2.3mm galvanized cross members, 160 width
	Roof Corner Fitting	210150210 mm (4pcs), galvanized
	Floor Corner Fitting	210150160 mm (4pcs), galvanized
Main accessory	Single tile roof	0.35mm color steel single tile, 360 degree bite, waterproof
	Moisture-proof	Moisture proof film, PE resin film 1.0mm
	Wall panel	75mm glass wool insulation cotton quilt+tin foil paper, 14kg/m ³
	Colour	Baking paint (electrostatic spraying)
	Bolt	Inner hexagon (galvanized)
	Downspout	50 downspout(4 pcs)
	Ceiling tiles	0.3mm, 831 color steel integrated ceiling panel, coated with film
	Ceiling square tube	40 * 40 (2pcs)
	Cement fiber board	18mm thick, 1177 * 2820mm
Spare Part	Floor	1.6mm, Floor leather
	baseboard	PVC material, including fixed accessories, 5.8m/piece
	concave line	Color steel inner corner line, white grey coated film
	Door	840 * 2035mm (1150 type wall panel)
	Window	800 * 1100/1130 * 1100 single glass single push (1150 type wall panel)
	Covering	50mm rock wool composite board, double-sided iron sheet 0.3/0.3mm, bulk density 50kg/m ³, double-sided orange peel pattern, double-sided film coating
	Auxiliary materials	Screws, sealant, internal box connectors

Advantage

1. Quick installation

3 people can complete the installation in 2 hours

2. Fireproof & Rustproof

galvanized square steel frame + rockwool sandwich panel

3. ECO-Friendly Materials

100% recyclable environmentally friendlymaterials, harmless and pollution-free. ile.

Application

Office

Dormitory

Meeting room

Bathroom

Kitchen

Engineering camp

Commercial property

Military camps

Temporary warehouse

Packing and shipping

The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.

Rapid Construction Prefabricated Modular Dormitory Buildings Portable 9

Installation Instructions

Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.

Why KXD Accommodation Containers?

As a leading accommodation container manufacturer, we supply a full range of prefabricated accommodation buildings to locations throughout Africa, Asia, Europe, The Americas, Europe, and the Middle East.KXD is a preferred prefabricated accommodation building manufacturer for many reasons, some of which include:

They are quick to design, deliver, and install.
We offer high-quality containers at a competitive price.
KXD can supply containers to clients in more than 120 countries.
Our team is on hand to support you through the entire design, manufacturing, and delivery process.
We have specialist packaging systems to ensure the economical delivery of our living sites.
Please contact us to learn more about our modular solutions.
