Q235 Q345 Container Labour Accommodation Workers' Residence 8-10 People

Product Details

Place of Origin: Qingdao, China

Brand Name: KXD

Certification: ISO, CE

Model Number: kxd-140

Payment & Shipping Terms

Minimum Order Quantity: 16 Sets

Price: US$1,200.00-2,500.00

Delivery Time: 2 months

Payment Terms: L/C,T/T

Supply Ability: 5000 Sets/Month

Get Best Price
Chat Now
Specifications
Highlight:

Q345 container labour accommodation

,

Q235 container labour accommodation

,

10 People modular container

Security:
High
Warranty:
1 Year Limited Warranty
Capacity:
8-10 People
Service:
Design,Product,Erection,Transportation,Product Maintenance,Commissioning
Steel Type:
Q235 Q345
Certification:
ISO, CE
Security:
High
Warranty:
1 Year Limited Warranty
Capacity:
8-10 People
Service:
Design,Product,Erection,Transportation,Product Maintenance,Commissioning
Steel Type:
Q235 Q345
Certification:
ISO, CE
Description
Q235 Q345 Container Labour Accommodation Workers' Residence 8-10 People

 Low Cost  High Efficiency Labour Accommodation Container Workers' Residence

Product Parameters
Model NO. kxd-140 Certification ISO, CE
Steel Character Low-Alloy High-Tensile Structural Steel HS Code 9406900090
Connection High Strength Bolts Trademark KXD
Anti-Corrosion Alkyd / Epoxy Painting; Hot-DIP Galvanize Warranty 1 Year Limited Warranty
Colors Optional
Production Capacity
5000 sets Per Month
Roof Ventilation Ridge Ventilator ; Ventilated Fan Origin China, Qingdao
Insulation EPS, Glasswool, Rockwool, PU Customized According to the customer's needs
Window Plastic Steel Window; Aluminum Alloy Window Service Turnkey Projects or as Demands
Door Swing Door Steel Grade Q355, Q235
Usage Warehouse, Villa, Dormitories, Temporary Offices




Folding Container House
Packing capacity Qty Unit
40HQ/10sets 10 set
Dimension
External dimension (mm) 5800 L * 2500 W * 2560H
Internal dimension (mm) 5660 L * 2360 W * 2350H
Folding state (mm) 5800 L * 2500 W * 430H
Total mass (kg) 1300
Standard Design Parameter
No. Item  value
1 Roof load >=0.5KN/m2
2 Flooring Load >=2.0KN/m2
6 Fire-proof level A  Level
8 Seismic grade 8  Grade
9 Windproof level 10 Level
Main material of Prefab  House
No.    Component      Materials Thick(mm)
Steel Structure
1 Hanging head 200*80mm,Cast steel connecting piece   15
2  Column 150*150mm, Special-shaped galvanized steel tube 1.5
3 Bottom girder H:270mm,Special-shaped galvanized steel 2.5
4 Top girder H:170mm,Special-shaped galvanized steel 1.5
5 Hinge 85*115 mm,Galvanized 304 stainless steel 5
Wall Panel & Roof Tile
Roof External roof Corrugated steel plate 0.5
Interior roof  Ceiling tile 0.35mm ,
glass wool 75mm

Floor Floor  MGO board,density≥1.3g/cm³ 15.0
Wall  Interior wall panels Galvanized color steel plate 0.3
External wall panels Galvanized color steel plate 0.3
Wall Panel Fireproof rock wool board 50.0
Window & Door&Floor
1  Door High quality security door 860*1998
2 Window Aluminum alloy  window
950*1200×2
Electrical system
Voltage 220V~250V
 Wire The total power cord for entry is 6.0 square meters, the air conditioning cable is 4.0 square meters, the socket cable is 2.5 square meters, and the lighting switch cable is 1.5 square meters
 Circuit breaker high score break miniature circuit breaker
Lighting  1 set of single LED fluorescent lamps,36w
Sockets socket, 3 pcs





I. Product Content:



1. Box structure: Usually based on steel containers, it features excellent sealing and sturdiness.


2. Interior decoration: The walls and floors are decorated with corresponding materials, and some of them will also undergo thermal insulation and heat preservation treatment.


3. Living facilities: It can be equipped with beds, lighting equipment, bathrooms, kitchens and other facilities to meet basic living needs.


4. Appearance Design: The appearance can be painted and designed in different colors and shapes. Some can also be equipped with Windows as required to enhance the aesthetic appeal and lighting.



Ⅱ Applications:




1. Construction site accommodation: Mainly used at construction sites to provide temporary living Spaces for workers.


2. Temporary office: It can be transformed into an office, meeting room, etc., to meet the on-site office needs of construction sites.


3. Other scenarios: It can also be applied in tourist attractions as homestays, camping rooms, or as temporary shops, ticket booths, container hospitals, etc.



Ⅲ. Advantages and benefits:



1. Low cost: The construction, transportation and maintenance costs are all lower than those of traditional buildings, and the rental price is also relatively affordable.



2. Easy to move: It can be hoisted and transported as a whole, and can be quickly relocated according to changes in the project location, with high reusability.



3. Quick installation: Factory prefabrication production, with short on-site installation time, enables rapid delivery and use, reducing the construction period.



4. Stable structure: Made of steel structure, it features excellent seismic resistance, wind resistance and fire resistance, is sturdy and durable, and has a long service life.



5. Environmental protection and energy conservation: The materials are recyclable, generating less waste during construction. It can also be combined with solar energy and other equipment to reduce energy consumption.



6. Flexible layout: Multiple containers can be flexibly combined to form different house types and functional areas, meeting diverse accommodation needs.



7. Comfortable living: It can be equipped with various living facilities and has good heat insulation and sound insulation effects, providing a good living experience

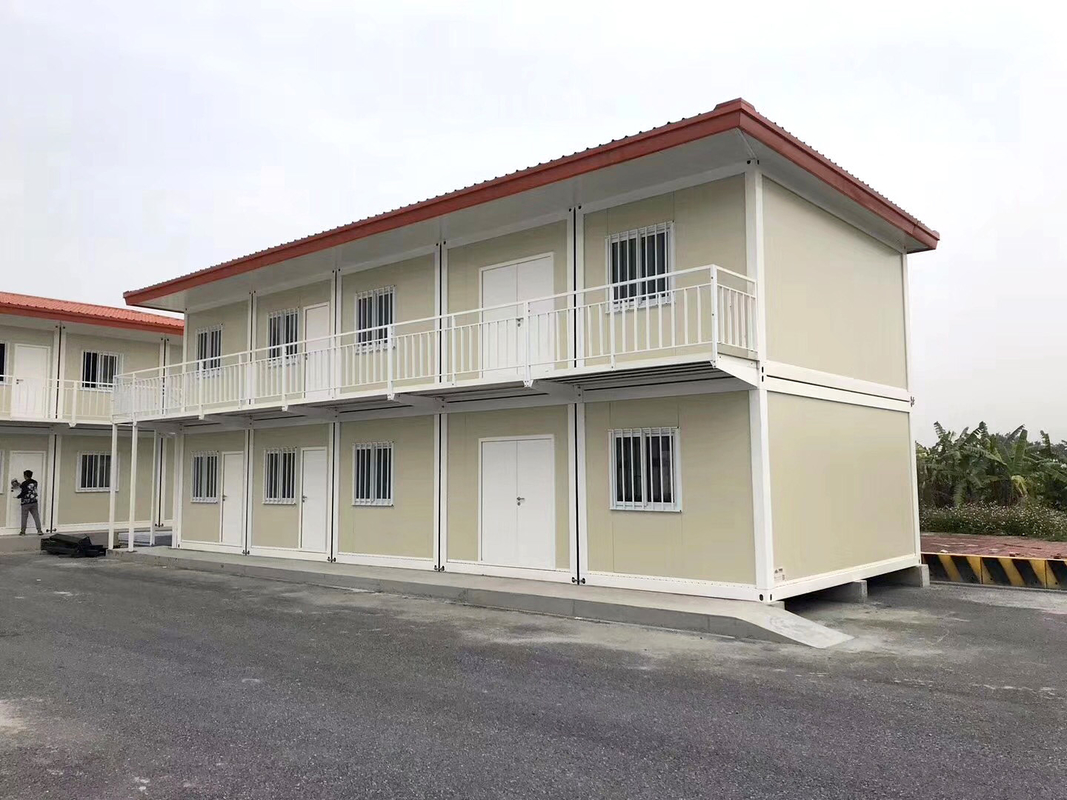

Q235 Q345 Container Labour Accommodation Workers' Residence 8-10 People 0

Q235 Q345 Container Labour Accommodation Workers' Residence 8-10 People 1

Q235 Q345 Container Labour Accommodation Workers' Residence 8-10 People 2









Ⅳ. Service: One-stop service






 Pre-Sales Service
Research and Positioning 1.Type and Core of Needs
    2.Regional Objective Conditions: Climate, Land, Regulations

Solution Development and Technical Communication 1.Structure + Function
2.Understand  Types

Compliance + Qualification Audit 1.Material and Qualification Compliance
2.Localized Standard Adaptation

Quotation and Business Support 1.Transparent Quotation List
2.Customized Business Solutions



 In-Sales Service
Quality Control & Compliance Management 1.Full - process Quality Inspection System
2.Export Compliance Documentation Preparation

Logistics Solution Design & Execution 1.Optimized Container Transport Selection
2Packaging & Protection Standards

Documentation Management and Customs Clearance Support 1.Letter of Credit (L/C) Document Handling
2.Destination Customs Clearance Assistance

 Customer Communication and Progress Synchronization 1.Visualized Progress Reports
2.Emergency Response to Unforeseen Issues



After-Sales Service
 Installation and Commissioning Support 1.On-site Technical Guidance
2.Equipment Commissioning and Acceptance

Warranty and Maintenance Service 1.Warranty Commitment and Response
2.Remote Diagnosis and Repair

Spare Parts Supply and Upgrade Service 1.Global Spare Parts Warehouse Support
2.Functional Upgrade Solutions

Customer Relationship Management 1.Regular Follow-ups and Feedback
2.Complaint Handling and Crisis Response

We offer all services, including design quotations, subsequent transportation and installation, to ensure your satisfaction



Q235 Q345 Container Labour Accommodation Workers' Residence 8-10 People 3



Q235 Q345 Container Labour Accommodation Workers' Residence 8-10 People 4



Q235 Q345 Container Labour Accommodation Workers' Residence 8-10 People 5



If you want to know more details, I'm Tracy. You can contact me at any time. I'll serve you wholeheartedly
