Product Description
Product overview
Prefabricated container houses are prefabricated using factory six sided box bodies, integrating structures, shells, and pipeline systems. After the finished products are transported to the site, they are lifted and assembled by cranes. The module supports parallel, end-to-end, or stacked combinations, allowing for flexible construction of temporary or permanent buildings such as exhibition halls and dormitories.
Product parameters
| Detachable Container House (20 feet container) |
| Single Unit Detail |
Length |
5950mm |
| Width |
3000mm |
| Height |
2800mm |
| Weight |
1300kg |
| Roof Live Load |
0.5KN/m² |
| Wind-Resisitance |
0.6KN/m² |
| Seismic Resistance |
8 Grade |
| Fire-proof Grade |
A |
| Service Life time |
10-15 years |
| Installation Time |
4 labors with 3 hours for 1 unit house |
| Max Floors |
3 |
| Loading |
20' Container
(7 units house) |
40' HQ container
(17 units house) |
| Flat Pack Container House (20 feet container) |
| Single Unit Detail |
Length |
6058mm |
| Width |
2438mm |
| Height |
2896mm |
| Weight |
2145kg |
| Roof Live Load |
0.5KN/m² |
| Wind-Resisitance |
0.6KN/m² |
| Seismic Resistance |
8 Grade |
| Fire-proof Grade |
A |
| Service Life time |
15-20 years |
| Installation Time |
4 labors with 2 hours for 1 unit house |
| Max Floors |
3 |
| Loading |
20' Container
(3 units house) |
40' HQ container
(7 units house) |
Cost comparison and advantages
Cost : The initial cost is 30% -50% lower than traditional buildings, saving about 70000 to 80000 yuan for a 100 square meter dormitory; The maintenance cost in the later stage is low, the module can be recycled and reused by 90%, and the secondary installation fee is only 40% of the new construction cost.
Advantages :
♦ Short construction period: factory prefabrication+on-site quick installation, reducing construction period by 60%+
♦ High flexibility: Modules can be stacked and combined to meet the spatial requirements of multiple scenarios
♦ Strong durability: steel structure+waterproof sheet, with a lifespan of 15 years and resistance to typhoons and earthquakes

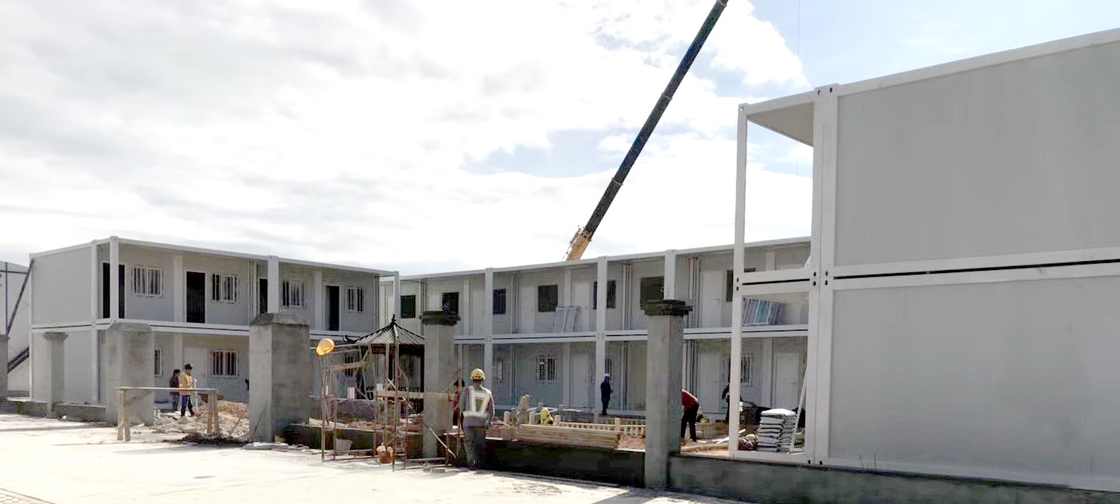

Application cases
If needed, please feel free to contact me anytime and I am always at your service.
FAQ
1. What kind of company you are?
We are steel structure building Manufacturer located in Qingdao China, We were gaining good reputation among our customers for our professional, warm and thoughtful service. Because we know that a long terms business based on the quality control, price, packing, delivery time etc.
2. Does your company is a factory or trade company?
We are factory, so you will enjoy the best price and competitive price. Our factory covers an area of 150,000 square meters.
3. Whats the quality assurance you provided and how do you control quality ?
Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.
4. Can you offer designing service?
Yes, we have more than 100 design engineers. We could design full solution drawings as per your requirements. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(X steel)V12.0.etc.
5. Do you offer guiding installation on site overseas?
Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas. Besides, We also have our own abroad guiding installation team consisting of more than 30 people.
