| Brand Name: | KXD |
| Model Number: | KXD-MH07 |
| MOQ: | 500sqm |
| Price: | 50usd~80usd per sqm |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C,T/T |

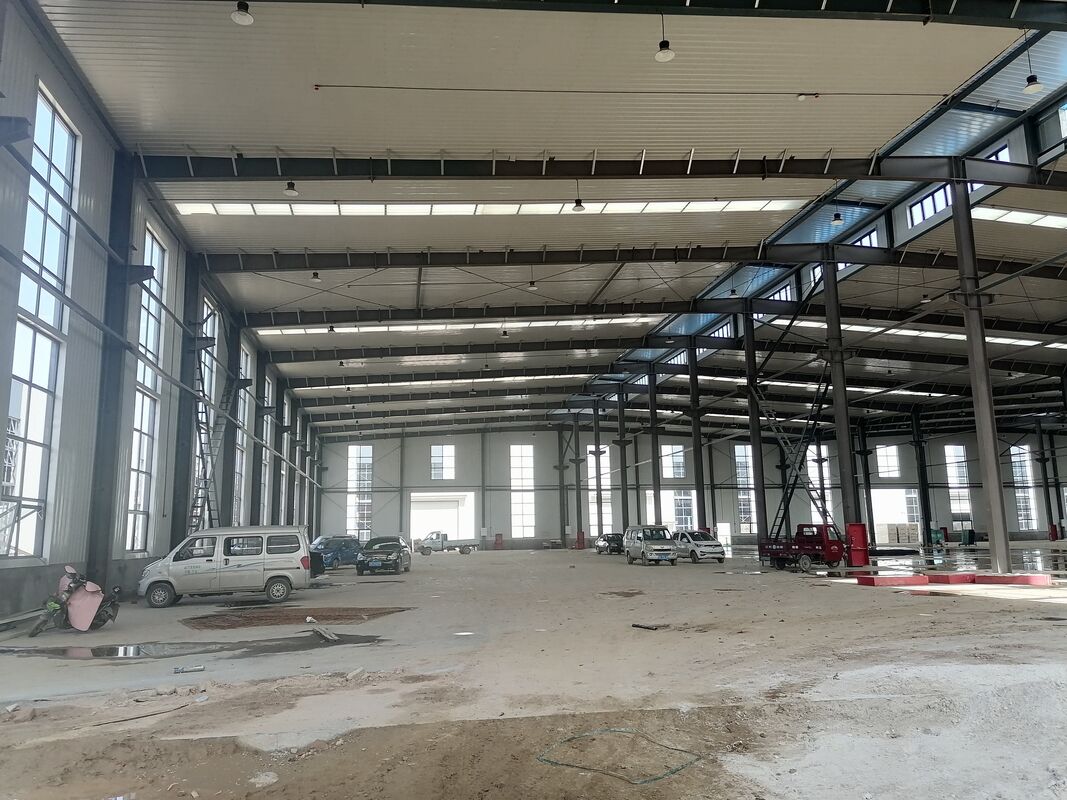

Large Span Galvanized Steel Frame Warehouse For Factory Storage
This prefabricated steel structure warehouse, also known as PEB warehouse, is a cost-effective industrial building solution designed for storage, logistics centers, factory workshops, agricultural storage, commercial stockrooms and distribution hubs. The whole building adopts standard pre-engineered light steel frame system, all steel components are manufactured and pre-processed in factory, then transported to project site for quick assembly, greatly cutting down construction period and labor cost compared with traditional concrete buildings.
Main Structural ComponentsPrimary load-bearing system consists of hot dip galvanized H-section steel columns and beams. Raw material adopts Q235B/Q355B steel, with sand blasting anti-rust treatment and two layers of anti-corrosion paint or full galvanization to resist rust, rain, snow and coastal salt fog erosion. The frame supports large span design without intermediate columns, maximizing internal usable space.
2. Secondary Steel Components
Including C purlins, Z purlins, angle bracing, tie rods, anchor bolts and wall beams. All secondary steel parts are galvanized for long service life, forming stable lateral support system to resist wind load and snow load.
3. Wall & Roof Cladding
Optional single color steel corrugated sheets for low-budget projects; 50mm/75mm/100mm PU/EPS/Rock wool sandwich panels for thermal insulation, heat preservation and fire prevention. Waterproof gutters, downpipes and ridge caps are equipped to prevent water leakage in rainy seasons.
4. Auxiliary Supporting Parts
Industrial sliding doors, roller shutter doors, overhead cranes, ventilation fans, daylighting panels, windows, floor drainage systems, insulation cotton, waterproof sealing strips, lightning protection system.
Core Advantages
Fast Construction: All parts prefabricated in factory, only bolt connection on site, 50%-70% shorter construction time than brick concrete buildings.
Wide Span & High Space Utilization: Clear span up to 60 meters, adjustable eave height from 3m to 15m, no inner columns to block storage goods and forklift operation.
Excellent Anti-corrosion & Weather Resistance: Hot dip galvanized steel structure adapts to high temperature, heavy snow, coastal humid, rainy and desert environments, service life over 30 years.
Energy Saving & Thermal Insulation: Rock wool/PU sandwich panels achieve good heat insulation, reduce air conditioning and heating energy consumption, fire resistance grade up to Grade A.
Flexible Customization: We customize size, span, height, wind/snow load standard, door and window layout, crane load according to local building codes and customer demands.
Low Maintenance & Reusable: Steel components can be disassembled, transferred and reused for other projects; easy to repair and replace damaged panels with low maintenance cost.
Light Weight & High Seismic Performance: Lighter self-weight than concrete, outstanding earthquake resistance, suitable for seismic zone areas.
