Automatic Steel Structure Peb Customized Poultry Chicken Farming Shed

Galvanized steel structure chicken coop - modern agricultural and animal husbandry breeding solution

Ⅰ. Product Description

With the increasing emphasis on the breeding environment in agriculture and animal husbandry, galvanized steel structure chicken houses have become the mainstream choice for aquaculture and poultry farming due to their anti-corrosion, stability, lightweight and high-strength characteristics. The chicken coop adopts hot-dip galvanizing process to treat steel structural components, which can effectively resist corrosion problems in high temperature and high humidity environments, and the design life is over 20 years. Combined with modular prefabrication technology, the on-site installation cycle is shortened by 40% compared to traditional buildings, while supporting customized layouts that can adapt to different breeding scenarios such as laying hens and broiler chickens. By combining intelligent systems such as automatic feeding, drinking water, and ventilation, precise control of the breeding environment can be achieved, helping to upgrade agriculture and animal husbandry towards automation and intensification.

Ⅱ. Product Structure

1.  Main Framework System :

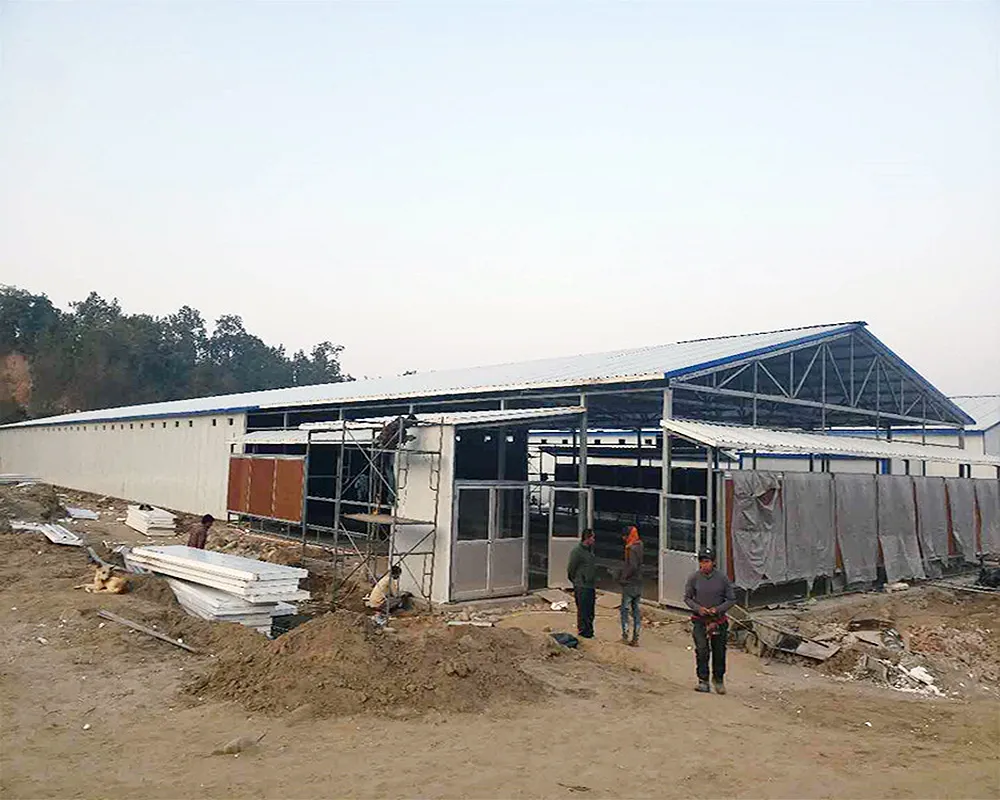

-Made of hot-dip galvanized H-beam/angle steel welded together, the columns and beams are connected by high-strength bolts to form a rigid support system, with a wind resistance level of 10 and a seismic fortification intensity of ≥ 7 degrees;

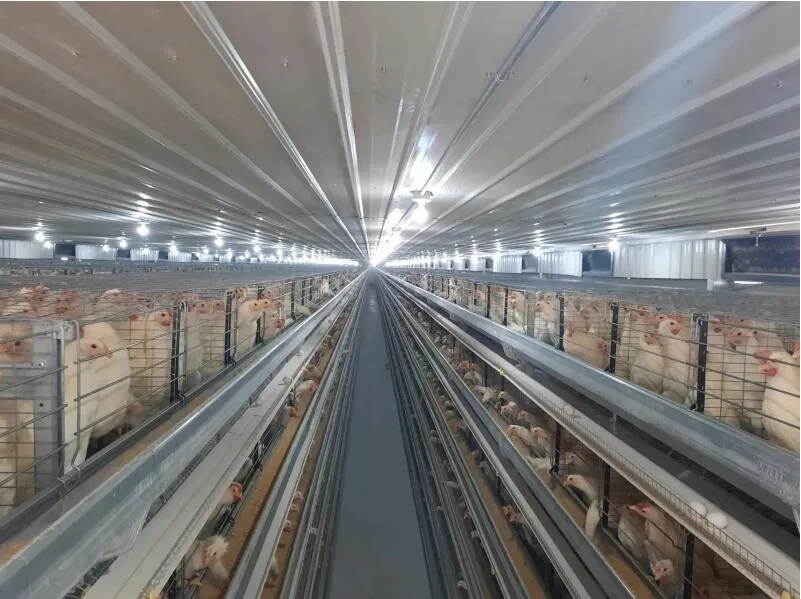

-A/H-type egg chicken equipment dedicated framework design, suitable for multi-layer cage equipment layout, optimizing space utilization.

2.  Enclosure System :

-The roof and walls are made of 0.5mm galvanized color steel plates or 50mm EPS sandwich panels, which have both waterproof, moisture-proof and thermal insulation properties. The surface coating of the panels has a weather resistance of ≥ 10 years;

-Reserve smart device interfaces (ventilation openings, feeding pipe holes) to ensure convenient system integration.

3.  Intelligent aquaculture system :

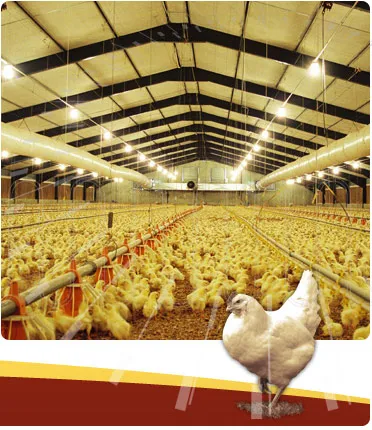

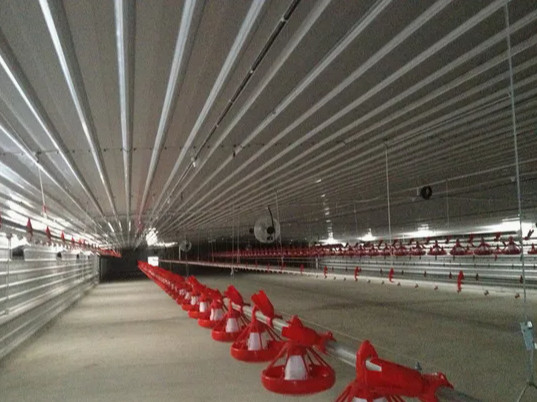

- Automatic tray feeding system : Chain type feed conveying device, timed and quantitative feeding, increasing feeding efficiency by 60%;

-Nipple drinking water system: Stainless steel nipple type water dispenser with a water saving rate of 30%, equipped with a filtering device to ensure water quality;

-Ventilation system: longitudinal negative pressure fan+wet curtain combination, air exchange rate ≥ 60 times/hour, summer cooling range 5-8 ℃.

Ⅲ. Core advantages

Corrosion resistant and durable : Hot dip galvanized layer thickness ≥ 85 μ m, salt spray resistance test ≥ 1000 hours, suitable for high ammonia environment in chicken coops, reducing maintenance costs by 70%;

Structural Safety : The self weight of light steel structures is only one-third of that of concrete buildings, with a wind resistance load of 0.5kN/m2, which can withstand typhoons and earthquakes;

Efficient construction : Factory prefabricated components are assembled on site, with a construction period of ≤ 15 days for a 1000 ㎡ chicken coop, which is 50% shorter than traditional processes;

Intelligent temperature control :Sandwich panel thermal conductivity ≤ 0.041W/(m · K), combined with ventilation system, indoor temperature difference is controlled within ± 2 ℃ range;

Flexible customization :The span (up to 12m), eave height (3-5m), and cage equipment configuration can be adjusted as needed to adapt to different farming scales.

Ⅳ. One stop service system

1. Plan and design

• Conduct on-site research, customize chicken coop plans based on inventory and climate, and output structural calculations and layout diagrams
• Free 3D rendering renderings are provided to visually display both internal and external effects

2. Production and delivery
• Produce steel structures according to ISO9001 standards, with inspection reports attached
• Professional packaging suitable for 40HC containers, minimum order size of 200 square meters, damage rate ≤ 0.3%

3. Installation and after-sales service
• Certified team to construct and debug equipment
• 1-year warranty for equipment, 5-year warranty for structure, 24-hour response, regular maintenance guidance

If you need to learn more technical parameters or obtain customized quotations, please feel free to contact us for detailed information to help your breeding project achieve efficient upgrades.
