Product Description
The high-strength steel structure frame warehouse is mainly composed of high-strength steel columns, steel beams, purlins and roof panels, etc. It forms a stable frame structure through welding and bolt connections. This structural system can effectively withstand vertical loads (such as the weight of goods, roof loads) and horizontal loads (such as wind loads, earthquake loads).Using high-strength steel, it has a high yield strength and tensile strength, capable of withstanding large loads. At the same time, it can reduce the self-weight of the structure and lower the burden on the foundation.Most of the components are prefabricated in the factory and then assembled and installed on site. The construction process is fast and the quality control is strict. It is mainly used in logistics warehousing, industrial warehousing and other fields, and can meet the storage requirements of large spans and large spaces, facilitating the storage and transportation of goods.
Performance Advantages
1.The perfect blend of strength and firmness
Warehouse is constructed with high-strength steel, which far exceeds the strength of traditional building materials. It can easily bear the weight of a large amount of goods stacked in the warehouse, ensuring that the structure remains stable as before even after long-term and high-intensity use. This provides a solid and reliable space guarantee for the operation of the enterprise, allowing your assets to be stored with peace of mind.
2.Flexible and diverse spatial layout
High-strength steel structures endow buildings with great design flexibility. Inside the warehouse, different areas can be freely divided according to the type, specification and logistics requirements of the stored goods, and the reasonable placement of shelves and the width of passageways can be set up to achieve efficient storage and circulation of goods.
3.Fast and efficient construction period
Compared with traditional building structures, the construction speed of high-strength steel structures is much faster. During the construction of warehouses , steel structure components are prefabricated in factories and assembled on-site, significantly reducing on-site construction time and human resource input. This enables enterprises to put them into use more quickly, seize market opportunities, and realize commercial value ahead of schedule.
4.Good seismic and wind resistance performance
In the face of natural disasters such as earthquakes or strong winds, high-strength steel structure buildings demonstrate remarkable resilience. Its unique structural features can effectively disperse and withstand external force impacts, providing a strong guarantee for the safety of precious goods in the warehouse , reducing the possible losses caused by natural disasters, and enabling enterprises to be more composed when facing natural risks.
5.Long service life
The high-strength steel structure that has undergone professional anti-corrosion and fireproof treatment has an extremely long service life. Under normal usage conditions, there is no need for frequent replacement or maintenance, which reduces the maintenance costs and resource waste of enterprises and creates continuous and stable economic benefits for them.
Company Profile
Qingdao KXD Steel Structure Co.,Ltd has been an industry leader for prefabricated steel building with preeminence in custom designs and fabrication capabilities.With more than 30-year-limted warranty in steel building manufacturing and design,KXD's products have been exported to more than 80 countries with good quality and customer service.
Product Parameters
Design Parameters:
1) Live load on roof (KN/M2);
2) Wind speed (KM/H);
3) Snow load (KG/M2) - If Applicable;
4) Earthquake load - If Applicable;
5) Style of Doors and Windows;
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure;
7) Size: width X length X eave height, roof slope;
8) Or your idea!
But maybe you are unsure about what type or what needs you have regarding you're warehouse/workshop, or this project is your first one. Don't worry, we will teach you to choose the right style and the finest design within your budget.
How to build a steel building with KXD?
Each of KXD's steel building is custom-made to meet the needs of our customers with high performance, efficiency and international quality standards.
Factors affecting the price of steel structure building:
1. Steel raw material price
Fluctuations of steel raw material price have impact on the price of steel structure building. The big change in steel price will directly cause the overall price of steel structure building to change.
2. Load
Load includes wind load, snow load, dead load, and live load. The engineers calculate the steel structure Qty. based on the load. Large load, more steel structure will be used.
3. The span of the steel frame
Usually, the span of steel frame will controlled in 36m. The larger of the span, the greater the amount of steel structure per square meter. If the steel frame has a large span and no center pillar, the amount of steel used will increase.
4. Structure
If the building has glass curtain wall, crane or mezzanine floor, canopy, etc., to ensure the safe, steel structure will be increased.
If you are looking for a competitive price and good quality steel buildings manufacturer, please contact KXD for our advice.
| Component |
Specification |
| Main Steel Frame |
Column |
Q235, Q355 (Hot Rollled / Welded H Section Steel) |
| Beam |
Q235, Q355 (Hot Rollled / Welded H Section Steel) |
| Secondary Frame |
Purlin |
Q235, Q355 C and Z purlin |
| Knee brace |
Q235 Angle Steel |
| Tie Rod |
Q235 Circular Steel Pipe |
| Brace |
Q235 Round Bar |
| Vertical and Horizontal Support |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system |
Roof Panel |
Steel Sheet
Insulated Sandwich Panel (EPS /Glass-Fiber / Rock-Wool / Pu) |
| Wall Panel |
Steel Sheet
Insulated Sandwich Panel (EPS /Glass-Fiber / Rock-Wool / Pu)
Decorative Panel (Glass Curtain, Aluminmum Panel |
| Accessories |
Window |
Plastic steel / Aluminium Alloy / PVC Window |
| Door |
Sliding Door / Electric Rolling Up Shutte / Metal Door / Personal Door |
| Rain-spout |
PVC |
| Live load on Roof |
In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Temperature |
Suitable temperature.-50°C~+50°C |
| Certification |
CE, SGS,ISO9001:2008,ISO14001:2004 |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting / Epoxy painting / Hot Dipping Galvanized |
Packaging&Shipping
The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.

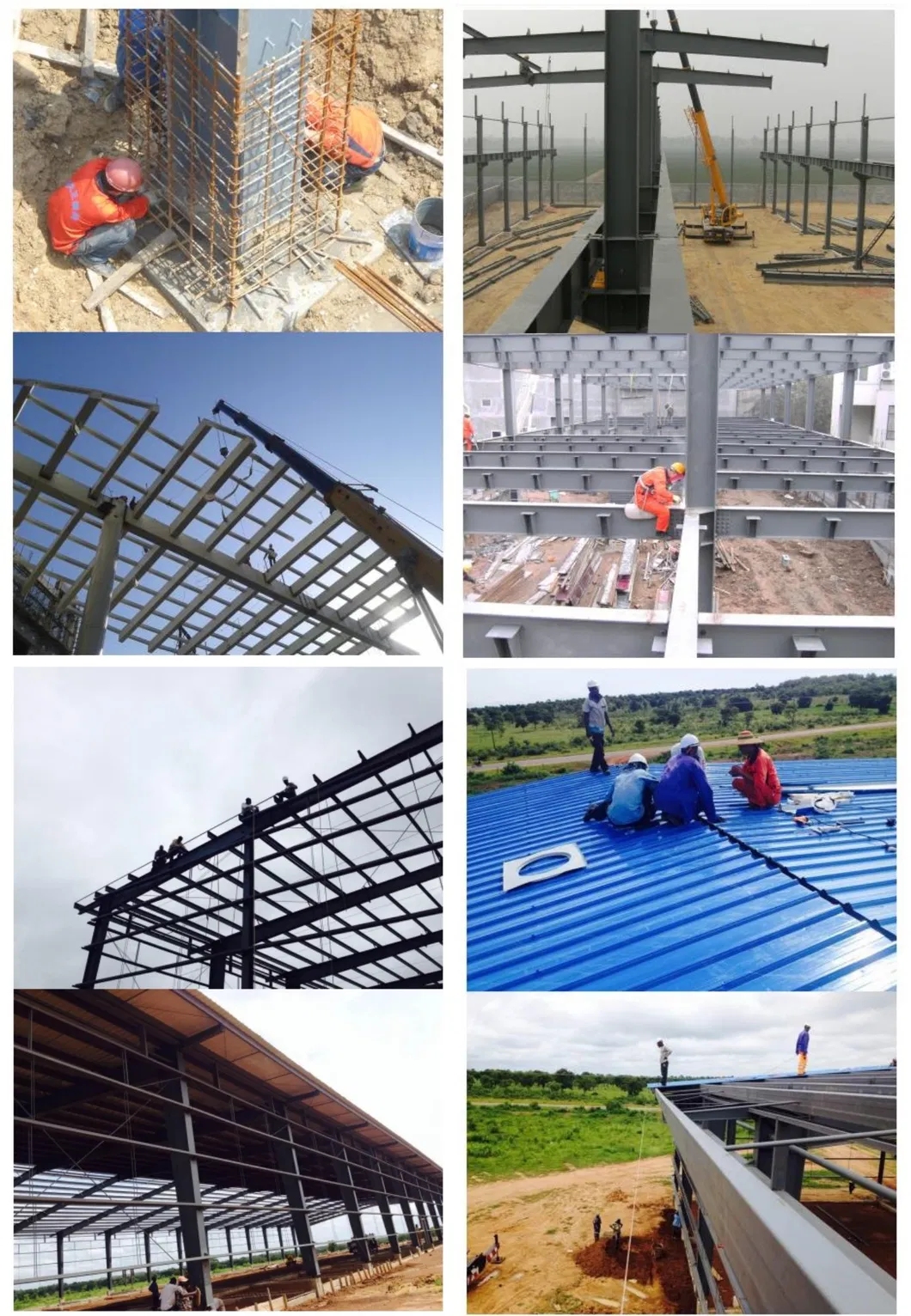

Erection
Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.
Welcome to visit us for further negotiate
Our service
We can offer one stop service for the customer from designing, manufacturing, to testing, installation. All the steel structure building can be fabricated customized according to customers' demand and will be professional advice according to our experience.

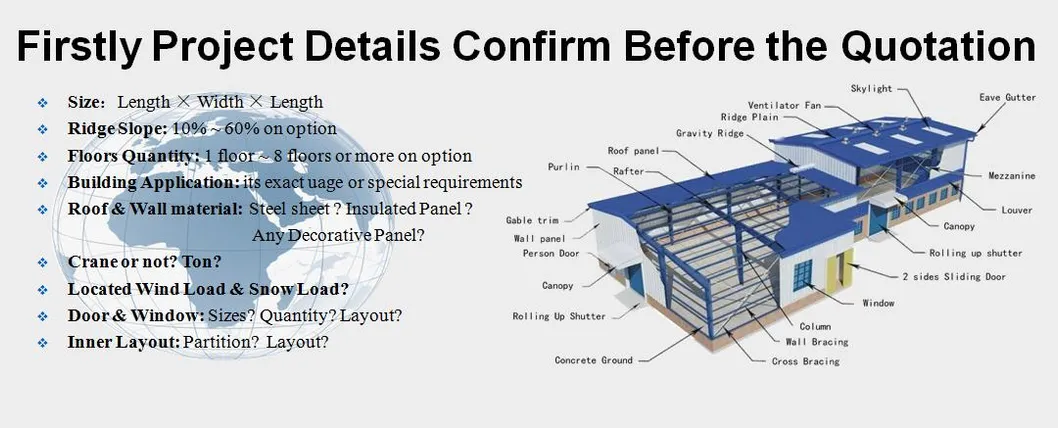

A. Customers have the drawings
We can provide you the full service of production, shipment and
Installation guide, which is high quality and low cost. Because we own all kinds of technical facilities, complete test instruments and advanced production processes.
B. No drawings
Our excellent design team will freely design the light steel structure warehouse for you. If you give us the following information, we will give you an satisfactory drawing.
1. Dimension: Length, width, ridge height, eave height, etc.
2. Doors and Windows: Dimension, quantity, installation position.
3. Local Climate: Wind load, snow load, roof load, Seismic load
4. Insulation materials: Insulated Sandwich panel or Single Steel Sheet
5. Crane beam: If you need it, it will be very helpful that you tell us its technological parameters.
6. Usage: If you tell us the application of light steel structure , we can exactly design the drawings or match suitable materials for you.
7. Other requirements: Such as fire proofing, transparent roof, etc. Please kindly inform us, too.
|
|
| Type of Building |
|
| Please state type of building: warehouse,supermarket,workshop,exhibition hall, hangar, farm, roof structure or other construction |
| Dimension |
a(width) |
b(length) |
h1(wall height) |
h2(total height) |
|
|
|
|
| Construction Site |
|
| Roofing and Walls |
(1) sandwich panel
(2) profile steel sheets
(3) steel sheet+glass wool blanket
(4) no walls-only roof with structures |
| Contact Name |
|
| Company Name |
|
| Phone Number |
|
| Email |
|
| Additional info |
|
| Send us sketches, drawings or the project, if you have |
If you are interested in our products,please feel free to contact with us.
