Dust-Proof Workshop, Electrostatic Workshop, Food And Chemical Industry, Heavy Industry, High-Voltage Power Plant, Research Facility, Specialized Workshop, Textile And Electronic Processing, Warehouse, Commercial Building, Shopping Mall
Installation
Techinical Guide or Turnkey Projects
Steel Material
GB/Anis/BS/DIN/Uni
Profiles
H / I / C / Z / U Sectional Steel
Structural Frame
Steel Column, Steel Beam, Steel Truss
Connection
High Strength Bolts
Bolts
Galvanized, Dacromat, Geomet
Coating
Alkyd / Epoxy /Hot-DIP Galvanize
Colors
Custom as Demands
Ventilation
Ridge Ventilator ; Ventilated Fan
Day Light Panel
High Quality Type
Roof / Wall Cladding
Optional (Steel Sheet or Insulated Sandwich Panel)
Insulation
EPS, Glasswool, Rockwool, PU
Crane
Optional (1t ~ 20t)
Door
Security Door, Rolling Shutter, Sliding Door
Decoration
Custom Available
Transport Package
Seaworthy Package
Specification
SGS / ISO/ BV
Trademark
KXD
Origin
China
HS Code
7308900000
Production Capacity
10000 Ton Per Month
Packaging & Delivery
Package Size
11900mm * 2300mm * 2500mm
Package Gross Weight
25000.000kg
Ⅰ. Technical Definition and Core Functions

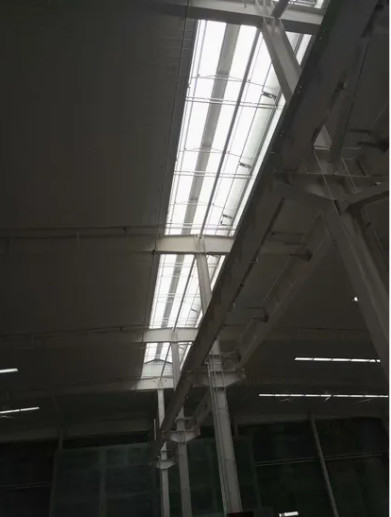

The Designed Roof Ventilator for Prefabricated Steel Structure Warehouse Workshop is a high-efficiency ventilation system integrated into the roof of prefabricated steel structure warehouses. Through aerodynamic design and modular prefabrication technology, it enables rapid exhaust of hot, humid air, dust, and harmful gases from the workshop.
Its core functions include:
1. Natural Ventilation Optimization
Leverages the thermal pressure effect (chimney effect) and wind pressure to achieve continuous air exchange without electrical power, reducing workshop energy consumption. This passive ventilation mechanism ensures sustainable airflow while minimizing operational costs.
2. Industrial Environment Adaptation
Specifically engineered for high-humidity, high-dust, and strong-odor environments in warehouses and processing workshops, it improves indoor air quality (IAQ) and safeguards operational safety by efficiently removing contaminants and maintaining optimal ventilation rates.
3. Structural Synergy Design
Fully integrated with the steel structure roof through modular prefabrication, it ensures compatibility with the main building’s waterproofing, wind resistance, and seismic performance. This seamless integration enhances overall structural integrity and durability.
Ⅱ. Key Points of Modular Design
Aerodynamic Structure
Streamlined Throat: Adopts a divergent design (expansion angle 15°–30°) to reduce airflow resistance and enhance ventilation efficiency.
Deflector System: Upward-inclined deflectors (angle 45°–60°) guide air flow upward for exhaust, preventing rainwater backflow while enhancing wind pressure utilization.
Prefabricated Installation
The main body of the ventilator is modularly assembled in the factory (including framework, deflectors, and waterproof base), requiring only bolted connections to the steel roof purlins on site, increasing installation efficiency by 60%.
Standardized interfaces adapt to different roof slopes (5°–30°) and can be integrated with roof components such as light strips and solar panels.
Safety-Enhanced Design
Wind Uplift Resistance Structure: Uses a dual fixation system of hidden clamps + penetrating bolts, with clamp spacing ≤300mm and bolt pull-out resistance ≥8kN.
Seismic Joints: Flexible connections (elastic gaskets) with the steel roof can withstand inter-story displacement of ±15mm, meeting the requirements of 8-degree seismic fortification.
Ⅲ. Application Scenarios and Selection Principles
(1) Typical Application Scenarios
Warehousing and Logistics Workshops
Scenario Needs: Poor air circulation in high-shelf storage areas, prone to dust and storage odors accumulation.
Solutions: Ventilators are evenly spaced along the roof ridge (spacing 6–9 meters), combined with low-level air inlets to form a "bottom-in, top-out" air circulation.
Mechanical Processing Workshops
Scenario Needs: Welding, cutting, and other processes generate oil fumes, metal dust, and heat.
Solutions: Concentrated installation of large-throat ventilators (throat ≥4 meters) above heat sources (e.g., directly above processing stations on the roof) to rapidly exhaust pollutants.
Food Cold-Chain Workshops
Scenario Needs: High humidity in cold storage and processing areas requires control of condensate and mold growth.
Solutions: Select anti-condensation ventilators (with built-in insulation layers, surface temperature ≥ dew point temperature), paired with humidity sensors to interlock and control auxiliary fans
