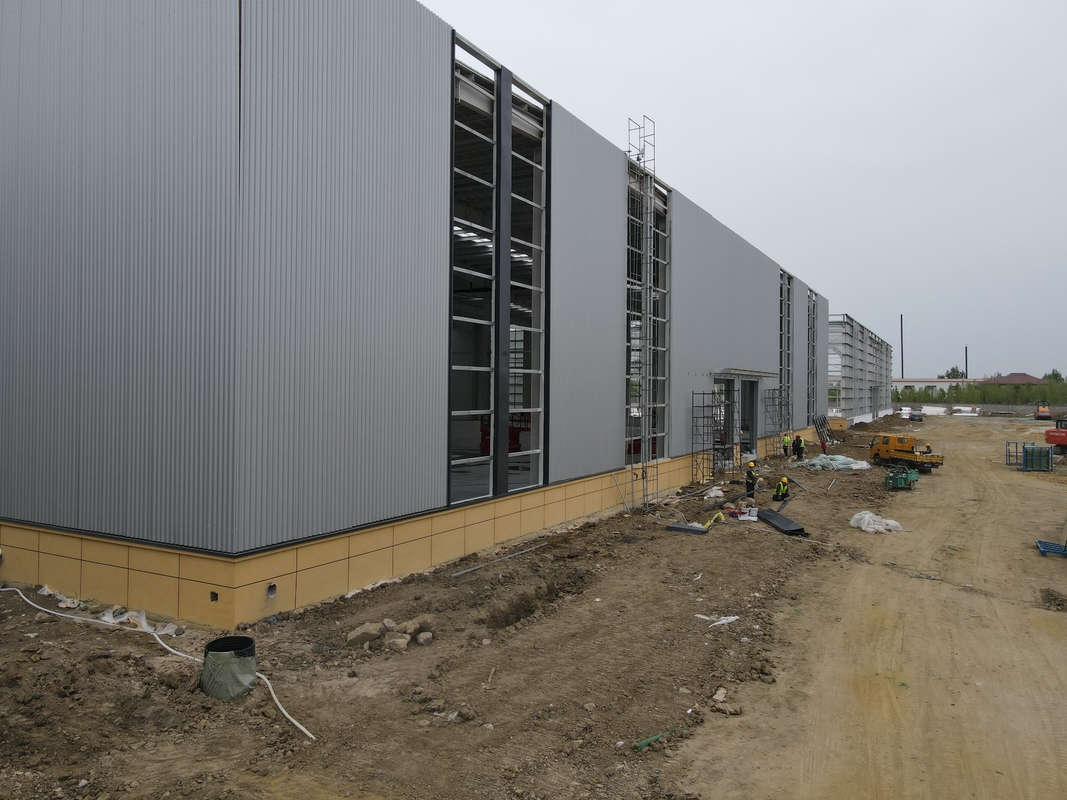

Fire Resistance Prefabricated Steel Structural Building For Steel Workshop

Product Description

It is a prefabricated steel structure building specially designed for steel processing workshops. This building uses high-strength steel as the main structural material. Most of the components are processed in the factory through the prefabrication production method, and then transported to the site for rapid assembly. The design of this building pays special attention to fire resistance performance and structural stability to meet the high requirements for safety and durability of steel processing workshops. The building is usually equipped with fireproof coatings, insulation materials, automatic sprinkler systems, etc. as fire protection measures. At the same time, it adopts seismic design and high-strength connection components to ensure stability and safety in harsh environments.

Performance Advantages

1. Enhanced Fire Resistance
- Fireproof Coating: The steel structure surface is coated with special fireproof paint, which can effectively slow down the temperature rise of the steel and extend the structural load-bearing capacity during a fire.
- Insulation Materials: Walls and roofs use insulation materials to reduce heat conduction and prevent the spread of fire.
- Automatic Sprinkler System: Equipped with an automatic sprinkler system, it can automatically activate in the early stage of a fire, effectively controlling the fire.
- Fireproof Zones: Fireproof partitions are created by using firewalls and fire doors to limit the scope of fire spread.
2. High structural stability
- High-strength steel: Utilizing high-strength steel to ensure the stability of the structure under heavy loads and harsh environments.
- Seismic design: Designed in accordance with seismic standards, capable of withstanding the impact of natural disasters such as earthquakes.
- High-strength fasteners: Employing high-strength bolts and welding techniques to ensure the firmness of structural connections.
- Large-span design: Capable of achieving large-span space without columns, meeting the needs of large equipment and operations in the workshop.

3. Rapid Construction and Efficient Production
- Prefabricated Production: Most components are prefabricated in the factory, and only assembly is required at the site, significantly shortening the construction period.
- Standardized Components: Adopting standardized designs makes installation and subsequent maintenance easier.
- Modular Design: The layout can be flexibly adjusted according to the requirements of the workshop, supporting future expansion.
4. Durability and Low Maintenance Costs
- Strong corrosion resistance: The steel surface has undergone anti-corrosion treatment, which can withstand moisture and chemical corrosion.
- Long service life: Under normal use and maintenance conditions, the service life of steel structure buildings can reach several decades.
- Low maintenance costs: The structure is simple and has few maintenance requirements, thereby reducing long-term operating costs.

5. Flexibility and Scalability
- Flexible layout: The internal space can be flexibly divided according to process requirements, supporting various equipment arrangements.
- Strong scalability: In the future, it can be expanded or renovated as the production scale increases.
6. Environmental Protection and Sustainability
- Recyclable Materials: Steel can be recycled, meeting environmental standards.
- Reduction of Construction Waste: Prefabrication reduces construction waste at the construction site.

Application fields
1. Steel processing workshop
- Rolling steel workshop: Used for storing and processing steel, such as hot rolling and cold rolling processes.
- Forging workshop: Provides a high-strength and high-temperature-resistant working environment for forging processes.
- Welding workshop: Meets the ventilation and fire prevention requirements for welding operations.
2. Mechanical Manufacturing Workshop
- Heavy Machinery Processing: Provides a stable operating environment for large-scale machinery processing equipment.
- Automobile Manufacturing: Used in the processing of automotive components and the assembly workshop of complete vehicles.

3. Metal Product Processing
- Metal Pressing Workshop: Provides a high-strength and low-vibration working environment for the pressing process.
- Metal Surface Treatment Workshop: Meets the fireproof and anti-corrosion requirements for processes such as acid washing and electroplating.
4. Logistics and Warehousing
- Steel Warehouse: Stores steel and metal products, ensuring fire safety.
- Logistics Distribution Center: Provides secure storage and operation space for logistics equipment and goods.

5. Public Facilities
- Municipal Engineering Workshop: Used for the maintenance and processing of municipal facilities, such as pipes and bridge components.
- Fire Station: Provides a safe and reliable storage space for fire vehicles and equipment.
6. Temporary Uses
- Temporary Processing Workshop: Provides temporary processing space at construction sites or on large project sites.
- Emergency Rescue Workshop: Offers temporary processing and repair space in case of natural disasters or emergencies.

Product Parameters

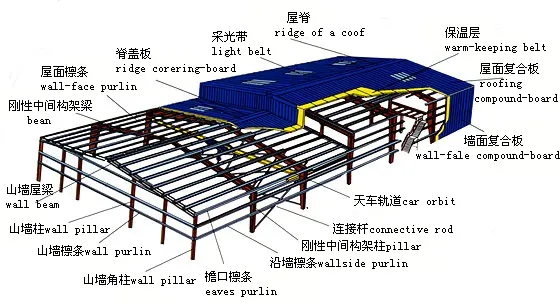

Light Steel Structure construction Prefabricated Workshop/warehouse

 We have pretty good preservative treatment on this steel frame as follows:
A. Clean the steel( reach to SA2.5 Grade, China Code), then we will spray paint: 2 layer epoxy zinc rich primer and 2 layer antirust paint( total thickness: 100-120um); Warranty period: 18-20 years under normal conditions.
B. Hot-dipped galvanized, when the thickness of parts is less than 5mm, thickness of hot-dipped gal is more than 65um; When equal to or more than 5mm, that is more than 86um. Warranty period: 45-50 years under normal conditions.

You can choose freely the roof and wall panel, included both types:
A. Heat-Insulating material( EPS, Glass wool, Rockwool, PU, etc. )
They have different thickness(50mm, 75mm, 100mm, 200mm), density, color, type, etc.
B. Single color corrugated steel sheet( Steel Material: Aluminum- Zinc sheet):
They have different thickness( 0.3-0.7mm), color, type, etc.
You can choose freely the material of door and windows
 We also have so many accessories, for example, steel bracket, bolts, self-drilling screw, rivet, rainspout, trimming sheet, glass cement, etc. You can buy them according to your exact requirement.

Company Profile

Qingdao KXD steel structure Co., Ltd, is a professional enterprise specializing in designing, developing, manufacturing, marketing and constructing high quality steel structures, prefabricated houses and container houses. We have professional steel structure engineering contracting first class qualification and ISO9001: 2000 quality system certification.

Our company was established in 1996. There are 1000 employees, including 5 registered engineers, 36 senior engineers and 120 professional technicians. Up to now, we have successfully undertaken and operated hundreds of international projects in more than 76 countries and regions around the world.
Our products are exported to North America, South America, Europe, Africa, Oceania and many Asian countries and regions. With the idea of "Credit builds brand", we have already established good relationships with many overseas clients.
Based on the spirit of "Credit, Professionalism, Cooperation, Mutual benefits", our company is building a comprehensive industrial chain system gradually and making great efforts to supply our quality products and perfect after-sales services to worldwide clients.

Packaging&Shipping

A. Customers have the drawings

We can provide you the full service of production, shipment and
Installation guide, which is high quality and low cost. Because we own all kinds of technical facilities, complete test instruments and advanced production processes.

B. No drawings

Our excellent design team will freely design the light steel structure workshop for you. If you give us the following information, we will give you an satisfactory drawing.
1. Dimension: Length, width, ridge height, eave height, etc.
2. Doors and Windows: Dimension, quantity, installation position.
3. Local Climate: Wind load, snow load, roof load, Seismic load
4. Insulation materials: Insulated Sandwich panel or Single Steel Sheet
5. Crane beam: If you need it, it will be very helpful that you tell us its technological parameters.
6. Usage: If you tell us the application of light steel structure , we can exactly design the drawings or match suitable materials for you.
7. Other requirements: Such as fire proofing, transparent roof, etc. Please kindly inform us, too.


If you are interested in our products,please feel free to contact with us.
