| Brand Name: | kxd |
| Model Number: | kxd-3647 |
| MOQ: | 50pieces |
| Price: | US$12.00-20.00 |
| Delivery Time: | two months |
| Payment Terms: | L/C,T/T |

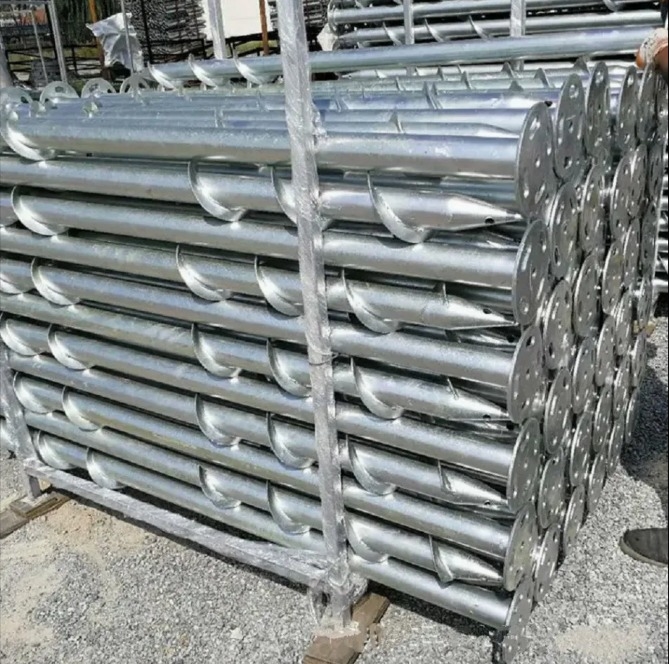

Ground Screw Ground Anchor Pile For Construction Foundation
Product description
The spiral ground pile is a pipe pile with welded and wound spiral blades on the surface of the metal pipe after hot forging, and the spiral ground is mainly composed of three parts: hot forging pipe body, spiral piece and connecting flange, and the spiral piece and flange are welded on the pipe body, and then the whole hot-dip galvanized treatment. The special screw pile tightening equipment is screwed into the ground to replace the original concrete foundation, and the load is connected at the top.
Specifications and parameters
| Ground Screw Type: | Adjustable Ground Screw,Flange Ground Screw,Non-flange Ground Screw,etc. |
| Material: | Hot Dipped Galvanized Q345/Q345B steel,Carbon Steel |
| Color: | Silver |
| Length: | 600mm,800mm,1000mm,1200mm,1600mm,1800mm,2000mm,2500mm,3500mm,or Customized |
| Pipe Thickness: | 2.5mm,2.75mm,3.0mm,3.25mm,3.5mm,4.0mm,or customized |
| Diameter: | 48mm,60mm,76mm,89mm,114mm,or customized |
| Flange Type: | D180×8mm,D200×8mm,D220×8mm,or Customized |
| Surface: | Hot dipped galvanized |
| Foundation: | Sandy,Loosening Soil,Tight Soil,etc. |
| Loading Port: | Qingdao Port or any port in China you need |
| Standard: | DIN EN ISO 1461 |
Product superiority
The screw pile is driven into the ground in a whirling way, so the soil is not easy to loosen, and the soil itself can be well used. Judging from the blade structure of the screw pile, it has good tensile and insertion grip.
As a new type of foundation technology, spiral ground pile has outstanding advantages such as convenient construction, short period, small impact by the construction environment, no damage to the local environment, and easy migration and recycling.
Compared to concrete formwork, steel bar bundling, and pouring. In the process of embedded anchor bar, maintenance, demoulding, foundation soil backfilling, etc., the spiral pile only needs to be positioned and driven, and the material and labor costs can be saved by 2/3.
It is very little affected by the environment and can be constructed in most climatic conditions, such as rain, snow, freezing and other weather.
Application Fields of Products
In construction projects, ground screw piles are widely used in mobile homes, retaining walls and foundation underpinnings, gradually replacing traditional concrete foundations. In addition, ground spiral piles are also used in photovoltaic power generation systems, as a support system to fix solar photovoltaic panels.
