Hot Dipped Galvanized Earth Screw Ground Helical Screw Pile Commercial

Hot Dipped Galvanized Earth Screw Ground Helical Screw Pile

Product description

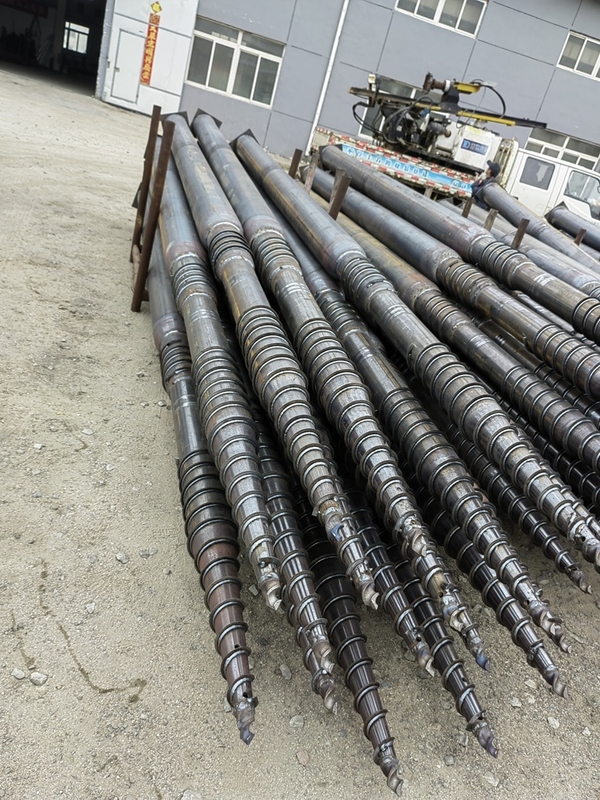

Ground screw - a kind of hot-forged metal pipe surface welded and wound spiral blade pipe pile, ground screw mainly consists of hot-forged pipe body, spiral piece, connecting flange three parts, spiral piece and flange welded on the pipe body, and then the overall hot-dip galvanizing treatment. The basic working principle is equivalent to the wood screw, which is screwed into the ground by a special ground screw tightening equipment to replace the original concrete foundation, and the top is connected to the load.

Specifications and parameters

The diameter of the ground screw pipe is generally 48mm, 68mm, 76mm, 89mmm, 102mm, 114mm, 140mm, 219mm, 299 and other categories, the ground screw can be processed to 6000mm according to the length of the need, and now the most commonly used is the diameter of 60mm, 68mm, 76mm, 89mm, 114mm, 140mm, the length from 580mm to 3000mm. The connecting disc is generally a circular flange with a diameter of 220mm, which needs to be determined according to the connection mode of the upper load.

Notes: Different materials and specifications can be customized according to your demands.

Product superiority

As a new type of foundation technology, it has the characteristics of simple installation, convenient installation, short construction period, low dependence on water resources, little impact by environmental changes, no damage to the natural soil environment, easy to recover and relocate, and gradually eliminate inefficient energy-consuming cement foundation.

Application Fields of Products

Now it has been widely used in railway guardrail foundation, wooden house villa foundation, bus shelter foundation, street lamp foundation, highway sign foundation, billboards, temporary venues, warehouses, school buildings and other independent buildings, signal sign foundation, municipal facilities, transportation facilities, power tower foundation, solar photovoltaic bracket system and other fields.
