| Brand Name: | KXD |
| Model Number: | KXD-SS78 |
| MOQ: | 500 sqm |
| Price: | USD 69-100 per sqm |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
Building material component list
| Anchor bolt | M20 |
| High streng bolt | M20, 10.9s |
| Shear nail | M16 |
| Common bolt | M20 |
| Brace | M12 |
| Tie rod | Ø12 |
| Column(Q345B) | Square tube250*250*10*10 Square tube250*250*5*5 |
| Roof beam(Q345B) | HN340X250X9X14 |
| Roof frame beam(Q345B) | HN294X200X8X12 |
| Floor main beam(Q345B) | HN294X200X8X12 |
| Floor secondary beam(Q345B) | HN244X175X7X11 |
| Staircases(Q235B) | H200X200X6X8+5mm chequered plate |
| Stair beam(Q235B) | H300X200X6X8 |
| Roof purlin | C140X60X20X3.0 |
| Connecting plate | 3~8mm |
| Roof tile | 75mm rock wool,color sheet both sides 0.426mm |
| Wall panel | 75mm rock wool,color sheet both sides 0.426mm |
| Floor deck |
1.0mm |
| Steel door |
900*2100 |
| Aluminum windows | 2000*1500 |
| Zinc steel handrails | Square tube80X40+40+30+20 |
| Trimming | 1.0mm galvanized sheet, color steel sheet |

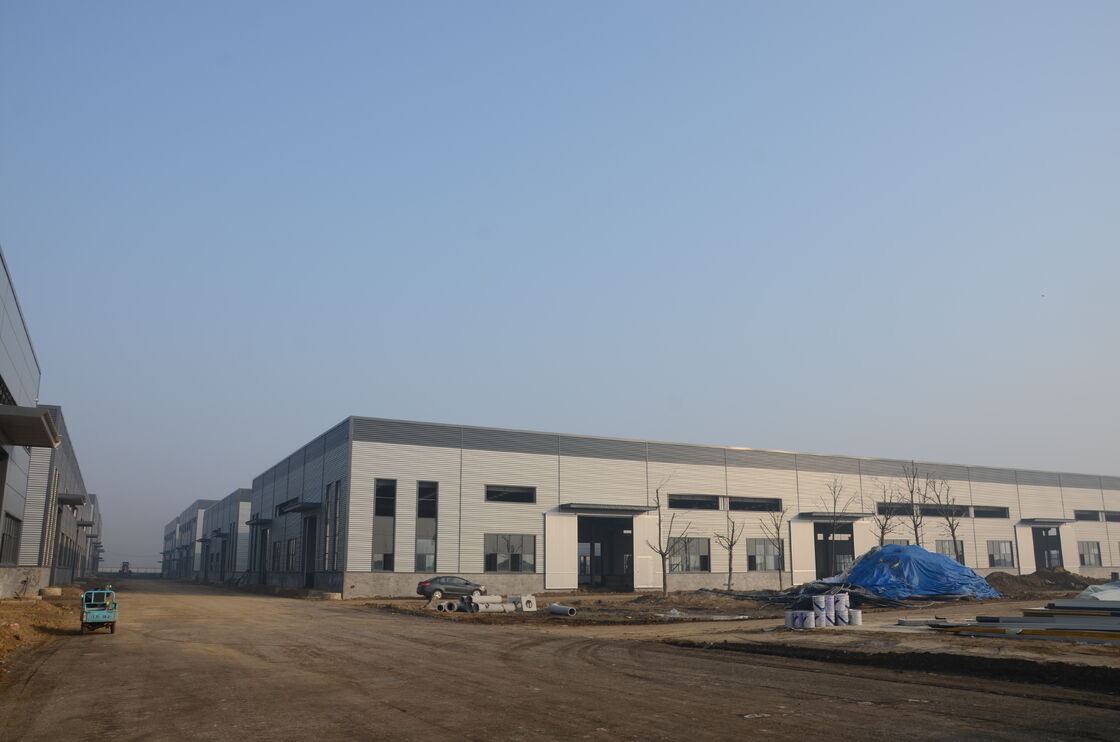

Steel structure workshop features
a.Low maintenance costs
b.Environmentally friendly, recycling.
c.Flexibility when fixing doors, windows and interior partitions
d.Steel structure construction is strong, durability and stability.
e.Steel components is resistant to termites and other destructive insects.
f.Long service life for more than 50 years
g.Fast construction ,easy installation and convenient to transport.
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops,
and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
