| Brand Name: | KXD |
| Model Number: | KXDLSB01 |
| MOQ: | 100sqm |
| Price: | 250usd-350usd per sqm |
| Delivery Time: | 1 month |
| Payment Terms: | L/C,T/T |

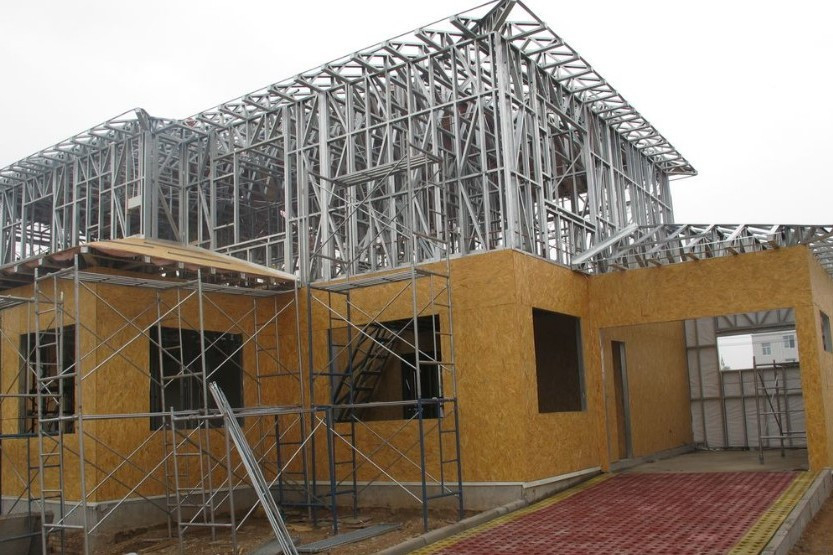

Prefabricated Sustainable Luxury Light Steel Structure Villa House
Light steel structure buildings, particularly light steel villas, represent an innovative construction approach that combines durability, sustainability and design flexibility. This construction method uses cold-formed steel sections as the primary structural components, offering numerous advantages over traditional building techniques.
Technical Specifications of Light Steel Structures
Material Composition
Galvanized Steel: G550 grade with zinc coating (275g/m²) for corrosion resistance
Structural Components: C-shaped studs (typically 89mm-140mm depth), U-tracks, and custom profiles
Wall Thickness: 100-200mm for exterior walls
Load Capacity: Can withstand wind speeds up to 220km/h and seismic activity up to 9.0 magnitude
Standard Dimensions
Story Height: Typically 2-3 stories (maximum 6 stories for residential)
Module Width: Standard 3.6m or customizable up to 12m spans
Roof Pitch: 15°-30° for optimal performance
