Fast Install Modular Container Light Prefabricated Dormitory Container Houses

Product Details

Place of Origin: Qingdao，China

Brand Name: KXD

Certification: CE, ISO, SGS, BV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: US$1,300.00-2,600.00

Packaging Details: Package Size 12000.00mm * 2300.00mm * 2300.00mm

Delivery Time: 35 Days

Payment Terms: T/T,L/C

Supply Ability: 400 Sets Per Month

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      prefabricated modular container, prefabricated modular steel container, q235 modular container


Steel Type:	Q235	After-sales Service:	2 Years Limited Warranty
Service:	Design,Product,Transportation,Erection,Production Maintenace,Water And Electricity Commissioning	Usage:	Dormitory Houses,Mining Camp,Temporary Shop,Cafe Shop,Vacation House,Disaster Shelter,Military Camp
Energy Efficiency:	High	Installation Time:	Short

Steel Type:	Q235
After-sales Service:	2 Years Limited Warranty
Service:	Design,Product,Transportation,Erection,Production Maintenace,Water And Electricity Commissioning
Usage:	Dormitory Houses,Mining Camp,Temporary Shop,Cafe Shop,Vacation House,Disaster Shelter,Military Camp
Energy Efficiency:	High
Installation Time:	Short

Description

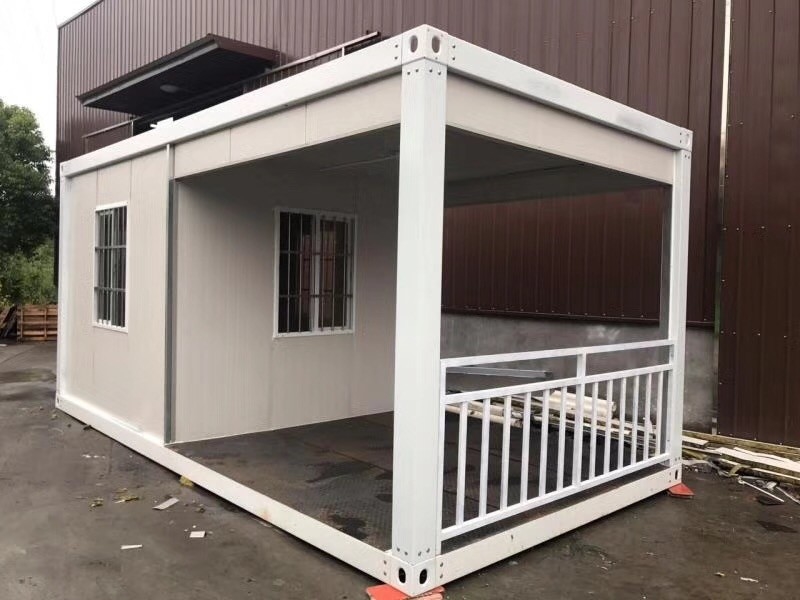

Fast Install Modular Container Light Prefabricated Dormitory Container Houses

Fast Install Modular Container Light Prefabricated Dormitory Container Houses

Basic Info.

Model No.	KXD-S0343	Hs Code	9406900090
Floor Material	Rockwook Panel+Cement Board Floor	Trademark	KXD Steel Structure
Steel Type	Q235,Q355	Forming	Cold Bending
Connection	High Strength Bolts	Insulation Material	EPS, Glasswool, Rockwool, PU
Colors	Optional	Door	Swing Door(Single Door,Double Door)
Roof/Wall	Optional(Steel Sheet Or Insulated Sandwich Panel)	Anti-Corrosion	Alkyd / Epoxy Painting; Hot-DIP Galvanize
Usage	Villa, Dormitories, Temporary Offices,Mining Camp,Vacation House	Certification	ISO,CE
Window	Plastic Steel Window,Aluminum Alloy Window	Production Capacity	400 Sets Per Month

Product Description

Light steel structure container labor housing is a type of temporary or permanent accommodation for laborers that uses light steel structures as the main framework and combines the structural form and transportation convenience of containers. It is typically constructed from factory-prepared components and assembled quickly on-site, meeting the basic living needs of labor housing while adapting to various usage scenarios and site conditions.

Fast Install Modular Container Light Prefabricated Dormitory Container Houses 0

Performance Advantages

1.Fast construction speed: Components are prefabricated in factories, and only simple assembly work is required on-site, significantly shortening the construction period and enabling the provision of housing for laborers in a short time to meet urgent project demands.
2.High mobility: It retains the transportation convenience of containers and can be easily hoisted, transported, and relocated as a whole, making it suitable for use in different construction sites or projects and avoiding resource waste caused by repeated construction.
3.High space utilization: The walls of the light steel structure are relatively thin, effectively increasing the actual usable area of the interior compared to traditional brick-concrete structures, providing laborers with more spacious living spaces. Fast Install Modular Container Light Prefabricated Dormitory Container Houses 1

4.Good seismic performance: The light steel structure materials have good ductility, can effectively dissipate seismic energy, and have good structural integrity and superior seismic performance, ensuring the safety of laborers during earthquakes and other natural disasters.

5.Environmentally friendly and energy-saving: Steel can be 100% recycled and reused, and other supporting materials such as insulation materials also have high recycling rates, meeting environmental protection and sustainable development requirements. At the same time, combined with efficient insulation and heat insulation design, energy consumption can be reduced and energy waste minimized.

6. High cost-effectiveness: Factory prefabricated components can achieve large-scale production, reducing production costs; on-site assembly construction reduces labor input and construction time, lowering labor and management costs; the recyclability of materials also reduces the costs of later demolition and disposal.

Fast Install Modular Container Light Prefabricated Dormitory Container Houses 4

7.Good living comfort: Through reasonable architectural design and material selection, the indoor environment can be effectively improved, such as using soundproofing, heat insulation, and thermal insulation materials to enhance living comfort; at the same time, personalized decoration can be carried out according to needs to meet the living requirements of different laborers.

8.High safety: The main structure of the light steel structure container housing has high strength, can withstand large loads and wind pressure, and has good wind resistance, snow resistance, and other performance, effectively resisting the influence of adverse weather conditions; at the same time, its fire resistance and corrosion resistance can also be guaranteed through corresponding technical measures.

9.Long service life: Under normal use and maintenance, the main structure of the light steel structure container housing can have a service life of over 50 years, far exceeding the service life of traditional temporary buildings, and has high cost-effectiveness. Fast Install Modular Container Light Prefabricated Dormitory Container Houses 7

Fast Install Modular Container Light Prefabricated Dormitory Container Houses 7

Production Parameters

You can get our container house with a variety of steel structural combination schemes. We are familiar with the overall needs of customers, our team can always find the best solution for customers. Our products have flexible design and easier assembling methods, suitable for different countries and regions of the project needs. Please visit details to learn more information.

Detachable Container House (20 feet container)
Single Unit Detail	Length	5950mm
	Width	3000mm
	Height	2800mm
	Weight	1300kg
Roof Live Load	0.5KN/m²
Wind-Resisitance	0.6KN/m²
Seismic Resistance	8 Grade
Fire-proof Grade	A
Service Life time	10-15 years
Installation Time	4 labors with 3 hours for 1 unit house
Max Floors	3
Loading	20' Container (7 units house)	40' HQ container (17 units house)

Flat Pack Container House (20 feet container)
Single Unit Detail	Length	6058mm
	Width	2438mm
	Height	2896mm
	Weight	2145kg
Roof Live Load	0.5KN/m²
Wind-Resisitance	0.6KN/m²
Seismic Resistance	8 Grade
Fire-proof Grade	A
Service Life time	15-20 years
Installation Time	4 labors with 2 hours for 1 unit house
Max Floors	3
Loading	20' Container (3 units house)	40' HQ container (7 units house)

About the frame connection, detachable container use screws to connect the column and the top/bottom beams. Flat pack container connects the column and the top/bottom beams by welding. So production time of flat pack container is longer than that of detachable container. Relatively speaking, flat pack containers' on-site installation is faster and easier.
Although now detachable contaiber house has good performance, flat pack container house has better performance because it uses a combination of frame + columns.
Combining many advantages of detachable containers house and general containers, flat pack containers have good performance in transport and installation. Further there is little loss after repeated disassembly and transfer. However, the shipping volume of the flat pack container house is still larger. So its sea freight cost is higher. With the product own price, please choose the type as your actual.
Fast Install Modular Container Light Prefabricated Dormitory Container Houses 8

Fast Install Modular Container Light Prefabricated Dormitory Container Houses 10

Item	Sort	Name	Specification and parameter
1	product model	standard intensity	standard product, the dimension can be designed by the customers' requirement
2	product model	removable performance	the house are divided into components in transportation and builded into a whole hoisted house
3	specification	length	6058mm and 12058mm
4		width	2438mm
5		height	2591mm
6		clear height indoor	2400mm
7	standard component	ground beam	3mm galvanized
8		roof beam	3mm galvanized
9		central column	4mm galvanized
10		column on the corner	4mm galvanized
11		wall panel	75mm double-faced coloured steel EPS sandwich board
12		roof panel	75mm double-faced coloured steel PU sandwich board
13		secondary beam	Z-shaped galvanized steel iron
14		roof insulation	75mm polyurethane
15		Floor panel	18mm plywood panel+12mm laminated floor or 20mm cement-fiber +2mm PVC
16		door	Steel Security door, 740mmx1950mm
17		window	PVC Sliding window with Rolling shutter, 1100mmx800mm
18		electronics, water supply and drainage	the plan, design and construction can be provided according to the related law of the country
19		furniture and appliance	Customized-made
20	designing parameter	roof load	0.5KN/sqm(If the criteria were exceeded, it can also load by reinforcing the structure)
21		wind pressure load parameter	designing wind speed 210km/h (Chinese standard)
22		seismic fortification intensity	magnitudes 8
23		suitable temperature	suitable temperature scope. -50° C~+50° C
24	construction	construction tools	convenient construction, the tools are spanner, bolt driver and so on
25	construction	construction efficiency	4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet
26	transportation	container trunk	container with 12 meters can load 8 houses with the dimension of 20 feet

Because it is just like container of its size, shape, the container house could be moved more easily, so that we could save so much time, fees, etc.

We could design and manufacture special type, but it's better that you offer us your drawing, so that we could offer you budget accordingly.
For material, we could follow your opinion, but the main material is galvanized steel, EPS, rock wool sandwich panel or glass fiber sandwich panel for insulation. For size, it is also more flexible, smaller or bigger than standard container more or less.
Assembled and welding type both are good, but assmbled type could save more transportation fees.

Company profile

Detailed Photos Fast Install Modular Container Light Prefabricated Dormitory Container Houses 12

Packaging&Shipping

The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.

Fast Install Modular Container Light Prefabricated Dormitory Container Houses 16

Erection
Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.

Fast Install Modular Container Light Prefabricated Dormitory Container Houses 18

Welcome To Visit US For More Negotiations

After Sales Service

1.Quality Warranty: Usually, a warranty period of 1 to 2 years is provided. During the warranty period, quality guarantees are given to key parts of the house such as the steel structure main body, waterproofing, anti-corrosion, and fire prevention.

2.Technical Support: The supplier will provide online technical support to answer any questions customers encounter during use, such as the repair and replacement methods of house components.

3.Installation and Training Services: Free installation guidance services are provided, and on-site training is conducted for customers or users to familiarize them with the structure, performance and daily maintenance methods of the house.

4.After-sales follow-up: Regularly conduct after-sales follow-up visits to customers to understand the usage of the house and promptly identify and resolve any potential quality or usage issues.

5. Accessories Supply: We have a long-term supply of various accessories for houses, such as doors and Windows, locks, water and electricity equipment, etc., to facilitate customers' maintenance or replacement when needed.
