| Component |
Specification |
| Main Steel Frame |
Column |
Q235, Q355 (Hot Rollled / Welded H Section Steel) |
| Beam |
Q235, Q355 (Hot Rollled / Welded H Section Steel) |
| Secondary Frame |
Purlin |
Q235, Q355 C and Z purlin |
| Knee brace |
Q235 Angle Steel |
| Tie Rod |
Q235 Circular Steel Pipe |
| Brace |
Q235 Round Bar |
| Vertical and Horizontal Support |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system |
Roof Panel |
Steel Sheet
Insulated Sandwich Panel (EPS /Glass-Fiber / Rock-Wool / Pu) |
| Wall Panel |
Steel Sheet
Insulated Sandwich Panel (EPS /Glass-Fiber / Rock-Wool / Pu)
Decorative Panel (Glass Curtain, Aluminmum Panel |
| Accessories |
Window |
Plastic steel / Aluminium Alloy / PVC Window |
| Door |
Sliding Door / Electric Rolling Up Shutte / Metal Door / Personal Door |
| Rain-spout |
PVC |
| Live load on Roof |
In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Temperature |
Suitable temperature.-50°C~+50°C |
| Certification |
CE, SGS,ISO9001:2008,ISO14001:2004 |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting / Epoxy painting / Hot Dipping Galvanized |
Product description
Type
Single-Storey Warehouse
Installation
Techinical Guide or Turnkey Projects
Steel Material
GB/Anis/BS/DIN/Uni
Profiles
H / I / C / Z / U Sectional Steel
Structural Frame
Steel Column, Steel Beam, Steel Truss
Connection
High Strength Bolts
Bolts
Galvanized, Dacromat, Geomet
Coating
Alkyd / Epoxy /Hot-DIP Galvanize
Ventilation
Ridge Ventilator ; Ventilated Fan
Day Light Panel
High Quality Type
Roof / Wall Cladding
Optional (Steel Sheet or Insulated Sandwich Panel)
Insulation
EPS, Glasswool, Rockwool, PU
Crane
Optional (1t ~ 20t)
Door
Security Door, Rolling Shutter, Sliding Door
Decoration
Custom Available
Transport Package
Seaworthy Package
Specification
SGS / ISO/ BV
Production Capacity
10000 Ton Per Month

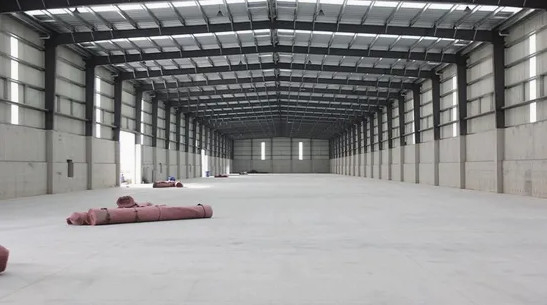

- High Strength and Stability: Steel structure offers superior load-bearing capacity for heavy goods and dense shelving, with excellent resistance to wind and seismic forces.
- Efficient Space Utilization: Large-span design minimizes columns, creating open interiors for forklift operations and automated equipment deployment.
- Rapid Construction: Prefabricated modular components enable fast on-site assembly, significantly reducing construction time.
- Flexible Expansion: The frame is easily modified for vertical (additional floors) or horizontal expansion, adapting to changing warehouse scales.
- Durability and Environmental Friendliness: Anti-corrosion treatments extend service life, while recyclable materials align with green building principles.
- Logistics Warehousing: Suitable for e-commerce fulfillment centers, cold chain logistics, and cross-border bonded warehouses, meeting storage and sorting needs.
- Industrial Storage: Used as raw material or finished product warehouses for manufacturing enterprises, supporting heavy equipment and bulk cargo.
- Commercial and Public Sectors: Functions as temporary storage for exhibitions or emergency supply hubs, featuring quick setup and disassembly capabilities.
Classic case
This year, Sri Lankan clients visited our factory and ordered two warehouses. From May 29 to 31, they inspected KXD's manufacturing capabilities,
praised our steel structure welding, and specified coating requirements. We discussed upcoming projects and signed a contract. Additionally, KXD
and IBSF signed an exclusive distributorship agreement, making IBSF our Sri Lankan agent. Together, we aim to take on more projects in the country.
Steel structure commercail building-Uruguay Audi Showroom Construction.
Size:L85M*W40.8M*8.8M
Uruguay project is with the total area up to 3485sqm with the 50.42m span,eave height being 8.8. The steel amount is 254.2 ton and the feature of this building is curtain wall type.
It provides the service of "overseas installation team + localized guidance". For example, in African countries, it can cooperate with local
workers to complete the assembly (the construction period is 50% shorter than that of traditional buildings).
We will provide the most comprehensive services to ensure your satisfaction.
| Pre-Sales Service |
|
| Research and Positioning |
1.Type and Core of Needs |
| |
|
2.Regional Objective Conditions: Climate, Land, Regulations |
| |
| Solution Development and Technical Communication |
1.Structure + Function |
| 2.Understand Types |
| |
| Compliance + Qualification Audit |
1.Material and Qualification Compliance |
| 2.Localized Standard Adaptation |
| |
| Quotation and Business Support |
1.Transparent Quotation List |
| 2.Customized Business Solutions |
| In-Sales Service |
| Quality Control & Compliance Management |
1.Full - process Quality Inspection System |
| 2.Export Compliance Documentation Preparation |
| |
| Logistics Solution Design & Execution |
1.Optimized Container Transport Selection |
| 2.Packaging & Protection Standards |
| |
| Documentation Management and Customs Clearance Support |
1.Letter of Credit (L/C) Document Handling |
| 2.Destination Customs Clearance Assistance |
| |
| Customer Communication and Progress Synchronization |
1.Visualized Progress Reports |
| 2.Emergency Response to Unforeseen Issues |
| After-Sales Service |
|
| Installation and Commissioning Support |
1.On-site Technical Guidance |
| 2.Equipment Commissioning and Acceptance |
| |
| Warranty and Maintenance Service |
1.Warranty Commitment and Response |
| 2.Remote Diagnosis and Repair |
| |
| Spare Parts Supply and Upgrade Service |
1.Global Spare Parts Warehouse Support |
| 2.Functional Upgrade Solutions |
| |
| Customer Relationship Management |
1.Regular Follow-ups and Feedback |
| 2.Complaint Handling and Crisis Response |
If you would like to learn more details, please feel free to contact us at any time.
