Product Description
Prefabricated steel structure folding container houses are prefabricated with steel structure frames and foldable container modules, and can be quickly assembled on site. They are environmentally friendly temporary or permanent buildings with the characteristics of convenience, flexibility and stability.

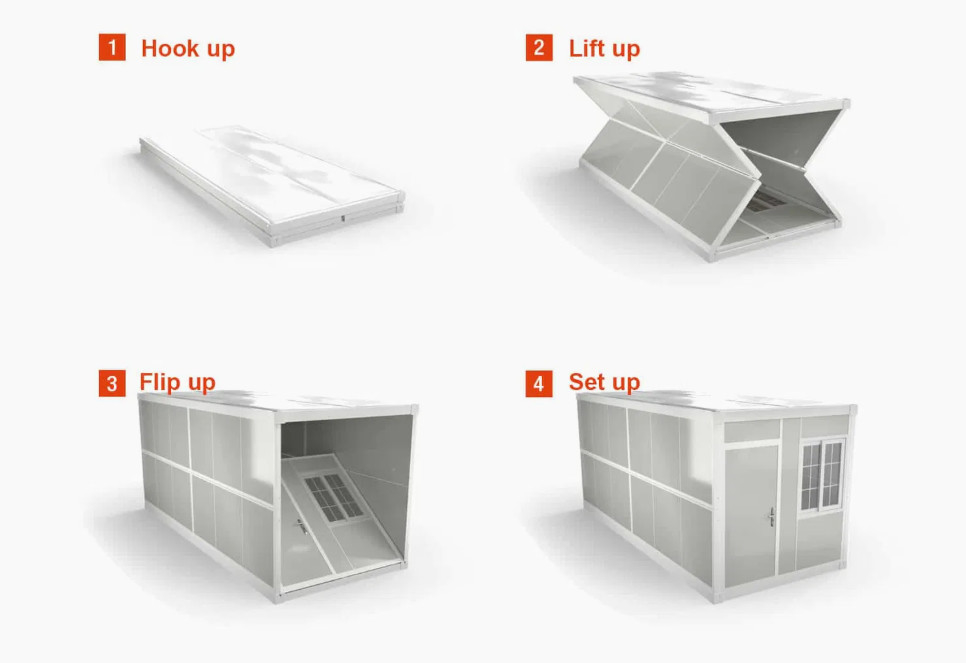

1.In the folded state, the volume is significantly reduced, saving storage and transportation space and greatly lowering related costs.
When needed, it can be quickly expanded without complex procedures. In just a few minutes, it can be transformed into a comfortable and practical house. Whether it is for temporary accommodation or emergency office work, it can quickly meet the needs and give users a head start.
2.The application scenarios are extremely extensive.
In the field of construction, it is a warm dormitory for construction site workers and a temporary office for construction projects. In the face of natural disasters, they can rush to the disaster-stricken areas at the first moment, provide temporary homes for the affected people and ensure their basic living standards. In business activities, it can be transformed into a market stall or a mobile store, helping merchants operate flexibly in different locations and attract customers. When engaging in outdoor leisure travel, it can also serve as a distinctive accommodation for campsites and a convenient facility for scenic spots, bringing novel experiences to tourists.
3.In terms of quality and performance, folding container houses are no less impressive.
The main body is made of high-quality steel, which is sturdy and durable and can withstand various harsh environments. The internal thermal insulation materials and good sealing design keep the indoor temperature constant and comfortable throughout the four seasons, and resist the invasion of wind and rain. It has outstanding waterproof and moisture-proof performance, ensuring a dry indoor environment and extending its service life.
4.The economic cost advantage is obvious.
The purchase price is affordable and it saves a large amount of expenses compared with traditional buildings. The transportation cost is reduced due to the folding advantage. The maintenance and energy consumption costs during the usage process are also at a relatively low level. In the long run, it saves users a significant amount of money.
5.Personalized customization services meet diverse needs. You can freely choose colors, sizes, layouts and functions to create your own exclusive space. Meanwhile, it adheres to the concept of environmental protection, with recyclable and reusable materials, which conforms to the trend of sustainable development and reduces environmental pollution.
Prefabricated container houses are generally made into six sided boxes constructed in a factory, then delivered to site and using a crane, the modules are set onto the building's foundation and joined together to make a single building.

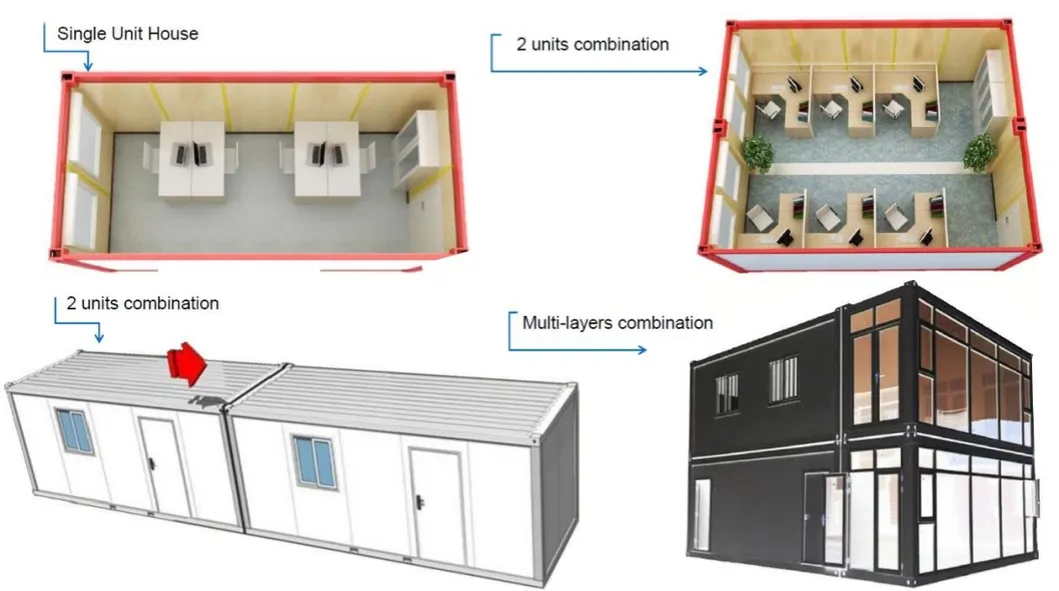

The container modules can be placed side-by-side, end-to-end, or stacked, allowing a wide variety of configurations and styles in the building layout which lead to multi-bay or multi-story solution.
You can get our container house with a variety of steel structural combination schemes. We are familiar with the overall needs of customers, our team can always find the best solution for customers. Our products have flexible design and easier assembling methods, suitable for different countries and regions of the project needs. Please visit details to learn more information.
Product Paramaters
| Folding Container House |
| Packing capacity |
Qty |
Unit |
|
|
| 40HQ/10sets |
10 |
set |
|
|
| Dimension |
| External dimension (mm) |
5800 L * 2500 W * 2560H |
| Internal dimension (mm) |
5660 L * 2360 W * 2350H |
| Folding state (mm) |
5800 L * 2500 W * 430H |
| Total mass (kg) |
1300 |
| Standard Design Parameter |
| No. |
Item |
value |
| 1 |
Roof load |
>=0.5KN/m2 |
| 2 |
Flooring Load |
>=2.0KN/m2 |
| 6 |
Fire-proof level |
A Level |
| 8 |
Seismic grade |
8 Grade |
| 9 |
Windproof level |
10 Level |
| Main material of Prefab House |
| No. |
Component |
Materials |
Thick(mm) |
| Steel Structure |
| 1 |
Hanging head |
200*80mm,Cast steel connecting piece |
15 |
| 2 |
Column |
150*150mm, Special-shaped galvanized steel tube |
1.5 |
| 3 |
Bottom girder |
H:270mm,Special-shaped galvanized steel |
2.5 |
| 4 |
Top girder |
H:170mm,Special-shaped galvanized steel |
1.5 |
| 5 |
Hinge |
85*115 mm,Galvanized 304 stainless steel |
5 |
| Wall Panel & Roof Tile |
| Roof |
External roof |
Corrugated steel plate |
0.5 |
| Interior roof |
Ceiling tile 0.35mm ,
glass wool 75mm |
|
| Floor |
Floor |
MGO board,density≥1.3g/cm³ |
15.0 |
| Wall |
Interior wall panels |
Galvanized color steel plate |
0.3 |
| External wall panels |
Galvanized color steel plate |
0.3 |
| Wall Panel |
Fireproof rock wool board |
50.0 |
| Window & Door&Floor |
| 1 |
Door |
High quality security door |
860*1998 |
| 2 |
Window |
Aluminum alloy window |
950*1200×2 |
| Electrical system |
| Voltage |
220V~250V |
| Wire |
The total power cord for entry is 6.0 square meters, the air conditioning cable is 4.0 square meters, the socket cable is 2.5 square meters, and the lighting switch cable is 1.5 square meters |
| Circuit breaker |
high score break miniature circuit breaker |
| Lighting |
1 set of single LED fluorescent lamps,36w |
| Sockets |
socket, 3 pcs |
Company profile
Our company offers you various kinds of steel constructions, which would meet all your requirements. Our company are professionally engaged in steel structure design,manutacture and installation. Our specialists have extensive experience in working with different type constructions. Steel constructions are manufactured by using drawing tools, in accordance with customers' all requirements and quality standards.
Our aim is highest quality, competitive price, and best service to satisfy our customers, we will always keep on creating and innovation, build a best credibility and highest reputation company in the world.
Packaging&Shipping
The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.
Erection
Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.
Welcome to visit us for more negotiations
After Sales Service
1.Quality Warranty: Usually, a warranty period of 1 to 2 years is provided. During the warranty period, quality guarantees are given to key parts of the house such as the steel structure main body, waterproofing, anti-corrosion, and fire prevention.
2.Technical Support: The supplier will provide online technical support to answer any questions customers encounter during use, such as the repair and replacement methods of house components.
3.Installation and Training Services: Free installation guidance services are provided, and on-site training is conducted for customers or users to familiarize them with the structure, performance and daily maintenance methods of the house.
4.After-sales follow-up: Regularly conduct after-sales follow-up visits to customers to understand the usage of the house and promptly identify and resolve any potential quality or usage issues.
5. Accessories Supply: We have a long-term supply of various accessories for houses, such as doors and Windows, locks, water and electricity equipment, etc., to facilitate customers' maintenance or replacement when needed.
If you are interested in our products,please contact with us.
