Prefabricated Multi Story Steel Structure Residential Building Q235B

Name: Prefabricated Multi Story Steel Structure Residential Building Q235B
Brand: Qingdao KXD Steel Structure Co., Ltd
SKU: KXD-015
Price: 1,350.00 USD
Availability: InStock

Product Details

Place of Origin: Qingdao，China

Brand Name: KXD

Certification: SGS ISO

Model Number: KXD-015

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: US$1200.00-1500.00

Packaging Details: Seaworthy Package

Delivery Time: two months

Payment Terms: T/T,L/C

Supply Ability: 600sets /Month

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Prefabricated steel structure residential building, Multi Story steel structure residential building, Q235B modular house building


Carbon Structural Steel:	Q235B	Door:	Roll Door
Forming:	Hot-Rolled Steel	Member:	Steel Column
Size:	According To The Need Of Design	Connect Method:	Welding Or Bolt
HS Code:	9406000090

Carbon Structural Steel:	Q235B
Door:	Roll Door
Forming:	Hot-Rolled Steel
Member:	Steel Column
Size:	According To The Need Of Design
Connect Method:	Welding Or Bolt
HS Code:	9406000090

Description

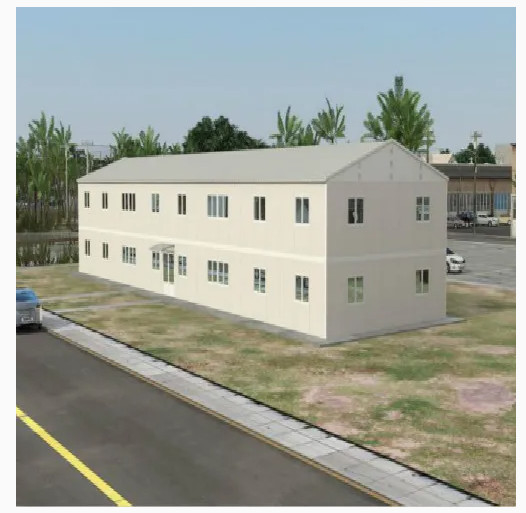

Prefabricated Multi Story Steel Structure Residential Building Q235B

Product Description

Prefabricated Multi-Story Steel Framed Structure Residential Building

Prefabricated containerized apartment for residential application

Specifications
1. Easy to assemble and disassemble
2. Strong steel frame
3. Rolling steel door or garage door
4. ISO certificate
Brief introduction of our products:
Our series is characterized by its unique design and elegant, stylish outer appearance.
Its high strength, high durability, anti-UV capability, and high temperature resistance make it
Excel among its counterparts in the industry.

Roof and Wall materials:

Color steel plate/color steel sandwich panel/polycarbonate sheet
---color steel plate: 0.3mm-0.6mm thickness
---color steel sandwich panel: EPS, /Glasswool/Rockwool/PU with the thickness of 50, 75, 100mm
---polycarbonate sheet: Common thickness is 8mm

Size: As your demand or we can offer you professional suggestions.

Quality:
Quality control standard: ISO9001: 2000
15 years lifetime warranty

Product Features:
1 hot-dip galvanized seamless steel structure
2 no fade anti-aging restless
3 easy to assemble and install
4 solid structures with no welding
5 no fracture and damage
6 anti-theft screws make our products stronger
7 convenient fitting replacements
8 art designs, appearance is noble
9 colorful surface, aim to meet your special needs
10 free maintenance, save your time

Size	MOQ is one set, length X width X eave height, roof slope
Column and beam	Materials of galvanized steel Q345 or Q235, Connected with kinds of bolts.
Bracing	X or V other type bracing made of angle steel, tube,etc.
C or Z purlin	Size: C100--C320,Z160--Z300.
Roof and wall panel	Single layer galvanized color steel sheet, thickness: 0.3-0.6mm
	Color steel sandwich panel: EPS, Glasswool,Rock wool,PU insulation panel
	insulation thickness:50mm, 75mm,100mm, insulation panel width: 900mm
Accessories	Semi-transparent skylight belts,ventilators,down pipe,gutter,etc.
Surface	Painting or hot dip galvanized.
Application	Permanent & temporary residence,office,workshop,warehouse,etc.
Characteristic	Various dimension,lower cost,easy installation and favorable insulation.
Design	According to your construction drawing or we design as per your detailed demand.
Fabrication	Strictly fabricate as per the drawings confirmed.
Transportation	Good relationship with many vessel companies to make sure the transportation smooth.
Installation	It is easy to be installesd. Detailed construction drawing will be offered for installation.
Bearing	The common light prefabricated steel structure building can stand heavy wind by 100km/h and 7grade earthquake.
Protection	Color steel sandwich panel performs favorable fire proofing and heat insulation.

Prefabricated Multi Story Steel Structure Residential Building Q235B 0

1.Technical Data-Standard

Technical characteristics of containers type elements
(1)ISO standard dimensions of 20 feet STANDARD containers-optionally 10 up to 30 feet
(2)length=6.058 mm (optionally 3.048 - 9.100 mm)
width=2.438 mm (optionally 3.000 mm)
(3)exterior height=2.591 mm (optionally 2.791 mm or 3100 mm)
(4)inner height = 2.300 mm (optionally 2.500 mm or 2800 mm)

container construction difference
ZINCED metal profyles 3 mm connected with scres

container painting
(1)option: on customer wish in RAL color
(2)option: painted on customer wish in RAL color

container floor

container floor opening for forklift
(1)without forklift pockets
(2)option: with forklift pockets for containers up to 7.335 mm
(3)holes distance 1.506mm

container roof construction

container exterior wall and side panels
(1)50 mm poliurethane panel, externally micro-corrugated RAL 9002
internally smooth RAL 9010 (white)
(2)option: 60 mm mineral wool, both side plastificated in RAL 9002
(3)option: 60 mm mineral wool, both side plastificated in RAL 9002, internally enriched chipboard 100 WHITE010 (white)
(4)option: 80 mm poliurethane panel, both side plasticated steel plate RAL 9010 (white)
(5)option: 100 mm poliurethane panel, both side plasticated steel plate RAL 9010 (white)
(6)option: 100 mm mineral wool, both side plasticated steel plate RAL 9010 (white)
(7)option: 120 mm mineral wool, both side plasticated steel plate RAL 9010 (white)

container exterior and inner walls
PVC with polyurethane filling 40 mm, clear opening 79/202 cm

container windows and doors
(1)option: windows without shutters
(2)option: windows with shutters

container isolation, coefficient of thermal resistance
floor - U = 0,37 W / m2k
roof - U = 0,39 W /m2k
wall panels - U = 0,41 W /m2k
windows - U = 2,40 W / m2k

Individual KXD container modules
They are assembled in KXD factory production from KXD manufactured elements. They come to the market as finished product as residential or office space equipped with or without equipment. Individual container modules are used as a single objects as bungalows, dormitories, offices, warehouses, shops, workshops and a built MODULE for the construction of various shapes and purposes.

dimensions and weights

container location preparation

container handling and lifting

Packaging & Delivery

Packaging Details:	flat packing in container house
Delivery Detail:	15 days

Why Choose Us?

✅ 20+ Years of Manufacturing Experience

✅ OEM/ODM Services Available

✅ Strict Quality Control (ISO 9001 Certified)

✅ Competitive Pricing & Fast Delivery

✅ One-Stop Solution (Design, Production, Installation Support)

Contact Us Today! Interested in a custom steel warehouse solution? Send us your requirements, and we’ll provide the best offer!
