Solar Foundation Steel Pipe Anchor Helical Screw Pile Foundation Pile

Product Details

Place of Origin: Qingdao

Brand Name: kxd

Certification: GB

Model Number: kxd-1544

Payment & Shipping Terms

Minimum Order Quantity: 50 Pieces

Price: US$10.00

Packaging Details: Solar Photovoltaic Power Stations

Delivery Time: two months

Payment Terms: L/C,T/T

Supply Ability: 10000PCS/Month

Get Best Price
Chat Now
Specifications
Highlight:

ground helical screw pile

,

ground screw pile foundation

Type:
Pile-ground Bracket
Material:
Steel
Service:
Design, Manufacture
Service Life:
More Than 50 Years
Color:
Silver
Surface:
Hot-DIP Galvanizing
Hot Sales Area:
Europe, South Africa,Southeast Asia
Type:
Pile-ground Bracket
Material:
Steel
Service:
Design, Manufacture
Service Life:
More Than 50 Years
Color:
Silver
Surface:
Hot-DIP Galvanizing
Hot Sales Area:
Europe, South Africa,Southeast Asia
Description
Solar Foundation Steel Pipe Anchor Helical Screw Pile Foundation Pile

About product


Product description:Screw pile are used for new construction to support existing structures. They are designed for applications in expansive soils, high water tables, fill areas, and other areas where unstable soils require a deep foundation. In compression they are used as footers and in tension they may be used to support retaining or foundation walls. Helical pilers are round or square, tubular or bar steel shafts with round helix plates welded to them.


Product features:

1.Helix blade configuration selected to achieve design depth and capacity

2.Can be installed in areas of limited or tight access

3.Installs quickly.

4.Installation does not generate spoils.

5.Vibration-free installation (unlike driven piles)

6.Concrete can be poured immediately following pile installation

7.Available with optional hot-dip galvanizing for added corrosion protection

8.Cost-competitive compared to other deep foundation alternatives.

9.Call or contact us online for a for new construction helical piles estimate.

10.Supports soil stabilization.


Product superiority:

1.Bar Material: 40Cr or 45# steel, round corner 5mm radius

2.Helix Plate material conforms to ASTM A36 hot rolled plate

3.helices thickness are available in 3/8" and 1/2" inch

4.All helix leading edges sharpened and rock cut and 45 degrees.

5.Corrosion protection to conform to ASTM A153 standard for hot dipped zinc coating

6.A better conventional solid steel extra high strength helical screw pile

7.Welded coupling for greater strength. Eliminates shaft heat damage caused by upset coupling process.


Product specification:

Specifications

Size

Lead Length (ft)

Helix Size (inch)

Extension Length(ft)

1 1/2"

3ft/5ft/7ft

8/10/12/14

3ft/5ft/7ft/10ft

2"

3ft/5ft/7ft

8/10/12/14

3ft/5ft/7ft/10ft

3"

3ft/5ft/7ft/10ft

8/10/12/15

3ft/5ft/7ft/10ft

Notes: Different materials and specifications can be customized according to your demands.

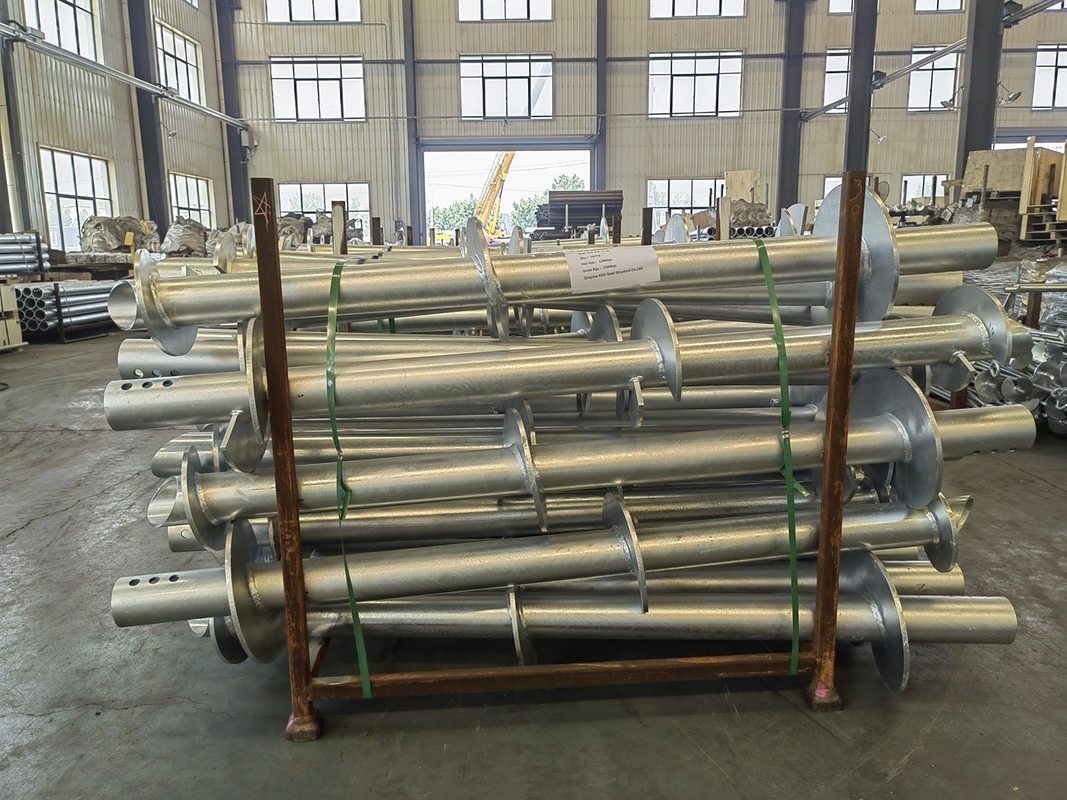

Solar Foundation Steel Pipe Anchor Helical Screw Pile Foundation Pile 0


Solar Foundation Steel Pipe Anchor Helical Screw Pile Foundation Pile 1


About shipping and logistics

We have a well-established logistics system, and we provide comprehensive services from the time of production to the port of shipment.

Solar Foundation Steel Pipe Anchor Helical Screw Pile Foundation Pile 2

Solar Foundation Steel Pipe Anchor Helical Screw Pile Foundation Pile 3
