Helix Blade Helical Tieback Solar Panel Ground Construction Screw Pile
Helix Blade Helical Tieback Solar Panel Ground Construction Screw Pile
Product description

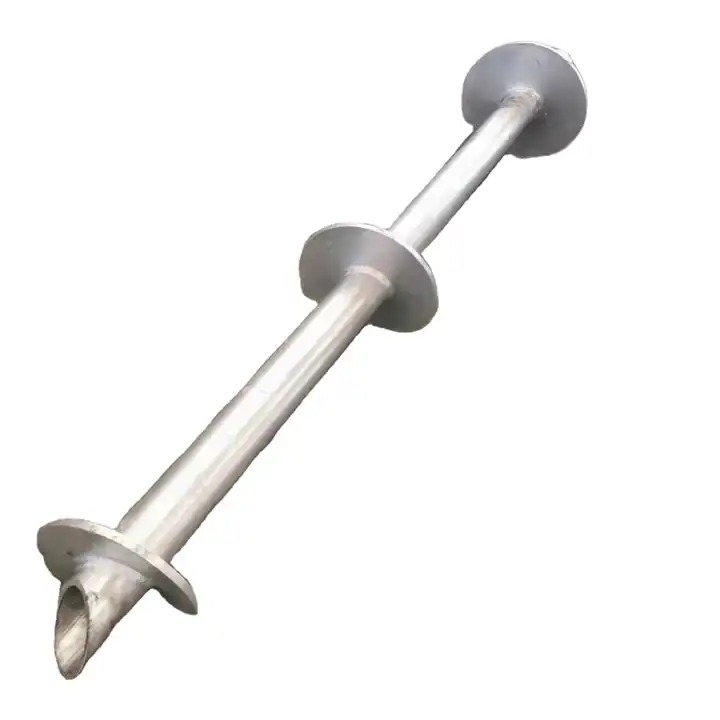

Helical piers, also known as anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations,a modern improvement to traditional cement footings. Each pier consists of an engineered steel post with screw-like helices. Helical pile is extendable base equipment which is made up of helical engineered metallic plates that are attached to a central steel shaft using a round or rectangular cross-section. The steel plate thickness, diameter, number, and helices operate are determined through the restricted or supported arrangement's minimal design life, the ecological rust, and geotechnical parameters, along with the design fill demands
Specifications and parameters
| Round Shaft Helical Pile |
Shaft Size
OD in (mm) |
Wall Thickness
in (mm) |
Metal Area
in² (cm²) |
Perimeter
in (cm) |
Helix Size
in |
Helix Thickness
in |
Lead Length
ft |
Extension Length
ft |
| 2.875 (73) |
0.203(5.2) |
1.7 (11.0) |
9.0 (22.9) |
8/10/12/14 |
3/8 or 1/2 |
3/5/7 |
3/5/7/10 |
| 2.875 (73) |
0.276(7.0) |
2.3 (14.8) |
9.0 (22.9) |
8/10/12/14 |
3/8 or 1/2 |
3/5/7 |
3/5/7/10 |
| 3.5 (89) |
0.300 (7.6) |
3.0 (19.5) |
11.0(27.9) |
8/10/12/14 |
3/8 or 1/2 |
3/5/7 |
3/5/7/10 |
| 4.5 (114) |
0.337(8.6) |
4.4 (28.4) |
14.1(35.9) |
8/10/12/14 |
3/8 or 1/2 |
3/5/7/10 |
3/5/7/10 |
| 6.625 (168) |
0.28 (7) |
5.58 (36.0) |
20.8(52.8) |
8/10/12/14 |
3/8 or 1/2 |
3/5/7/10 |
3/5/7/10 |
| 8.625 (219) |
0.25(6) |
6.58 (42.5) |
27.1(68.8) |
8/10/12/14 |
3/8 or 1/2 |
3/5/7/10 |
3/5/7/10 |
| All above sizes, steel grade are customizable. |
Product superiority
.A time-proven, versatile, and technically sound system.
· Lower cost and faster installation than other methods
· Installs quickly with small or handheld equipment.
· Can be installed in limited-access areas or tight access.
· Site cleanliness and minimize damage to landscape.
· Soil load bearing capacity is tested during installation.
· Helical anchors available with single, double and triple helix blades
Application Fields of Products
Helical Piles are used worldwide to secure residential and commercial buildings, tower foundations, heavy equipment foundations, and many other deep foundation system applications.
