High-quality factory price U Shape Galvanized Steel Ground Screw Pile

Name: High-quality factory price U Shape Galvanized Steel Ground Screw Pile
Brand: Qingdao KXD Steel Structure Co., Ltd
SKU: kxd-3678
Price: 10.00 USD
Availability: InStock

Product Details

Place of Origin: Qingdao

Brand Name: kxd

Certification: ISO

Model Number: kxd-3678

Payment & Shipping Terms

Minimum Order Quantity: 100 Pieces

Price: US$8.00-12.00

Packaging Details: Seaworthy Package

Delivery Time: two months

Payment Terms: L/C,T/T

Supply Ability: 50000 Sets Per Year

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      ground screw pile, galvanized screw pile, galvanized helical piles


Application:	Industrial	Type:	Pile-ground Bracket
Helix:	Customized	Material:	Steel
Diameter:	2-7/8"	HS Code:	730110

Application:	Industrial
Type:	Pile-ground Bracket
Helix:	Customized
Material:	Steel
Diameter:	2-7/8"
HS Code:	730110

Description

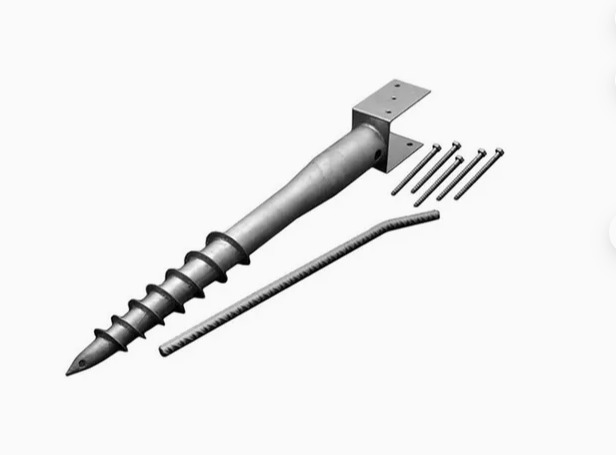

High-quality factory price U Shape Galvanized Steel Ground Screw Pile

Product description

Helical piers, also known as anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations,a modern improvement to traditional cement footings. Each pier consists of an engineered steel post with screw-like helices. Helical pile is extendable base equipment which is made up of helical engineered metallic plates that are attached to a central steel shaft using a round or rectangular cross-section. The steel plate thickness, diameter, number, and helices operate are determined through the restricted or supported arrangement's minimal design life, the ecological rust, and geotechnical parameters, along with the design fill demands.

Helical piers, also known as helical anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. Helical piers are round or square, tubular or bar steel shafts with round helix plates welded to them.

Specifications and parameters

item	value
Color	silver
Finish	Longer Life TiCN
System of Measurement	Metric, 550/730/865mm
Place of Origin	Qingdao
Brand Name	KXD
Model Number	KXD-3678
Material	Steel
Diameter	50~140mm, 50~140mm
Capacity	2000kgs/piece
Standard	ISO
Product name	ground screw
Material	Q235B/Q355B
Coating	HDG 45um average layer
Length	550/730/865mm
Outer Diameter	68mm
Hole spacing	42mm
Center hole spacing	90mm
U-shaped plate width	70mm
Hole diameter	11
Internal Spacing of U-shaped plate	71/91/111mm

All above sizes, steel grade are customizable.

Product superiority

Save time;

Easily assembled;

Save power;

Save money;

More environmental than Concrete Foundation method

Application Fields of Products

It can be widely applied to different soil conditions.

Ground screw appliation:

solar system;

timer-fram construction;

advertising and traffic systems;

urban garden and landscape construction;

flag poles and so on.

High-quality factory price U Shape Galvanized Steel Ground Screw Pile 0

High-quality factory price U Shape Galvanized Steel Ground Screw Pile 1
