Ground Screw In Anchors Foundation Helical Piles

Product Details

Place of Origin: Qingdao

Brand Name: kxd

Certification: ISO

Model Number: kxd-7631

Payment & Shipping Terms

Minimum Order Quantity: 50pieces

Price: US$8.00-12.00

Packaging Details: Seaworthy Package

Delivery Time: two months

Payment Terms: L/C,T/T

Supply Ability: 10000PCS/,onth

Get Best Price
Chat Now
Specifications
Highlight:

helical anchor

,

steel screw anchors

,

helical screw anchors

Material:
Steel
Type:
Ground Bracket
Samples:
Free Samples
Surface Treatment:
Hot DIP Galvanizing
Service:
Design, Production, Transportation, Installation
HS Code:
7308900000
Material:
Steel
Type:
Ground Bracket
Samples:
Free Samples
Surface Treatment:
Hot DIP Galvanizing
Service:
Design, Production, Transportation, Installation
HS Code:
7308900000
Description

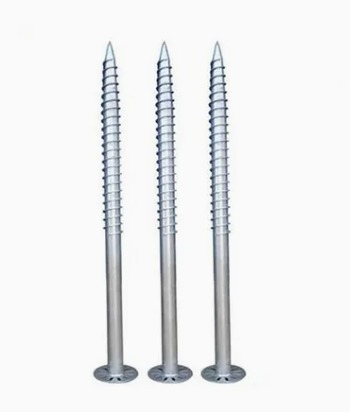

Ground Screw In Anchors Foundation Helical Piles

Ground Screw In Anchors Foundation Helical Piles


Product description

Helical Pile as an advanced foundation support solution, are widely used in numerous fields. With their unique spiral shape design, they can be quickly and effectively anchored into the ground, providing a stable foundation for various above-ground structures. There is no need for large-scale earth excavation and concrete pouring, which greatly improves construction efficiency and reduces the impact on the environment. They are favored foundation components in modern engineering construction


Specifications and parameters

Model Screw Diameter (mm) Screw Length (mm) Spiral Blade Outer Diameter (mm) Spiral Blade Spacing (mm) Single Pile Load-bearing Capacity (kN)
GS-01 48 600 100 200 10
GS-02 60 800 120 250 15
GS-03 76 1000 150 300 20
GS-04 89 1200 180 350 25

Notes: Different materials and specifications can be customized according to your demands


Product superiority

Screw pile is a new type of pile foundation. Its essence is galvanized steel pipe pile with screw blade welded. The spiral blade can well increase the resistance of soil to it and enhance the pulling force of the spiral pile. The zinc coating can enhance the corrosion resistance of the screw pile, so that it can also stay in the soil for 75 years.


Compared with traditional pile foundation, screw pile has the advantages of convenient installation, low construction cost and fast construction speed. Concrete cast-in-place pile needs to wait for concrete hardening, which is a long process. But screw pile is not used, after screwing in can bear the load immediately, reduce the waiting time, greatly shorten the construction period. And screw pile installation is convenient, only need a excavator and a driving head.


Easy quality control. The screw steel pile is all produced in the factory to avoid the uneven quality of foundation technology caused by the different technical level of the construction personnel in the reinforced concrete pile construction.  Environmentally friendly, good recycling. There is no need for earthwork development in the construction of steel pile, and it is directly screwed. There is basically no vibration and noise, and the ecological damage is minimal. Steel piles can be pulled out in reverse after use, leaving no underground obstacles, and the site can be restored.


Application Fields of Products

1) timber construction;

2) solar power system;

3) city and parks;

4) fencing system;

5) road and traffic;

6) sheds and containers;

7) flag pole and marks;

8) garden and leisure;

9) event structures

Ground Screw In Anchors Foundation Helical Piles 0

Ground Screw In Anchors Foundation Helical Piles 1
