Product Description

A spiral pile is a tubular structure made of high-strength steel, with spiral blades welded on its surface. It is inserted into the ground through specialized equipment, replacing traditional concrete foundations. Spiral pile is a new type of pile foundation material made of high strength steel, which is usually treated by hot galvanized surface. It is composed of bit, drill pipe, spiral blade and connecting pipe.

The top of the pile is connected to the load. Its working principle is similar to that of a screw, where the pile body is screwed into the soil by rotating, and the friction force and embedding force between the spiral blades and the soil provide the supporting force.

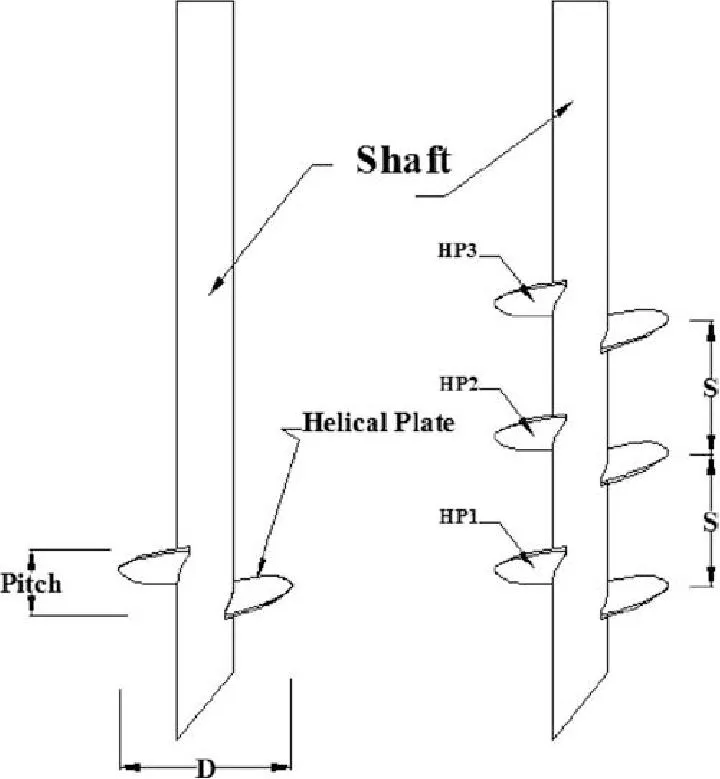

The main components of the spiral pile structure include:

The pipe body: usually made of high-strength steel, with good load-bearing capacity and corrosion resistance.

The spiral blades: welded to the outer wall of the pipe body, used to increase the friction with the soil, and improve the uplift resistance and stability of the pile body. The connection flange: used to connect the pile body and the upper structure, facilitating installation and disassembly.

The anti-corrosion coating: usually treated with hot-dip galvanizing, enhancing the corrosion resistance of the pile body.

Performance advantage

• efficient installation: simple construction, short cycle, free from bad weather, can be completed all day long, a pile can be finished in a few minutes, and immediately put into use after construction.

• strong adaptability: suitable for different soil conditions such as clay, sand, soft soil, silty clay, silty clay, silty clay, silty soil, fine sand and other soil conditions, as well as various complex topography, but also suitable for desert and other special geological environments.

• environmental protection and energy conservation: no large-scale excavation is required in construction, small damage to the natural environment, reuse, reduce the generation of construction waste, and meet the requirements of environmental protection.

• high bearing capacity: the unique spiral blade design can effectively increase the friction between pile body and soil mass, and it can also compress the surrounding soil in the process of entry.

• low cost: compared with the traditional concrete foundation, it can save two-thirds of the material and labor costs, such as supporting mold, reinforcement binding, pouring, maintenance, mold removal, foundation soil backfilling and other processes.

• reusable: when migration or removal is needed, spiral piles can be easily removed from the ground, recycled, and reduced resource waste and demolition costs.   • strong corrosion resistance: after hot dip galvanizing and other anticorrosive treatment, it enhances its corrosion resistance and service life, and is suitable for different environmental conditions, especially in areas with strong humidity or corrosion.

Application domain

• construction engineering: for the foundation support of buildings, especially in areas with complex geological conditions or weak soil bearing capacity, it can also be used for foundation support, retaining walls, mobile houses and other basic projects, effectively improving the stability and bearing capacity of the foundation.

• photovoltaic power station: as the foundation of photovoltaic support, it has the advantages of short construction period, low cost, environmental protection and energy saving, and can effectively bear the weight and wind load of solar panels, ensure the stability of photovoltaic support, and is widely used in large-scale photovoltaic power station, distributed photovoltaic power station and other projects.

• wind power generation: in the installation of wind turbine, as the foundation of the fan, can withstand the weight of strong wind and wind turbine, and ensure the stable operation of wind power equipment.

• traffic facilities: the supporting foundation of guardbars, signs and other traffic facilities in highway, railway and other traffic facilities is used to ensure traffic safety, and can also be used for slope protection, slope protection projects, etc., to improve slope stability and safety.

• garden landscape: in the garden landscape design, such as the support of outdoor seats, lampposts, flower frames, landscape sketches and other landscape facilities, provides a solid foundation for the landscape landscape, and enhances the stability and service life of the landscape facilities.

• temporary facilities: in the construction site, campsite, music festival and other temporary facilities, used for the support of temporary buildings such as tents and tents, which are both stable and convenient for disassembly.

• other fields: it can also be used in fence, fixed tent, mobile housing, greenhouse, transmission engineering, pipeline support, industrial and civil buildings and other construction fields.

Product parameters

• size specification: the outer diameter is generally 50mm, 60mm, 76mm, 88mm, 101mm, 108mm, 108mm, 133mm, 133mm, 159mm, respectively, and the wall thickness is 3.75mm, 4.55mm, 3.92mm, 4.55mm, 5.47mm, 5.97mm, 5.97mm, 5.97mm, 6.35mm, etc. The pile length can be customized according to the

• material and technology: generally used in q235b and q355b, the manufacturing process includes cutting, deformation, welding, pickling and hot dip galvanizing and other steps, among which pickling and hot dip galvanizing are important anticorrosive treatment processes, which can improve the corrosion resistance and service life of spiral pile.

• bearing capacity parameters: under vertical load, its bearing capacity is significantly higher than that of traditional straight pile. For example, under vertical compression load, the bearing capacity of spiral pile can reach 9.38mn, while the traditional straight pile is only 3.77mn. The horizontal bearing capacity is also excellent. The lateral bearing capacity is 1.2 to 1.4 times that of the traditional straight pile, and increasing the axial diameter and top section length of the spiral pile can further improve its lateral resistance.

Company Profile

Qingdao KXD Steel Structure Co.,Ltd is one subsidiary for XINGUANGZHENG Group focusing on structural steel building construction related business, engineering,supply, fabrication, delivery and installation for whole buildings construction, meanwhile, we also do steel foundation accessories fabrication, foundation anchor, ground screws,helical pile.

Our Advantages

Professional Customization: Based on your project requirements, we provide precise size and performance customization to ensure the product is perfectly compatible.

Reliable Quality: A strict quality control system is in place, from raw material procurement to finished product inspection, with each step being strictly controlled to ensure product quality.

Thoughtful Service: Our professional technical team offers you one-stop services from product consultation, scheme design to installation guidance, allowing you to feel at ease and save effort.

Rich Experience: With extensive practical experience in spiral pile foundations, we have successfully applied to multiple large-scale projects and accumulated valuable construction and application experience.

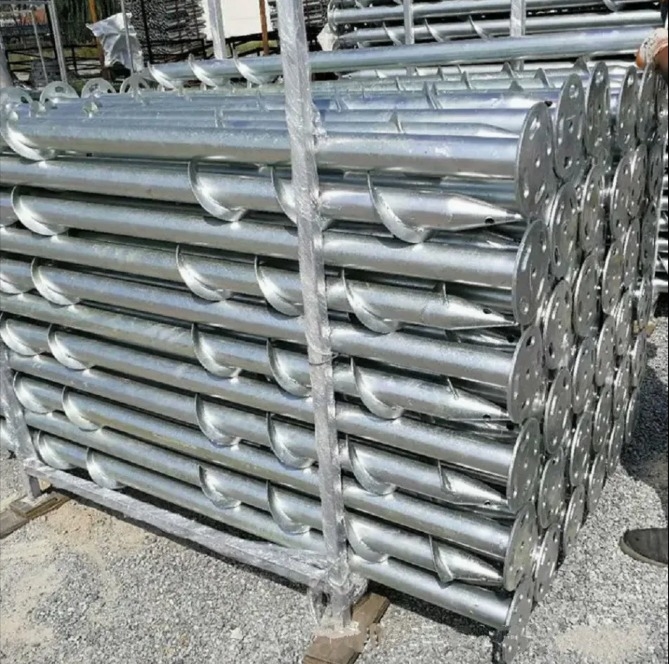

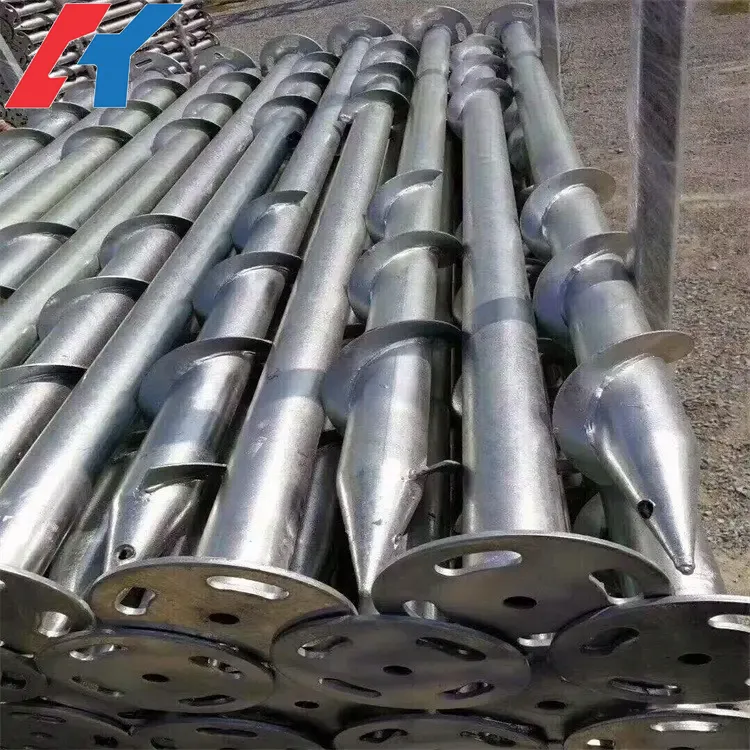

Packaging&Shipping Detailed Photos

As a professional manufacturer of spiral pile anchors, we are well aware of the significance of packaging and transportation in ensuring product quality. In the packaging stage, we use sturdy customized packaging to protect the spiral pile anchors from damage during transportation, and we also take measures to shield the sharp parts to prevent scratches. Regarding transportation, we collaborate with high-quality logistics providers to offer nationwide fast delivery services, and we purchase transportation insurance for each batch of goods to ensure that customers can receive the products safely and on time.

Erection

As a professional manufacturer of helical piles, we are well aware of the significance of building a stable and efficient foundation structure for our customers. Our helical piles are made of high-quality steel and crafted through exquisite techniques, featuring outstanding load-bearing capacity and corrosion resistance. During the installation process, they are easy and quick to operate, requiring no complex machinery. Only professional installation tools are needed to effortlessly screw them into the ground. Whether it's for outdoor fences, billboards, solar panel supports or temporary buildings, our helical piles can quickly provide stable support, saving time and labor costs. Meanwhile, we offer detailed installation guidance and full technical support throughout the process to ensure that customers can easily complete the installation, making your project stable, reliable and long-lasting.

If you are interested in our hot-dip galvanized helical piles,please feel free to contact with us,we are very glad to serve you.
