Galvanized Carbon Steel Helical Ground Screw Piles 2.75mm 3mm 3.5mm

Name: Galvanized Carbon Steel Helical Ground Screw Piles 2.75mm 3mm 3.5mm
Brand: Qingdao KXD Steel Structure Co., Ltd
SKU: kxd-9314
Price: 15.00 USD
Availability: InStock

Product Details

Place of Origin: Qingdao,China

Brand Name: kxd

Certification: ISO

Model Number: kxd-9314

Payment & Shipping Terms

Minimum Order Quantity: 50 Pieces

Price: US$12.00-18.00

Packaging Details: Seaworthy Package

Delivery Time: two months

Payment Terms: L/C,T/T

Supply Ability: 10000PCS/month

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Carbon Steel ground screw piles, Helical ground screw piles, 3.5mm ground screw foundations


Material:	Q345B Q235B	Feature:	Quick Installation
Color:	Silver, Natural	Ground Screw Diameter:	32mm, 38mm, 48mm, 60mm, 76mm, 89mm, 102mm,140mm
Thickness:	2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.5mm Or As Require	Type:	Pile-ground Bracket

Material:	Q345B Q235B
Feature:	Quick Installation
Color:	Silver, Natural
Ground Screw Diameter:	32mm, 38mm, 48mm, 60mm, 76mm, 89mm, 102mm,140mm
Thickness:	2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.5mm Or As Require
Type:	Pile-ground Bracket

Description

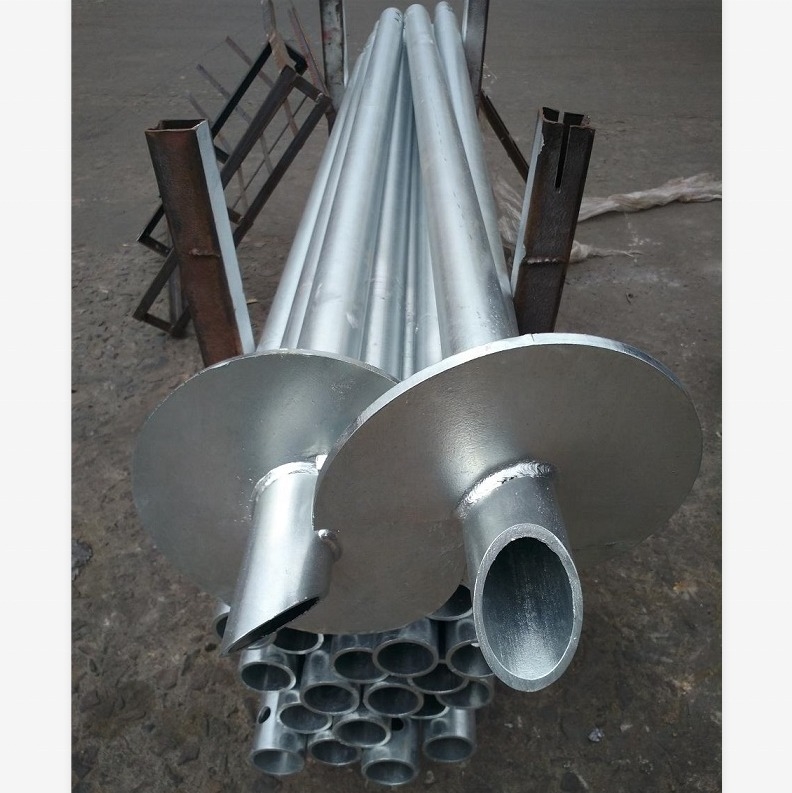

Galvanized Carbon Steel Helical Ground Screw Piles 2.75mm 3mm 3.5mm

Galvanized Carbon Steel Helical Ground Screw Piles

Product description

Round Shaft Helical Piles are Solar photovoltaic supporting products,Suitable for solar photovoltaic, wind and construction industries.Suitable for all kinds of soil.
Conventional size is 76*400*850 and the material is Q235 steel or Q355 steel.We can also customize according to the drawings you provide.
We use thicker material for the high load section, the spiral blades are welded by gas shielded welding process, and the surface is hot dip galvanized.

Specifications and parameters

Prouduction Name	Ground Anchors
Brand Name	kxd
Place Of Origin	Shandong ,China
Installation Site	Open field/ ground
Material	Q235/Q355
Surface	Hot dip galvanization
Wind Speed	60m/s
Snow Load	1.4KN/m2
Thickness	2.75mm/3mm/3.5mm
Length	From 500mm To 2500mm, Customized
Series	Flange top, Tube top
Warranty	10 years
Service life	25 years
Payment	T/T, L/C
Packing	Ground Anchors are packed in pallet, carton box or as your request
Port	Shandong, China
Standard	AS/NZS 1170; TUV;ISO

Notes: Different materials and specifications can be customized according to your demands.

Product superiority

The product has the advantages of low price, simple and convenient adjustment, no need to adjust the finish, and high accuracy.

1) Efficient and Convenient Installation Method
2) Excellent Load-bearing Capacity
3) Outstanding Adaptability
4) Adjustability and Flexibility
5) Environmental Protection and Reusability

Application Fields of Products

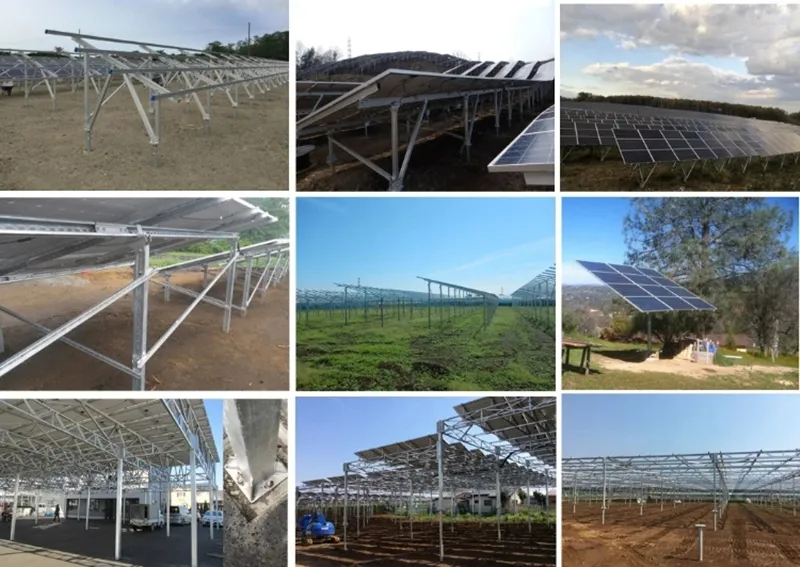

It is mainly used for base brackets for solar panels, farm fences, garden fences, sun umbrella bases, etc.

It is mainly used for building construction, dock berthing platform, etc

It is mainly used for garden fences, guardrails, etc

Galvanized Carbon Steel Helical Ground Screw Piles 2.75mm 3mm 3.5mm 0

Galvanized Carbon Steel Helical Ground Screw Piles 2.75mm 3mm 3.5mm 1

Galvanized Carbon Steel Helical Ground Screw Piles 2.75mm 3mm 3.5mm 2
