Cost‑Effective Steel Structure Warehouse Construction

Brand Name: KXD
Model Number: KXD-WU18
MOQ: 200 sqm
Price: USD 80-100 per sqm
Delivery Time: 25 days
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
Qingdao,China
Certification:
SGS、BV、ISO
Connection Form:
Bolt Connection
Assembly:
Prefabricated
Structure:
Steel Frame
Type:
Prefab Steel Structure Building
Door:
Roller, Sliding Door
Span:
Customizable, Typically 6m To 30m
Usage:
Warehouses, Factories, Workshops, Commercial Buildings
After Sale Service:
Installation Drawing,Installation Video
Supply Ability:
30000 tons/month
Highlight:

steel structure warehouse construction

,

cost-effective steel building

,

prefabricated steel warehouse

Product Description

Cost‑Effective Steel Structure Warehouse Construction


Definition


Cost‑effective steel structure warehouse construction refers to the process of building industrial storage facilities using steel frames and components, optimized for both structural performance and budget control. It focuses on achieving a balance between quality, durability, and reasonable cost through standardized design, factory prefabrication, and efficient on-site assembly.


Main steel frame
H section steel beam and columns,painted or galvanized,galvanized C section or steel pipe
Secondary frame
Hot dip galvanized C purlin,steel bracing,tie bar,knee brace,edge cover etc.
Roof panel
EPS sandwich panel,glass fiber sandwich panel,rock wool sandwich panel,and PU sandwich panel or steel sheet
Wall panel
Sandwich Panel or Corrugated Steel Sheet
Tie Rod
Circular Steel Tube
Brace
Round Bar
Knee Brace
Angle Steel
Drawings & Quotation:
(1) Customized design is welcomed.
(2) In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather. We will quote for you promptly.



Advantages


Lower overall cost: Steel offers high strength at a relatively low price; lighter weight reduces foundation costs; and prefabrication cuts labor and construction time.

Fast construction: Most steel components are manufactured in factories and assembled on site, significantly shortening the project schedule.

High structural safety: Steel has excellent load‑bearing capacity, good seismic performance, and can be enhanced with fireproofing materials for improved fire resistance.

Large span and flexible layout: Steel structures easily achieve wide spans with fewer internal columns, maximizing usable storage space.

Long service life: Properly maintained steel warehouses can last 30–50 years or more.

Environmentally friendly: Steel is highly recyclable, reducing material waste and supporting green building practices.

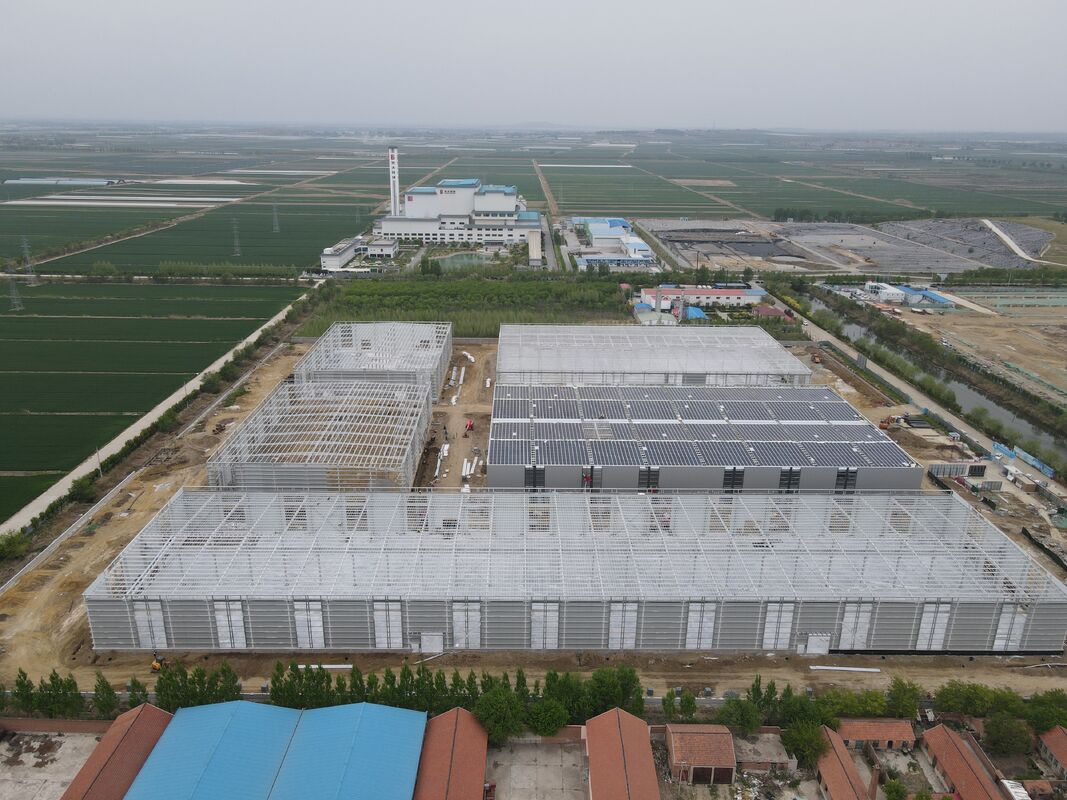

Cost‑Effective Steel Structure Warehouse Construction 0


Cost‑Effective Steel Structure Warehouse Construction 1



Benefits


Faster return on investment: Shorter construction time means the warehouse can start operating and generating revenue sooner.

Improved storage efficiency: Open, column‑free interiors make it easier to arrange racks, machinery, and logistics operations.

Low maintenance costs: Steel structures are stable and require minimal upkeep compared to some other building types.

Easy expansion and modification: Additional bays or floors can be added later without major disruption.

Customizable design: Steel warehouses can be tailored to specific dimensions, load requirements, and functional needs.

Cost‑Effective Steel Structure Warehouse Construction 2


Cost‑Effective Steel Structure Warehouse Construction 3



Applications


Industrial warehouses: For storing raw materials and finished goods in manufacturing plants.

Logistics and distribution centers: Ideal for e‑commerce, courier, and general logistics operations.

Agricultural storage facilities: Used for grain, feed, fruits, vegetables, and agricultural equipment.

Workshops and production plants: Can serve as both production space and storage area.

Temporary or relocatable warehouses: Suitable for short‑term use or sites requiring flexible relocation.


Cost‑Effective Steel Structure Warehouse Construction 4

Cost‑Effective Steel Structure Warehouse Construction 5


Cost‑Effective Steel Structure Warehouse Construction 6

Cost‑Effective Steel Structure Warehouse Construction 7
