| Brand Name: | KXD |
| Model Number: | KXD-SS89 |
| MOQ: | 500 sqm |
| Price: | USD 68-100 per sqm |
| Delivery Time: | 25 days |
| Payment Terms: | ,T/T |
High-Quality ISO Certified Steel Warehouses for Global Buyers
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Galvanized C-style Steel/ Steel Tube |
| Knee brace | Angle Steel | |
| Tie rod | Circular Steel Tube | |
| Brace | Round Bar | |
| Vertical&Horizontal support | Angle Steel, Round Bar or Steel Tube | |
| Cladding system | Roof panel | 50mm/75mm/100mm Thick EPS/Rock Wool/Glass Wool/PU Corrugated Sandwich Panel |
| Corrugated Colored Steel Sheet | ||
| Wall panel | 50mm/75mm/100mm Thick EPS/Rock Wool/Glass Wool/PU Sandwich Panel | |
| Corrugated Colored Steel Sheet | ||
| Accessories | Door | 850/900*2100mm EPS Sandwich Panel Door/Steel Security Door/ Rolling Door |
| Window | UPVC Sliding Window/ Aluminum Alloy Sliding Window/ Louver/Customized | |
| Gutter | Colored Steel Sheet/Aluminum Alloy Folded Piece | |
| Downpipe | 100mm UPVC | |
| Roof Load | In 50kg/Sqm (Colored steel panel surrounded) | |
| Wind Load | Design According To Local Climate | |
| Earthquake-resistance | 8 Grades | |
| Structure Life Span | Up to 50 years | |
| Paint Options | Frame Colors Optional | |

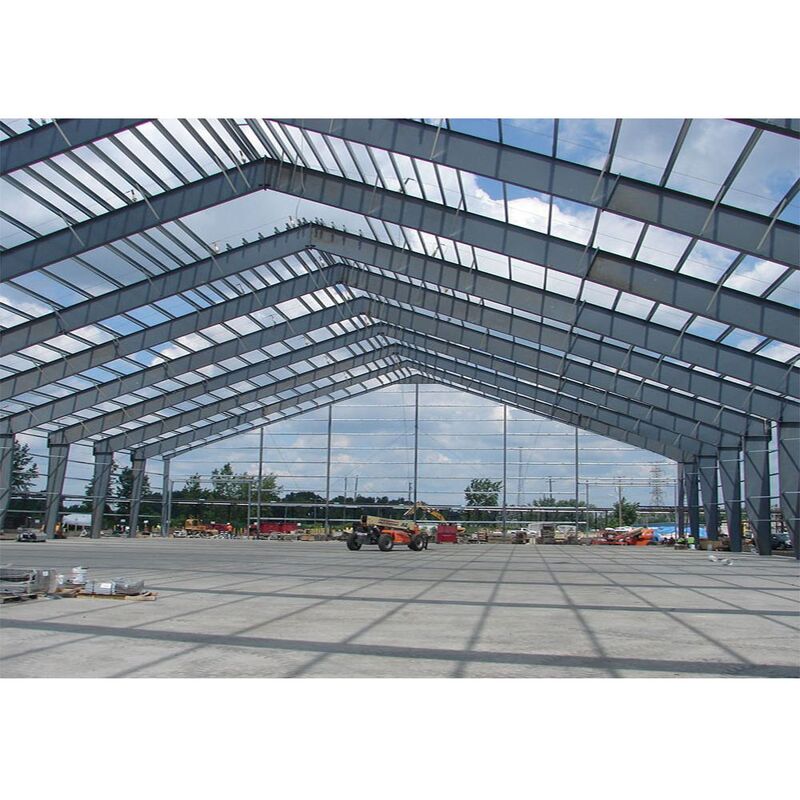

Steel structure is made up of steel materials and is a new type of building structure. The structure is mainly composed of steel beams,steel columns,steel trusses and other components made of H section steel and steel plate.
The joints between steel components is usually welded and bolted. Because it have character of light weight and easy construction,it is widely used for large factory,warehouse,workshop, stadiums,bridges and super high rise buildings.
H section steel column and steel beam , wall and roof purlin ,strutting piece , steel bracing , wall and roof panel, door and window ,and the accessories.
* Enviromental friendly
* Lower cost and maintenance
* Long using time up to 90 years
* Stable and earthquake resistance up to 9 grade
* Fast construction, time saving and labor saving
* Good appearance
1.High-quality Raw Materials
We have strict standards and quality inspection processes for raw material procurement. Each batch of raw materials will have corresponding quality certificates and material inspection reports to ensure that these raw materials meet national and industry standards.
2.Advanced Production Equipment
Our factory is equipped with advanced steel structure processing equipment, which greatly improves product quality and enables steel structure products to reach higher standards in strength, precision and appearance.
3.Quality Certification and Testing
We have ISO9001 quality management system certification, and all finished products will be tested, including metal flaw detection, paint thickness, galvanizing thickness, etc., to ensure the beauty and service life of the steel structure.
