| Brand Name: | KXD |
| Model Number: | KXD-SS56 |
| MOQ: | 500 sqm |
| Price: | USD 68-100 per sqm |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C |
Customized metal building Prefabricated House/Cold Storage/Car Grage/Workshop/Warehouse/Factory Steel Structure

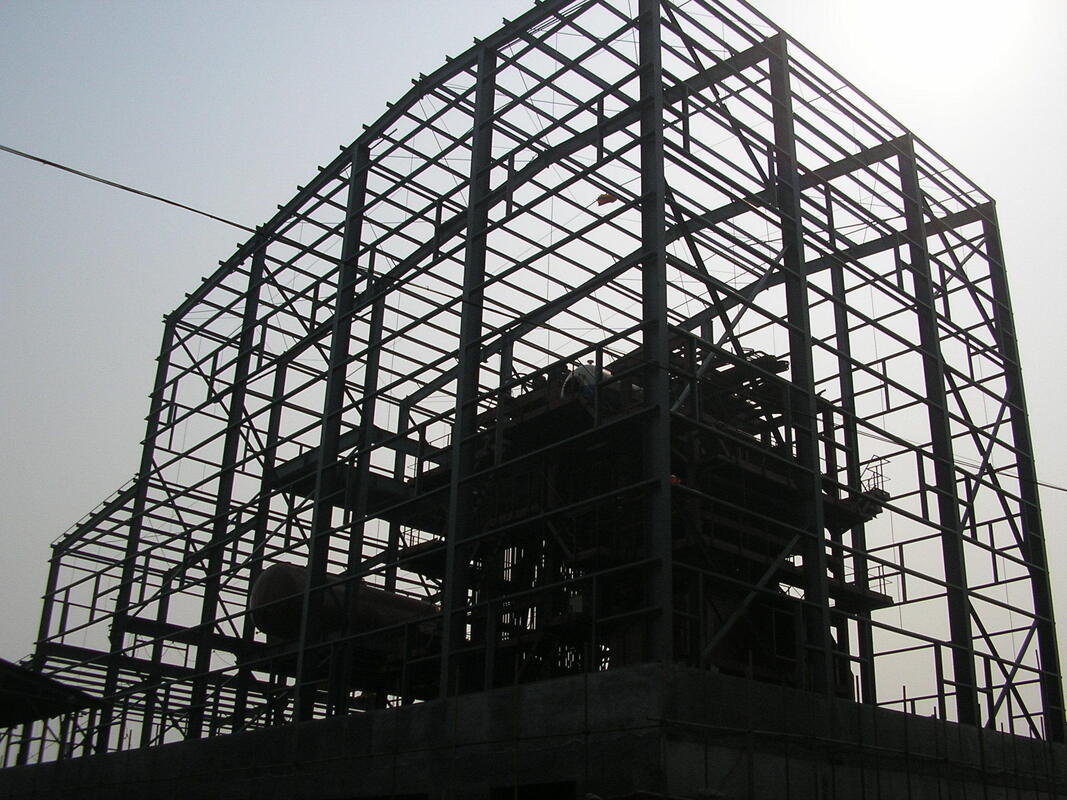

Steel structure workshop included the main structure (steel beam/girder, steel column/pillar), the secondary structure( roof and wall purlin, steel bracing, tie-bar etc), door and windows, and other accessories.
Steel Structure Wokeshop/ Plants can be widly used in many products and industry, such as chemical industry, heavy industry, machinery plant, textile industry and so on.
|
Main Parts
|
Item Name
|
Specification
|
|
Main Steel Frame
|
Steel Column
|
Q235B, Q345B (H shape, Box, Steel pipe, Hot rolled sheet)
|
|
Steel Beam
|
Q235B, Q345B (H shape, Steel Truss, Hot rolled sheet)
|
|
|
Supporting System
|
Brace
|
Q235B, Q345B(Steel rod, Steel pipe, Angle steel)
|
|
Roof Purlin
|
C or Z shape, Steel purlin
|
|
|
Wall Purlin
|
Q235B, Q345B(C or Z shape, Steel purlin)
|
|
|
wall& roof
|
wall
|
Single colorful steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.,
|
|
roof
|
Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.,
|
|
|
thinckness
|
50-250mm
|
|
|
Accessories
|
Bolts
|
Ordinary, High strength
|
|
Gutter
|
Galvanized Steel plate, Stainless steel
|
|
|
Windows
|
Aluminum alloy-Glass, Aluminum alloy-shutter, PVC
|
|
|
Doors
|
Sliding or Rolling door Material customized
|
|
|
Downpipes
|
PVC pipe, Color steel pipe
|
|
|
Edge Cover
|
Made of color steel sheet thickness 0.5mm (customized)
|
|
|
Ventilator
|
Stainless steel
|
|
|
Crane
|
Crane in 5 tons to 20 tons(As required)
|
|
Specifications
|
1)Size: MOQ is 200m2, width X length X eave height, roof slope
|
||
|
2)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
|
|||
|
3) Base: Cement and steel foundation bolts
|
|||
|
4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section!
|
|||
|
5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
|
|||
|
6) C or z purlin: Size from C120~C320, Z100~Z200
|
|||
|
7) Roof and wall panel: Single colorfull corrugated steel sheet0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm,
|
|||
|
8)Surface: Two lays of Anti-rust Painting!
|
|||
