| Brand Name: | KXD |
| Model Number: | KXD-EQUIPMENT |
| MOQ: | 500 square meters |
| Price: | 20-80 USD per sqm |
| Delivery Time: | 15-35days |
| Payment Terms: | T/T,L/C |

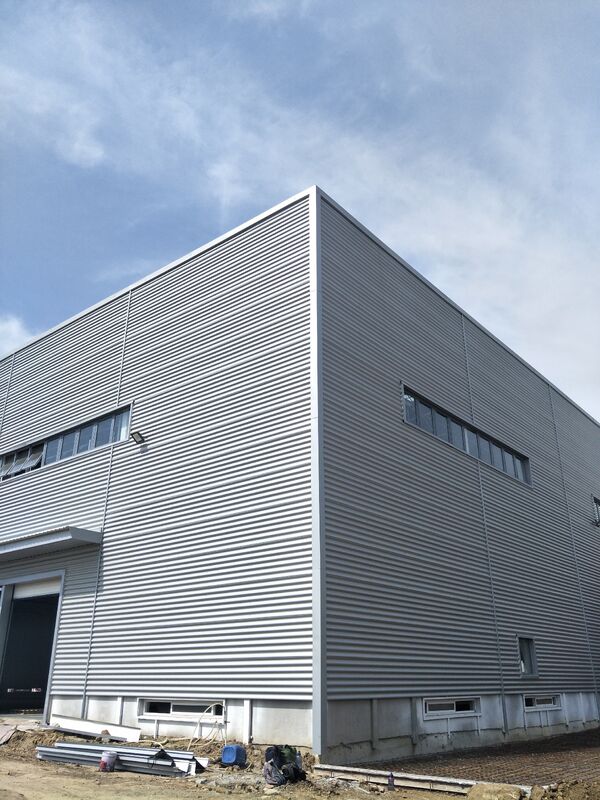

High-strength steel prefabricated pharmaceutical factory building compliant with medical-grade standards
High-strength steel prefabricated pharmaceutical factory building meets full medical-grade standards, featuring fast construction, cost efficiency, clean sealed structure and strict sanitary requirements for pharmaceutical production.
| Parameter | Specification | Remarks |
|---|---|---|
| Structural System | Portal Frame Light Steel Structure | High strength, lightweight |
| Span | 10m - 60m | 100% usable space, no internal columns |
| Length | Unlimited | Flexible extension based on site |
| Eave Height | 4m - 12m | 5-8m recommended to balance HVAC costs |
| Wall Material | 50/75/100mm EPS/Rock Wool/PU Sandwich Panel | Glass curtain wall or brick veneer optional |
| Roof Material | Corrugated Steel Sheet or Concealed Roof Panel | Includes insulation and vapor barrier |
| Wind Resistance | ≤ 210 km/h | Customizable for typhoon zones |
| Seismic Resistance | Grade 8 | High structural flexibility |
| Surface Treatment | Hot-dip Galvanized + Premium Paint | Anti-corrosion life >20 years |
| Installation | Bolted Connection |
No on-site welding, fast construction
|
