| Brand Name: | KXD-SSW1059 |
| Model Number: | KXD-SSW1059 |
| MOQ: | 200 Square Meters (MOQ) |
| Price: | US$50.00-100.00 |
| Delivery Time: | 30days |
| Payment Terms: | T/T |

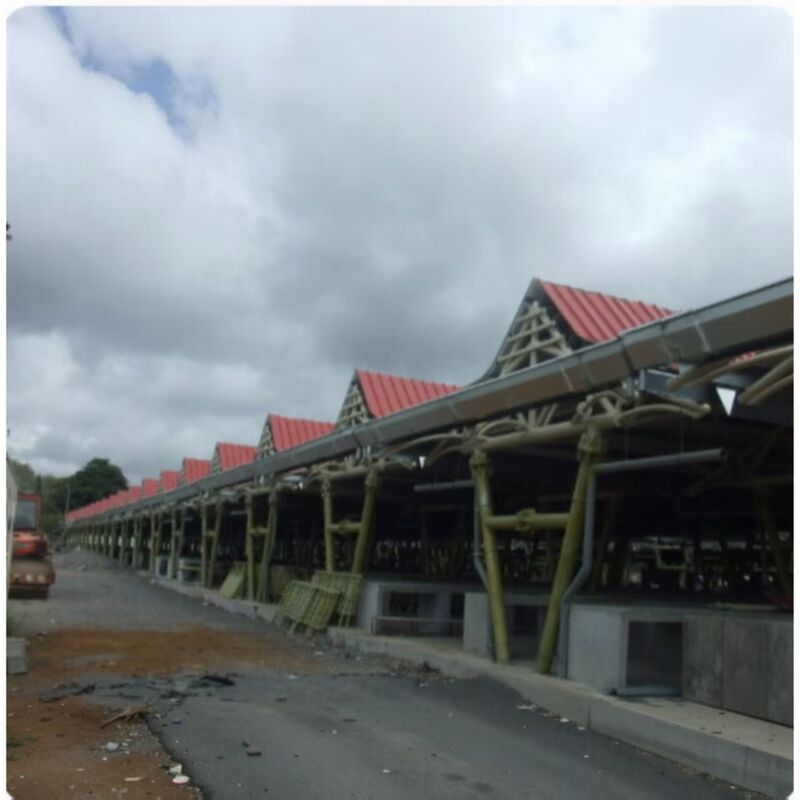

Prefabricated Steel Direct Industry Structural Workshop Building
The load bearing parts for steel structure workshop are mainly steel structures, including steel columns, steel beams, steel structural basements, bracing systems for wall and roof. Steel workshops are divided into Light Steel Workshops and Heavy Steel Workshops. The Main Structure are usually made of Q345 Steel while the Purlins and Bracing System are made of Q235 Steel. They are the most common steel materials used for steel structure in China.
We can offer one stop service for the customer from designing, manufacturing, to testing, installation. All the steel structure building can be fabricated customized according to customers' demand and will be professional advice according to our experience.
| Component | Specification |
|---|---|
| Main Structure | Steel Welded H Section |
| Purlin | C Section Channel or Z Section Channel |
| Roof Cladding | Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool Coil |
| Wall Cladding | Sandwich Panel or Corrugated Steel Sheet |
| Tie Rod | Circular Steel Tube |
| Brace | Round Bar |
| Column & Transverse Brace | Angle Steel or H Section Steel or Steel Pipe |
| Knee Brace | Angle Steel |
| Wrapping Cover | Color Steel Sheet or aluminum alloy |
| Roof Gutter | Color Steel Sheet |
| Rainspout | PVC Pipe |
| Doors | Sliding Sandwich Panel Door or Metal Door |
| Windows | PVC/Plastic Steel/Aluminum Alloy Window |
| Connecting | High Strength Bolts and welded |
| No. | Classify | Name | Specification & Parameter |
|---|---|---|---|
| 1 | Type | standardization | custom made products, design and manufacture according to client's demand |
| 2 | disassembly and assembly | not suitable for assemble and disassemble, lower repeating utilization factor | |
| 3 | Specification | Length | No limited, increase expansion joint when length more than 200m |
| 4 | Specification | Width | ≤ 11m |
| 5 | Specification | Height | ≤ 3.0m |
| 6 | Specification | Roof slope | double slope, 1:6-1:4 |
| 7 | Specification | Floors | 1 floor |
| 8 | Standard | Ground channel | Galvanized steel panel pressure, steel panel thickness is 0.8mm |
| 9 | Standard | Post | Outdoor post is square steel pipe, material is Q235, components make bottom and surface painted process |
| 10 | Standard | roof beam | Triangle roof frame is welded by square steel pipe, components surface is made rust-proof process |
| 11 | Standard | purlin | Purlin is square steel pipe, material is Q235, components surface is made rust-proof process |
| 12 | Standard | wallboard | 75mm~150mm thickness color steel sandwich panel, white color |
| 13 | Standard | roof board (Ceiling board) | 75~150mm thickness color steel sandwich panel, white color |
| 14 | Standard | roof tiles | V35-125-350 color steel tiles, blue or red color |
| 15 | Standard | door | sandwich panel door, size: 750mm*2000mm |
| 16 | Standard | window | PVC sliding window, conch model |
| 17 | Options | ceiling | roof board is also ceiling board, so this house don't need to make ceiling again |
| 18 | Options | canopy | color steel sheet or color steel sandwich panel canopy |
| 19 | Options | door | compound wooden door, security door, aluminium alloy door |
| 20 | Options | Electrical accessories | Supply plan, design and construction according to relevant national norms(220V, 50Hz, with lamp, switches and multi-function sockets) |
| 21 | Options | Water plumbing accessories | Supply plan, design and construction according to relevant national norms |
| 22 | Options | Sanitary ware | Supply according to customer needs |
| 23 | Options | Furniture and electrical appliance | Design according to client's needs |
| 24 | Design Parameter | roof dead load | 0.3KN/m2 |
| 25 | Design Parameter | roof live load | 0.5KN/m2 |
| 26 | Design Parameter | wind load | 9 degree, wind load: 0.35KN/m2, design speed: 24m/S(Chinese standard) |
| 27 | Design Parameter | Earthquake resistant intensity | 6 degree |
| 28 | Design Parameter | used temperature | Scope: -25°C~+50°C |
| 29 | Installation | Tools | electric drill, pulling rivet, electric hammer, spanner, screwdriver etc, need power to install the house |
| 30 | Installation | Efficiency | Four skilled labor one day can erect 40m2's house body |
| 31 | Transport | Container | each 40ft container could load 130~150m2 house body material |
