Steel Structure Building
Created with Pixso. Prefabricated Steel Building with Long Using Life, Quick Assembly, and Environmental Friendly Material

Prefabricated Steel Building with Long Using Life, Quick Assembly, and Environmental Friendly Material

Brand Name: KXD
Model Number: KXD-SS7
MOQ: 500 sqm
Price: USD 69-100 per sqm
Delivery Time: 25 days
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
Qingdao,China
Certification:
ISO/CE/SGS
Installation:
Prefabricated Components For Quick Assembly
Column And Purlin:
C Section And Z Section
Environment Protection:
Environmental Friendly Material
Standard:
Different Standards On Option As Demands
Connection Type:
Bolted, Welded
Beam:
Welded/ Hot Rolled H Beam
Packaging Details:
steel pallet
Supply Ability:
500000 tons/month
Highlight:

Long Using Life Prefabricated Steel Building

,

Quick Assembly Steel Structure Building

,

Environmental Friendly Material Modular Steel Workshop

Product Description
Prefabricated Welded Light H Section Column Steel Structure with Long Using Life
Product Characteristics
  • Wide span: single span or multiple spans, the max span is 48m without middle column
  • Low cost: Unit price range from USD35/m² to USD85/m² according to customer's request
  • Fast construction and easy installation
  • Long using life: up to 50 years
  • Environmental protection, stable structure, earthquake resistance, water proofing, convenient transportation and energy conserving

The steel structure building is light in weight, high in strength, good in overall rigidity and strong in deformation resistance. The building's self-weight is only one fifth of that of the brick-concrete structure. It can withstand the hurricane of 70 meters per second, so that life and property can be effectively protected.

Modular Structural Steel Workshop Specifications
Component Specification
Length Single slope, double slope, multi slope
Width Single span, double-span, Multi-span
Height Single floor, double floors
Column Q235, Q345 welding H section steel
Beam Q235, Q345 welding H section steel
Purlin Q235 C channel or Z channel
Knee brace Q235 angle steel
Vertical and transversal support Q235 angle steel, round bar or steel pipe
Tie bar Q235 steel pipe
Brace Q235 round bar
Sleeve Q235 steel pipe
Cladding system Sandwich panels (EPS, PU, Fiber glass wool etc.) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze
Partition wall Sandwich panels (EPS, PU, Fiber glass wool etc.)
Second floor Deck floor
Second floor office Fiber cement board floor panel or checkered steel plate
Stair Q235 steel structure with checkered steel plate
Ventilation Ventilator
Door Sandwich panel sliding door or roller door
Windows PVC or Aluminum
Water Provided plan, design and technical service
Electricity Provided plan, design and technical service
Gutter Stainless steel or color steel sheet
Rainspout PVC
Live load on roof 120kg/m² (Color steel panel surrounded)
Wind resistance grade 12
Earthquake-resistance 8 degree
Key Advantages
Materials Cost

Construction and material costs for traditional structures are much more expensive than prefabricated steel or metal buildings, making our products more cost effective.

Quick Assembly

Pre-fabricated steel structures arrive at the construction site in ready-to-assemble sections. All you have to do is lay it out and bolt it together. As most kits arrive with all components included, they are simple to assemble and provide massive savings on labor and material costs.

Accurate Design

Metal and steel building templates are engineered, generated, and manufactured using computer technology. Measurements, fittings and all components are engineered and created with laser precision, eliminating extra costs of excessive materials and unexpected expenses.

Highly Energy Efficient

Steel buildings are highly efficient by design. Using top-of-the-line insulation and construction materials, they are often the most energy efficient buildings on the market. Steel doesn't warp in extreme weather the way wood and mortar buildings do, leading to long-term energy efficiency.

Increased Safety

Designed to be strong and structurally sound, pre-engineered steel buildings can withstand severe weather conditions and reduce the risk of fire damage. This provides longevity to your investment and can lead to insurance discounts of around 40%.

Improved Flexibility, Design and Portability

Prefab steel buildings are expandable and manufacturers are very flexible in designing custom plans for your project. You can simply add another section if you need more space or disassemble and move the building to another location.

Our clients visit our factory and give high evaluations of our steel structures.

Product Gallery

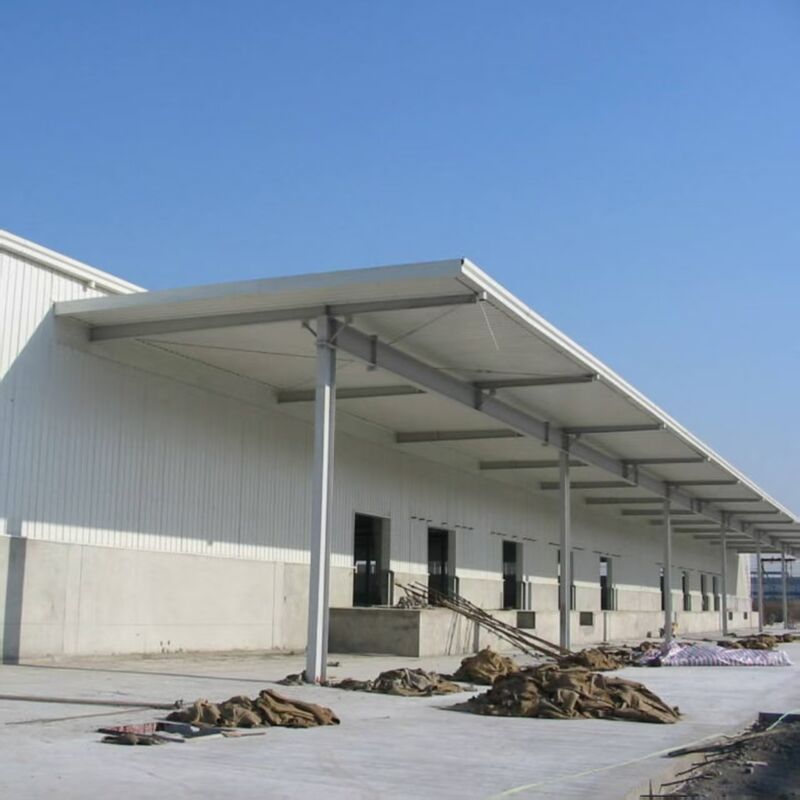

Prefabricated steel structure workshop exterior view Steel structure building interior framework Modular steel construction assembly process Completed steel structure workshop installation
