| Item |
Material |
Specification |
Qty |
| Final Product |
Standard container |

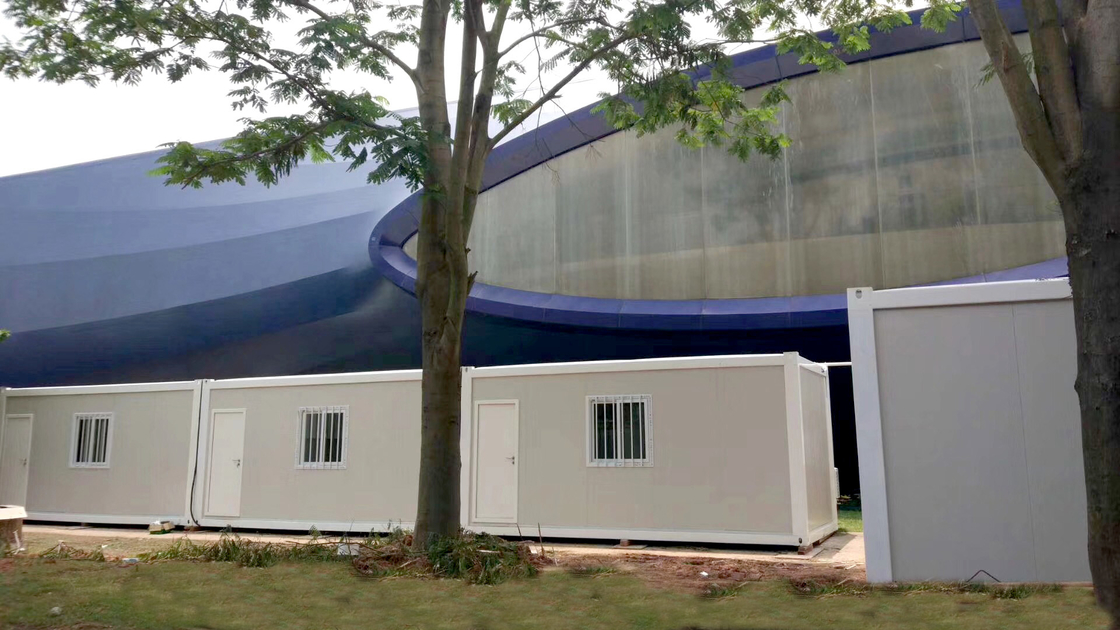

All 3 containers connected into one building. Quantities are given for the entire building (not for the container) |
3 |
| ~ External: 6058mm x 2438mm x 2896mm |
| ~ Internal: 5837mm x 2218 x 2596mm |
| Color code outside / inside: RAL9006 or similar |
| Steel Frame |
Frame |
Steel welded construction 3-5 mm intricately bent and rolled profiles |
1 |
| openings for forklift. 305 × 87 mm, 900 mm between the holes. |
| integrated water drainage gutters |
| internal insulated drain hoses ø 40 mm |
| Surfacing coating |
Coated with anti-corrosion primer and weather resistant alkyd dyes |
| Roof |
Steel |
Coated galvanized sheet metal, thickness 0.5 mm. Double barrier with gasket.
Transverse wooden rafters
Snow load: 1.53 kN (150 kg / m2) |
3 |
| Insulation |
Insulated 100 mm thick mineral wool, Flammability class A1 (EN 13 501-1), Thermal conductivity coefficient U = 0.36 (W / m2K). Steam insulation: 0.2 mm polyethylene film |
| Ceiling |
white, 10 mm laminated chipboard, emission class E1 |
| Wall |
Material |
Multilayer board (galvanized, painted steel / polyisocyanurate / galvanized, painted steel) |
4 |
| Steel |
0.3 - 0.5 mm galvanized, painted steel |
| Insulation |
layer polyisocyanurate, 80 mm, Thermal conductivity coefficient. U = 0.27 (W / m2K) |
| Floor |
Cement fiber |
OSB or cement fiber board, punched, 25 or 19 mm thick. For use in Class 2 wet in the environment |
3 |
| Insulation |
100 mm thick mineral wool. Flammability class A1 (EN 13 501-1). Thermal conductivity coefficient. U = 0.36 (W / m2K). Steam insulation: 0.2 mm polyethylene film |
| Steel |
0.5 mm galvanized, painted steel |
| Load |
Permissible floor load 2.04 kN (200 kg / m2) |
| Door |
Steel door |
900x2033 mm - 960 x 2033mm steel, insulated with stone wool, sound insulation Rw - 31 dB, with Lock |
1 |
| Electrical system |
Distribution box with earthing |
3 pcs. circuit breakers: C16A, C16A, C10A, current leakage relay 40 mA |
1 |
| Industrial plug |
Externally recessed CEE 32A external sockets, IP 44 |
2 |
| Wires |
Inside the wall cover, mounted in installation PVC trays, for lighting fixtures the wires are laid in the ceiling installation hoses |
1 |
| Light switch |
Double switch (white, each lamp separate switch) |
3 |
| LED light |
2x36 W, IP65 |
6 |
| Ventilation |
Ventilation grille with fan 100m3 / h, 13W, 0.12 A, IPX4, 40dB (1m) |
2 |
| Ventilation grilles for air supply |
3 |
| Heating |
Heating Convector radiator 2 kW with thermostat, IP 24 |
3 |
| Bathroom |
Toilet |
metal or ceramic, complete set |
1 |
| Wash basin |
metal or ceramic, complete set |
1 |
| Mirror |
glass |
1 |
| Shower |
~ 2180x940x920mm with curtain, complete set |
1 |
| Ventilation |
Ventilation grille with fan 100m3 / h, 13W, 0.12 A, IPX4, 40dB (1m) |
1 |
| Floor drain |
|
1 |
| Walls |
internal partitions |
2 |
| Door |
750x2040mm - 870x2040mm |
1 |
| Floor |
2mm PVC flooring |
1 |
| Plumbing introductions system |
Water supply |
25mm pipe |
1 |
| Water drain |
110mm pipe |
1 |
| Hardware accesories |
|
Screw, sealing strips, nuts, glue, etc |
