Product Description

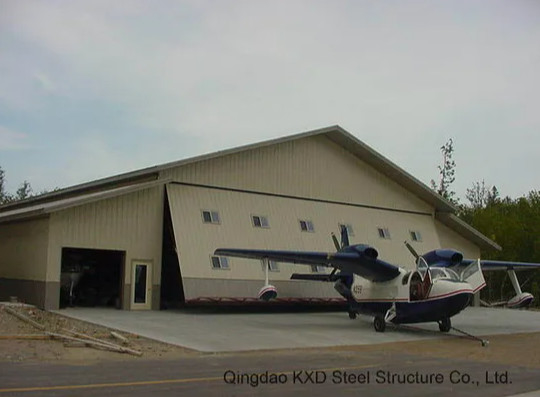

Fabricated steel structure aircraft hangar: efficient selection of aviation operation and maintenance
At a time when the aviation industry is booming, the construction demand of aircraft hangar is increasing day by day. And assembly steel structure aircraft hangar, with its unique advantages, has become the focus of industry attention.
A prefabricated steel structure aircraft hangar is a type of warehouse that uses steel structure components pre-manufactured and processed in a factory and then assembled on the construction site for the parking and maintenance of aircraft.
Its main features lie in "prefabrication" and "steel structure". "Prefabricated" means that the construction can be quickly assembled and disassembled, facilitating transportation and installation, and can shorten the construction period. The "steel structure" endows the hangar with advantages such as high strength, good seismic resistance and wind resistance. Meanwhile, the internal space is relatively spacious, which is conducive to the parking of aircraft and the conduct of related operations.
1.rapid construction, the construction period is greatly shortened
Prefabricated steel structure aircraft hangar adopts prefabricated components, which are standardized and refined in the factory, with strict quality control. After transportation to the construction site, the construction team only needs to be assembled according to the established design drawings, which are as efficient as building blocks. Compared with the traditional cast-in-place concrete hangar, there is no need to wait for the maintenance and hardening of concrete for a long time, which can compress the construction period by more than 50%, so that the hangar can be quickly put into use, seize the market opportunity, and strive for valuable time for the development of aviation business.
2.high space utilization rate, suitable for a variety of models
Its structure design is exquisite, internal space is orderly and open, there are no too many structural columns and other obstacles, can flexibly adapt to the parking requirements of different models. Whether it's a small business plane, a large passenger plane or a tall special purpose plane, it can find a suitable location in it. The height, width and length are highly designed. According to the size and future planning of the customer's fleet, the ideal hangar size can be customized to maximize space utilization, reduce the construction cost of unit area, and improve economic benefits.
3.Excellent structural strength, strong and durable
The steel structure itself has the characteristics of high strength and high toughness. After careful mechanical design and accurate processing and production, the overall structure stability of the hangar after assembly is very strong. It can easily withstand the attack of extreme natural environment such as strong wind and earthquake, and ensure the safety guarantee coefficient of aircraft in the hangar. The service life can reach decades, during which only regular maintenance is required, no large-scale structural transformation is required, providing solid guarantee for long-term and stable operation of aviation enterprises, and reducing the investment of later maintenance costs.
4. Flexible and adaptable to future development
With the continuous progress of aviation technology and the expansion of enterprise business, the functional requirements of aircraft hangar may also change. The assembled steel structure hangar is convenient for post-renovation, such as adding ancillary facilities and adjusting internal layout. The removable and replaceable parts enable the hangar to continue to upgrade with the pace of enterprise development, and fully meet the diversified needs such as the expansion of new aircraft maintenance workshop and optimization of aircraft parts storage area in the future. Avoid the waste of resources left idle due to the difficulty of reconstruction of traditional hangars, and ensure the long-term investment value of enterprises.
5. Environmental protection and energy conservation, practice the concept of green
In the selection of construction materials, the steel structure hangar can be recycled and reused, which reduces the burden of construction waste on the environment. In the construction process, due to the use of dry operation method, compared with the traditional wet operation, the discharge of dust and sewage has been greatly reduced, noise pollution has been reduced, and the ecological environment around the airport and the health of workers are considered. In line with the current trend of the aviation industry pursuing green and sustainable development, the social image of enterprises in environmental protection is improved.
Assembled steel structure aircraft hangar, which is efficient, flexible, strong and environmentally friendly, is a smart choice for modern aviation operation and maintenance, which helps aviation enterprises set up a steady flight in the fierce market competition and enjoy the future of flight.
Product Parameters
| Component |
Specification |
| Main Steel Frame |
Column |
Q235, Q355 (Hot Rollled / Welded H Section Steel) |
| Beam |
Q235, Q355 (Hot Rollled / Welded H Section Steel) |
| Secondary Frame |
Purlin |
Q235, Q355 C and Z purlin |
| Knee brace |
Q235 Angle Steel |
| Tie Rod |
Q235 Circular Steel Pipe |
| Brace |
Q235 Round Bar |
| Vertical and Horizontal Support |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system |
Roof Panel |
Steel Sheet
Insulated Sandwich Panel (EPS /Glass-Fiber / Rock-Wool / Pu) |
| Wall Panel |
Steel Sheet
Insulated Sandwich Panel (EPS /Glass-Fiber / Rock-Wool / Pu)
Decorative Panel (Glass Curtain, Aluminmum Panel |
| Accessories |
Window |
Plastic steel / Aluminium Alloy / PVC Window |
| Door |
Sliding Door / Electric Rolling Up Shutte / Metal Door / Personal Door |
| Rain-spout |
PVC |
| Live load on Roof |
In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Temperature |
Suitable temperature.-50°C~+50°C |
| Certification |
CE, SGS,ISO9001:2008,ISO14001:2004 |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting / Epoxy painting / Hot Dipping Galvanized |
Company Profile
Qingdao KXD Steel Structure Co.,Ltd has been an industry leader for prefabricated steel building with preeminence in custom designs and fabrication capabilities.With more than 30-year-limted warranty in steel building manufacturing and design,KXD's products have been exported to more than 80 countries with good quality and customer service.
Packaging&Shipping
The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.
Erection
Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.
Finished Projects Showcase
Welcome to visit us for further negotiate
After Sales Service
First:erection guidance and commissioning
1. after the delivery of the steel structure warehouse, provide professional installation team or detailed and clear installation guide manual to assist the customer in the correct installation.
2. if the customer has problems in the process of self-installation, our technical personnel will respond to the consultation within 24 hours and conduct remote guidance through telephone and video to ensure the smooth installation work.
3. for large-scale or complex steel structure warehouse installation projects, technical personnel can be sent to the site for on-site guidance and supervision, ensure that the installation quality conforms to the standards, and timely detect and solve the problems in the installation process.
Second:Quality assurance and maintenance services
1. define the quality guarantee period of steel structure warehouse. In general, the quality guarantee period of the main structure can be set for 20 years.
2. establish a quick response mechanism. After the customer discovers the quality problem and notifies us, we will get in touch with the customer within 24 hours, understand the problem in detail, and formulate the maintenance plan within 3-5 working days.
3. maintenance personnel have professional steel structure maintenance skills and rich experience, equipped with complete maintenance tools and materials, ensure the maintenance work is efficient and high-quality, and minimize the impact on the normal use of the warehouse.
Third:regular follow-up visits and maintenance suggestions
1. make regular return visits within six months after the delivery of the steel structure warehouse, understand the experience and problems encountered by customers in the process of use, and actively ask whether the structure is abnormal, such as shaking, abnormal noise, corrosion, etc.
2. according to the return visit situation, it provides targeted maintenance Suggestions for customers, including regular inspection of the connecting parts of steel structure, maintenance of corrosion protection coating, inspection and replacement of vulnerable parts, etc., so as to help customers extend the service life of the warehouse and ensure its safety and stability.
3. provide customers with a detailed maintenance manual covering daily maintenance points, regular inspection projects, maintenance cycles and emergency treatment measures under special circumstances, and guide customers to maintain their own maintenance.
Fourth:sustomer training and technical support
1. provide free training services for warehouse managers and operators of customers, The content includes the safe use specification of steel structure warehouse, equipment operation process (such as equipment lifting, ventilation equipment, etc.), structural characteristics and matters needing attention, etc., to ensure that customers can use the warehouse correctly and safely.
2. regularly hold technical exchange activities or online seminars to introduce the latest technology development, industry dynamics and our new products and services in the field of steel structure warehouse, so as to promote long-term technical cooperation and exchange with customers.
Fifth:customer feedback and continuous improvement
1. attach importance to customer feedback, establish a perfect customer feedback collection mechanism, and collect customers' opinions and Suggestions on product quality, after-sales service quality, usage experience and other aspects through questionnaire survey, customer visit and after-sales service evaluation.
2. carefully analyze and evaluate the problems and Suggestions of customer feedback, timely formulate improvement measures, and feedback the improvement results to customers, so that customers can feel our attention to them and the sincerity of continuous optimization of products and services.
If you have any requests, please feel free to contact us at any time. We are more than happy to provide solutions and establish cooperation with you.
