| Brand Name: | KXD |
| Model Number: | KXD-SS7 |
| MOQ: | 500 sqm |
| Price: | USD 69-100 per sqm |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |

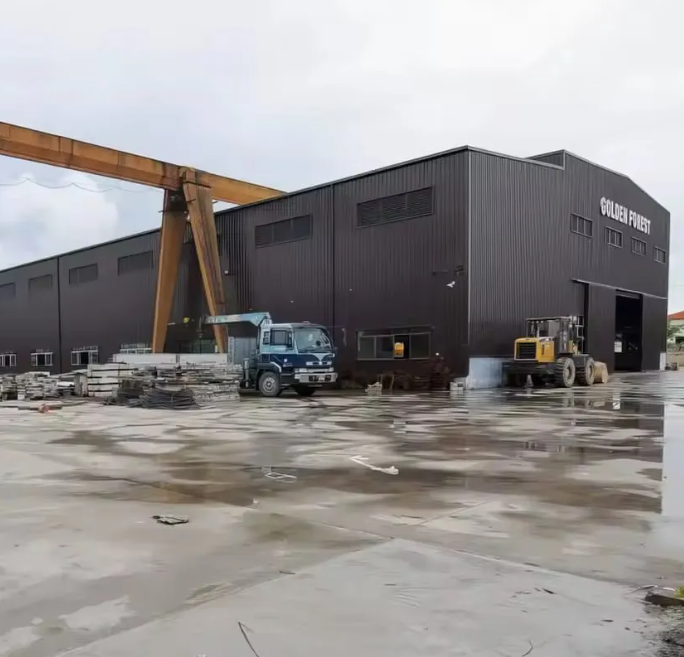

Steel structure building component system consists of primary H-section steel members, secondary purlins, roof and wall metal sheets (or sandwich panels) interconnected together, plus a full range of auxiliary building accessories.
We can equip the buildings with various structural and non-structural accessories per client demands, including skylights, wall windows, turbo air vents, ridge ventilators, ventilation louvers, roof monitors, doors and windows, steel trusses, mezzanine floors, exterior canopies, overhead bridge cranes (if required), thermal insulation materials and more.
All our steel buildings adopt customized design featuring light self-weight and high structural strength.
Over the past 40 years, steel building solutions have evolved to be more flexible, long-lasting and versatile. This makes steel one of the top-choice construction materials worldwide.
| Component | Specifications |
|---|---|
| Model | 1. Single slope, Double slope, Multi-slope. 2. Single span, Double-span, Multi-span, Single floor, Double floors. |
| Column and Beam | 1. Material Q355 or Q235 steel. 2. All bolts connecting. 3. Straight cross-section or Variable cross-section. |
| Surface | Hot-dip galvanized or painted. |
| Roof and Wall Panel | 1. EPS, PU, Rock wool sandwich panel. 2. Single colorful corrugated steel sheet 0.326~0.6mm thick, YX28-205-820 (820mm wide). 3. Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. |
| Brace | X or V as well as other type bracing made from angle, round pipe etc. |
| Accessories | Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc. |
| Window | PVC or Aluminum Alloy. |
| C or Z Purlin | Size from C120~C320, Z100~Z200. |
| Door | Sliding or Rolling up door. |
| Carrying Capacity | 1. Resisting winds and seismic impacts. 2. Bearing heavy snows. |
| Drawing | 1. Making the design and quotation according to your requirements very soon. 2. Making the quotation according to your drawings. 3. Giving you the satisfying opinion to your projects. |
| Certificate | ISO9001:2008, AWS certified welder passport, SGS, BV. |
Please provide us with the following information for an accurate quotation:
