| Brand Name: | KXD |
| MOQ: | 6 sets |
| Price: | US$1,200.00 |
| Payment Terms: | L/C,T/T |

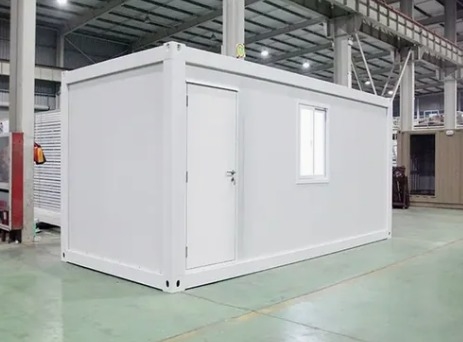

Product overview
Prefabricated container houses are prefabricated with six sided boxes in the factory, integrating structures, enclosures, and pipeline systems, and transporting finished products to the site. Use a crane to lift the modules to the foundation and quickly connect them into a complete building through bolts or welding.
The module supports side by side, end-to-end splicing, or vertical stacking, with horizontally expandable space area, vertically realizing multi story buildings, and can also be mixed and combined to form irregular layouts, flexibly adapting to temporary or permanent building needs such as exhibition halls, dormitories, apartments, etc.
Product parameters
| Detachable Container House (20 feet container) | ||
| Single Unit Detail | Length | 5950mm |
| Width | 3000mm | |
| Height | 2800mm | |
| Weight | 1300kg | |
| Roof Live Load | 0.5KN/m² | |
| Wind-Resisitance | 0.6KN/m² | |
| Seismic Resistance | 8 Grade | |
| Fire-proof Grade | A | |
| Service Life time | 10-15 years | |
| Installation Time | 4 labors with 3 hours for 1 unit house | |
| Max Floors | 3 | |
| Loading | 20' Container (7 units house) |
40' HQ container (17 units house) |
| Flat Pack Container House (20 feet container) | ||
| Single Unit Detail | Length | 6058mm |
| Width | 2438mm | |
| Height | 2896mm | |
| Weight | 2145kg | |
| Roof Live Load | 0.5KN/m² | |
| Wind-Resisitance | 0.6KN/m² | |
| Seismic Resistance | 8 Grade | |
| Fire-proof Grade | A | |
| Service Life time | 15-20 years | |
| Installation Time | 4 labors with 2 hours for 1 unit house | |
| Max Floors | 3 | |
| Loading | 20' Container (3 units house) |
40' HQ container (7 units house) |
Product applications
Prefabricated container houses play an important role in various fields due to their flexible and versatile layout and efficient installation characteristics.
• Construction Scene : As the office of the construction site project department, worker dormitory, and material warehouse, it meets storage needs and can be quickly transferred and reused.
• Business operation field : Used for chain stores, exhibition halls, etc., to quickly seize business opportunities by utilizing its convenient mobility.
• Residential living space : can be built into apartments, homestays, vacation cottages, etc., providing a unique living experience.
• Public service facilities : renovated into temporary medical stations, public toilets, community service centers, etc., to supplement urban infrastructure.
• Education and Research: Used as temporary classrooms, laboratories, and training centers to solve the problem of insufficient school space.
• Emergency disaster relief purpose : After earthquakes, floods and other disasters occur, quickly set up resettlement sites for affected people, providing emergency living and working spaces.
Product advantages
• Efficient and convenient : Factory prefabrication, on-site quick installation, shortening the construction period.
• Flexible and versatile : Multiple splicing methods to adapt to different spatial requirements.
• Economical and durable : Low cost, reusable, with a lifespan of up to 15 years.
• Efficient transportation: Modular design saves transportation space.
• Widely applicable: covering multiple scenarios such as construction, commercial, residential, etc.
If needed, please feel free to contact me anytime and I am always at your service.
