| Brand Name: | KXD |
| Model Number: | SF-00109 |
| MOQ: | 1 Piece |
| Price: | US$1,200.00-1,500.00 1 Piece |
| Delivery Time: | 1month |
| Payment Terms: | T/T |
|
Delivery time
|
5-30 days
|
|||
|
life time
|
20 years
|
|||
|
MOQ
|
1 set
|
|||
|
Door
|
930*2030Steel security d
|
|||
|
Color
|
customized(white for typical)
|
|||
|
Window
|
Aluminum Window/Plastic steel window
|
|||
|
Weight
|
1.3T
|
|||
|
Wall Material
|
50mm EPS/rockwool
|
|||
|
Floor
|
1.8mm glass magnesium board
|
|||
|

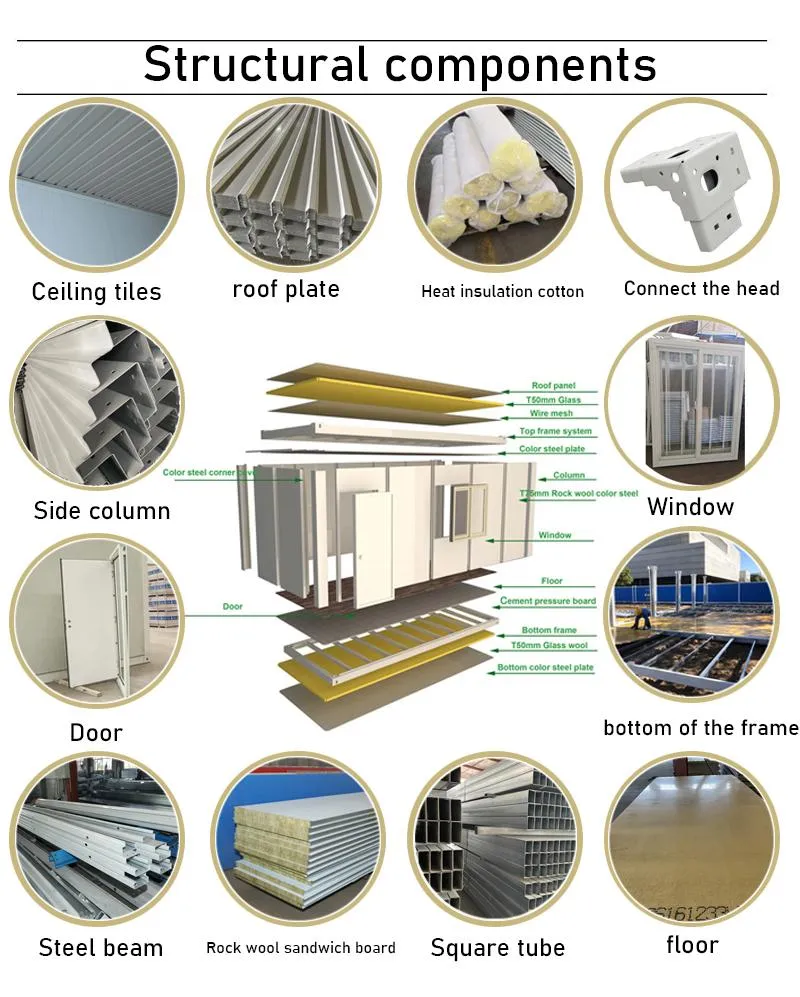

Technical parameters of folding room
|
||||||
|
type
|
Specifications
|
Material name
|
model
|
thickness
|
Company
|
number
|
|
basic features
|
External dimension (mm)
|
5800*2480*2560
|
||||
|
Internal dimension (mm)
|
5640*2320*2420
|
|||||
|
Folding state (mm)
|
5800*2480*380
|
|||||
|
Total mass (kg)
|
|
1200
|
||||
|
Design parameters
|
Structural design service life
|
10 years
|
||||
|
Ground live load
|
200kg/sqm
|
|||||
|
Roof live load
|
|
100kg/sqm
|
||||
|
Wind load
|
Grade 8
|
|||||
|
seismic fortification intensity
|
Grade 10
|
|||||
|
frame structure
|
Top frame
|
Q235B rectangular square tube
|
40*80*2.44m
|
1.8
|
root
|
5
|
|
Q235B rectangular square tube
|
20*40*5.9m
|
1.8
|
root
|
1
|
||
|
Q235B rectangular square tube
|
80*80*5.64m
|
1.8
|
root
|
2
|
||
|
P-tube
|
40*80
|
1.8
|
root
|
2
|
||
|
Galvanized sheet
|
5.75m*1.5m
|
0.8
|
block
|
2
|
||
|
Glass wool
|
12m*1.5m
|
0.75
|
rice
|
12
|
||
|
Ceiling board
|
0.37
|
block
|
3
|
|||
|
5.8m noodles
|
Q235B rectangular square tube
|
40*80
|
1.8
|
root
|
8
|
|
|
L-shaped steel plate (galvanized sheet)
|
1.165m
|
2
|
block
|
4
|
||
|
L-shaped steel plate (galvanized sheet)
|
1.180m
|
2
|
block
|
4
|
||
|
P-tube
|
40*80*5.84m
|
1.8
|
root
|
8
|
||
|
P-tube
|
1.05m
|
1.8
|
root
|
4
|
||
|
Hinge
|
High strength
|
1.8
|
individual
|
34
|
||
|
wallboard
|
1080*2.88m
|
0.3
|
block
|
8
|
||
|
Galvanized angle
|
1.08m
|
0.8
|
root
|
16
|
||
|
D-type E-type adhesive tape
|
5.9m
|
root
|
24
|
|||
|
2.35m noodles
|
P-tube
|
2640
|
1.8
|
root
|
4
|
|
|
2485
|
1.8
|
root
|
4
|
|||
|
2400
|
1.8
|
root
|
1
|
|||
|
860
|
1.8
|
root
|
1
|
|||
|
wallboard
|
950
|
0.3
|
rice
|
8.66
|
||
|
Galvanized angle
|
50#
|
0.8
|
rice
|
20.41
|
||
|
window
|
individual
|
2
|
||||
|
Hanging head baffle
|
block
|
8
|
||||
|
door
|
individual
|
1
|
||||
|
Black tape
|
rice
|
21.32
|
||||
|
Bottom frame
|
Custom sill
(galvanized sheet)
|
160*80*5.9m
|
2
|
root
|
2
|
|
|
80*80
|
1.8
|
root
|
2
|
|||
|
Hinge
|
High strength
|
individual
|
4
|
|||
|
C-section steel
|
1.8
|
root
|
14
|
|||
|
floor
|
1165*2690
|
15mm
|
block
|
5
|
||
|
Angle steel
|
30#
|
root
|
3.5
|
|||
|
Top of box
|
Integral frame coating
|
Electrostatic spraying / direct white plastic powder
|
||||
|
External roof
|
Galvanized sheet 0.8mm
|
|||||
|
Interior ceiling
|
Color steel veneer V / 830 / 0.37mm
|
|||||
|
wallboard
|
5.8m noodles
|
75mm composite board 0.3mm + glass wool (unit weight: 28KG) + 0.3mm
|
||||
|
2.48M noodles
|
75mm composite board 0.3mm + glass wool (unit weight: 28KG) + 0.3mm
|
|||||
|
floor
|
Fireproof glass magnesium floor 15mm
|
|||||
|
electrical
system
|
Electrical wiring, in strict accordance with the moisture-proof standard installation, all electrical products meet CE
certification. Connect the circuit according to the code of circuit engineering, indoor: incoming wire 4? GB soft copper wire, 1
20A circuit breaker, 2.5? 2 socket, 1 5-hole single opening socket, 1 5-hole socket, 1 LED lamp
|
|||||
|
anti-theft door
|
High quality security door (warm white) size: 960mm * 1970mm
|
|||||
|
window
|
920 * 920 single glass sliding window, plastic steel window, with protective fence, screen window, glass thickness of 4mm
(warmwhite)
|
|||||
Our company offers you various kinds of steel constructions, which would meet all your requirements. Our company are professionally engaged in steel structure design,manutacture and installation. Our specialists have extensive experience in working with different type constructions. Steel constructions are manufactured by using drawing tools, in accordance with customers' all requirements and quality standards.
