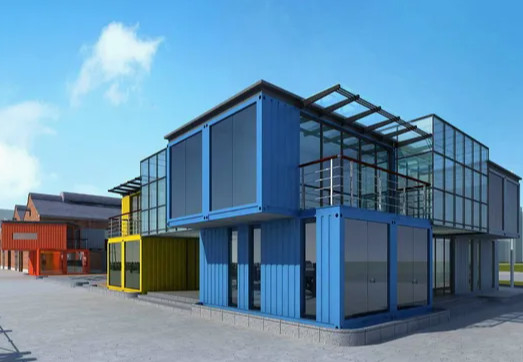

Prefabricated modular container hotels are a new type of hotel construction method that consists of multiple prefabricated modular containers. These containers are processed and manufactured by the factory, and then installed on the construction site to form a complete hotel building. This hotel construction method has many advantages, such as saving construction time, reducing construction noise, and improving construction quality.

Compared to traditional buildings, prefabricated modular container hotels are built faster. Because containers are prefabricated in the factory and only require simple installation and splicing on the construction site, the construction time can be reduced to half or even less of traditional buildings, thereby saving a lot of time and cost.

The construction noise, dust and other pollutants generated during the construction process of prefabricated modular container hotels are greatly reduced, and the impact on the construction site environment is also relatively small. Therefore, this hotel construction method is more in line with the concept of environmental protection.

The construction quality of prefabricated modular container hotels has also been guaranteed. When constructing containers, modern production technology and precision production equipment are used to ensure quality. This also ensures the overall architectural quality of the hotel, which can meet the comfort and safety requirements of guests.

Prefabricated modular container hotels have room for appreciation. With the rapid development of the global economy, the tourism market is also constantly expanding, and people's requirements for tourism accommodation are also increasing. Prefabricated modular container hotels have unique design and practicality, which can attract more tourists. With the growth of the tourism market, the appreciation space of hotels will also be increasing.


Have a real estate project? We have the team of designers and manufacturers who will make it happen. Enjoy a faster return on your investment by opting for modular construction.

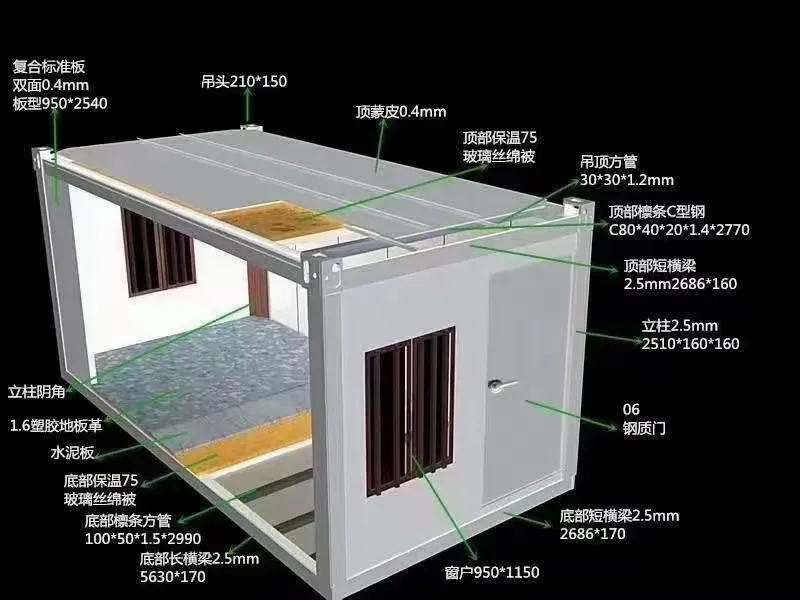

The modular container unit is designed as a light solid construction consisting of floor and roof frames and corner profiles. The system enables compounding of individual containers in longitudinal and transverse directions without limits. It also enables compounding of containers in 2 floors in height (ground floor + first floor), or in 3 floors in height for warehousing of these containers (ground floor + 2 floor). The container houses are made of light insulation panels and offer pleasant climate in the interior due to their building and physical properties.

Dimensions and Tare (ISO Standard 1161)
External length 20'/ (inner length) 20′: 6.055m/(5.851m)
External width/ (inner width): 2.435m/(2.231m)
External height/inner height: 2.790m/(2.510m)
Tare: 1950 Kg

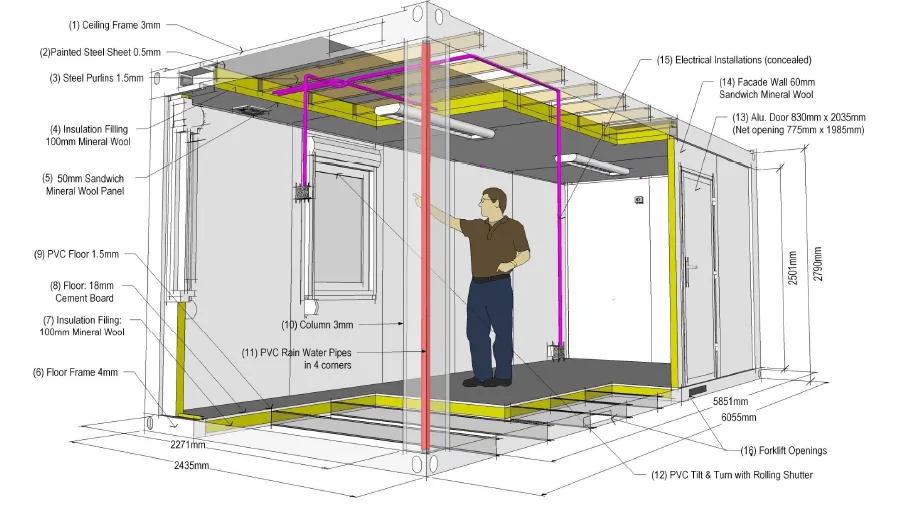

(1)   Steel Framework

Primary frame: cold formed steel profiles to as columns and girders of roof and chassis in a thickness of 3 to 4mm
Secondary frame: rectangular hollow steel to be as secondary beam at the roof.

Fittings:8 corner fittings (dimensions according to ISO standard 1161), rainwater pipe in the roof framework, plate thickness of 10mm excluding top corner fittings of the top kit of each bundle (20mm thickness)

Forklift openings: openings for fork-lift pockets in the floor framework, dim 88*250mm in a distance of 1700 mm

Surface finished: shot blasting, epoxy primer coating in a thickness of 30 μm, finished alkyds  coating in a thickness of 60-70 μm. Total dry paint 90~100 um thickness.


(2)   Floor Chassis Composition
External wainscot: flat galvanized steel sheet metal in a thickness of 0.5mm.

Insulation filling: noncombustible mineral wool in a thickness of 100 mm among hollow steel transverse supports. Mineral wool density:50 Kg/m3

Steam blockade: PE foil in a thickness of 80 μm
Cement board:
CCA boards (Cellulose Fiber Cement Board, Autoclaved)
in a thickness of 18 mm Density: 1500Kg/ m3

Reaction to Fire Classification: A1 certified ISO EN 13501

PVC flooring covering in a thickness of 1.5mm

Permitted loading: 4 .5 KN/m2 or 6 KN/m2 (reinforced under-structure)
K value: 0.45 W/ m2K
R value (Thermal Resistance) = 2.2 m2K/W

(3)   Roof Composition
(50mm sandwich mineral wool panel)
External wainscot: 1.6 mm thick corrugated "ISO" roof, CORTEN made, and shot blasted& painted.
Steam blockade: PE foil in a thickness of 80μm
Insulation filling:noncombustible mineral wool in a thickness of 50 mm among 30X50X2 mm steel square bars. Mineral wool density: 50 Kg/ m3
Ceiling made of 50 mm thick mineral wool sandwich panels screwed to the steel beams of the roof frame. Sandwich panel composition:
Meteor water outlet: 4 each of PVC rainwater pipes, diameter 50mm in corner pillars
K value: 0.45 W/ m2K
R value (Thermal Resistance) = 2.2 m2K/W
Galvanized and painted steel sheet metal on both sides. Steel thickness: 0.5mm, white color

Insulation filling: mineral wool in a thickness of 60mm, density 120 Kg/m3

Permitted loading (standard roof) : 2.1 KN/m2

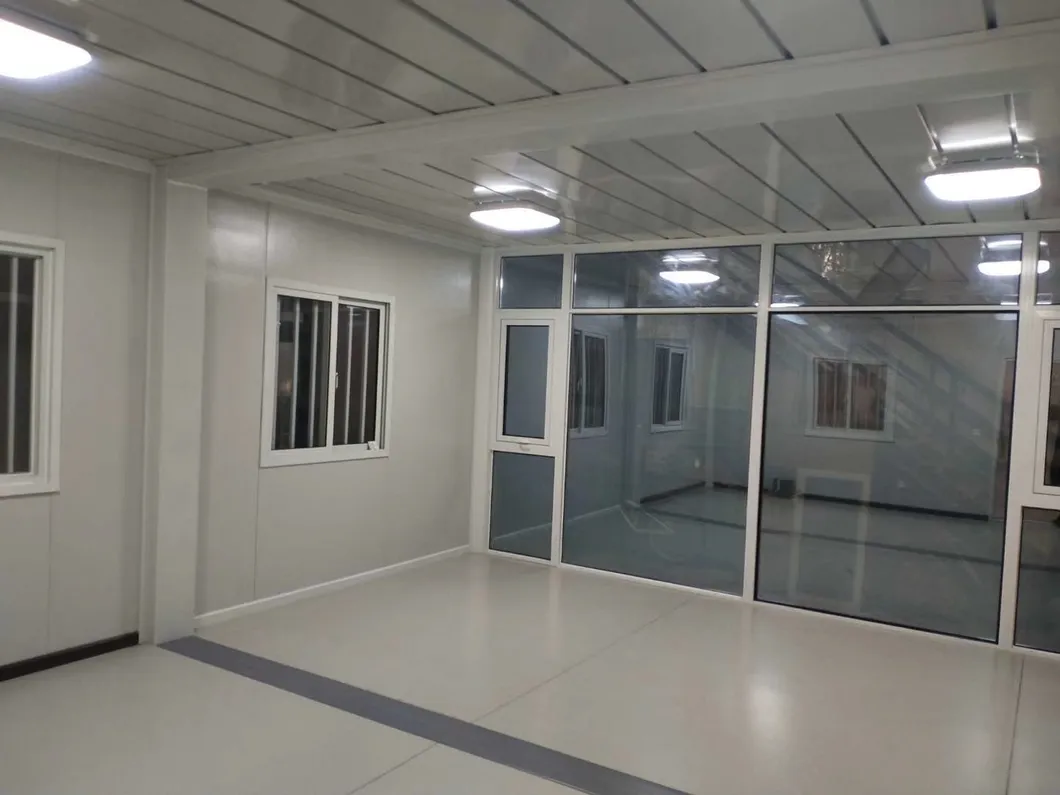

(4)Facade Walls

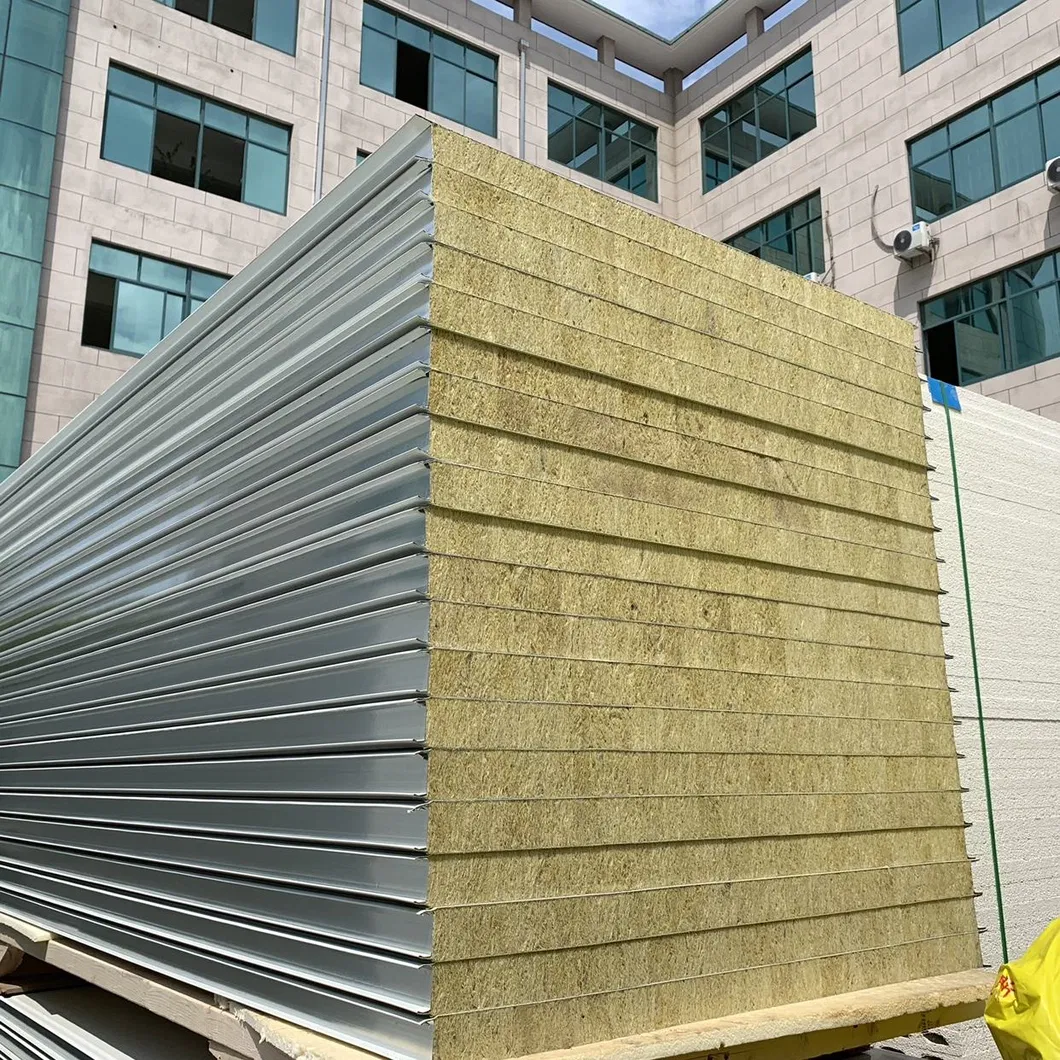

Sandwich mineral wool
Side panels' width:1140mm; total panel thickness: 60mm.
Five panels fit into the long side and two panels fit into the short side of
container and they are fully interchangeable
Composition:
External wainscot:
Galvanized and painted steel sheet metal in a thickness of 0.5mm, white
color
Insulation filling:
Mineral wool in a thickness of 60mm
Inner wainscot:
Galvanized and painted steel sheet metal in a thickness of 0.5mm, white color.
Permitted loading: 100 kg/m2
Mineral wool density: 120 Kg/m3
K value: 0.71 W/ m2K
Fire rating: 36 minutes according to GB 12955-91 and 20 minutes according to BS 476

(5)Doors
External Aluminum door. Single fold, 40mm thick, made of:
1.    a frame in pre painted aluminum
2.    hot galvanized and pre painted steel sheets (inside and outside)
3.    insulated with PL (polystyrene)
4.    Net opening dimensions: 820 x 1985 mm; furnished with a handle lock with 3 keys.
Composition:
1.    External frame: galvanized and painted steel profiles, thickness 0.7 mm
2.    External and internal wainscot: galvanized and painted steel sheet metal in a
thickness of 0.7mm.
3.    Equipped with 3 hinges, lock and anti-burglary flange
4.    Insulation filling: non-combustible mineral wool in a thickness of 50mm.
5.    Mineral wool density: 60 Kg/m3
Windows
Made of PVC, white color, with dimensions 800 to 900 mm× 1100 to 1200mm,
1.    glazed with double layer glass in a thickness of 4/15/4mm, with "tilt & swing"
2.    Mechanism with aluminum made rolling shutters

(5) Electrical Installations
Standard: UK Specification
Voltage: 220 V, 50 Hz single phase
Network connections: suitable-connection plug/socket, 3-5 poles 32 A +, 220V ~ mounted on the top frame in upper corners of a shorter side wall
Inner distribution system: cables of suitable dimensions (6, 2.5, 1.5 mm2 for 220 voltage, flush-mounted.
Protection: protective current switch (40 A +/2E/4E-0,03A), automatic fuses (C-characteristics) of suitable power (6A, 10A, 16A, 20A)
Earthing: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame
Fittings:
Electric distribution box - 1×40A+/2E/4E-0.03A (protective current switch), 1×10A & 2×16A as standard lay out (automatic fuses)
Double fluorescent lights 2×36W 220V- 2 each IP 65 rated
Option: "PRC" neon lights IP 65 rated
Low level flush-mounted illuminated double sockets 220 V/110 V - 3 each
Low level flush mounted illuminated double socket 220V/110V with double SUB port - 1 each
Flush-mounted switches 220 V/110 V - 1 each
(6) Possibilities of Container Mounting
On a flat solid surface (asphalt, concrete,)
On point foundations (concrete cubes, dimensions 30/30/30cm, 6 pc/20' container)
On band foundations (concrete band, 30cm wide, on the container circumference)
Certification: Dimensions, weight, payload and stacking are RINA certified. Certificates available for components.
Delivery: Containers can be delivered assembled or individually - in kits 648 mm high.4 kits can be bundled in packages 2591 mm high (ISO dimensions)

The prefab house is based on light steel as the skeleton, sandwich panels as the maintenance material, with standard modulus (1.8m) or space combination according to customer needs.

The components are connected by bolts, which can be disassembled, movable, reusable, and generalized. It is an industrialized building product. It is distinguished from the building structure and is mainly divided into built-in skeleton structure and external skeleton structure.
Application field

Due to the needs of urban construction, prefabricated houses are mostly used for temporary buildings on construction sites, such as workers' dormitories, offices, canteens, bathrooms and warehouses, followed by engineering camps, single-story and two-story small houses.

Product advantages

1. Easy installation and transportation
It can be transported as a whole or split. The water and electricity lines have been prefabricated in the factory in advance, and can be used when transported to the destination without secondary decoration.

2. Durable and economical
Steel frame structure design, the structure adopts special cold-formed galvanized steel components, earthquake resistance level 8, wind resistance level 12, service life of more than 20 years

4. Fast installation speed, green and environmental protection
Zero construction waste, fast construction and installation, and dry work throughout the process

5. Thermal insulation
The wall panel adopts double-sided sandwich panel, which can play a good role in thermal insulation

technical parameter

Wind resistance: level 11 (wind speed≤125.5km/h)
Earthquake resistance: level 8
Roof live load: 0.5kn/Sq.m
External wall and partition wall heat transfer coefficient: 0.35 Kcal/Sq.m hc
Corridor live load: 2.0kn/Sq.m



Project cases

With excellent product quality, superb construction team, stable supply and high-quality service, it has quickly opened up overseas markets, and has cooperated with China State Construction, China Railway, China Railway Construction, China Communications Construction, China Power Construction, Sinopec, CNOOC, China Metallurgical Group and others have established long-term cooperative strategic partnerships and accumulated a large number of project cases.

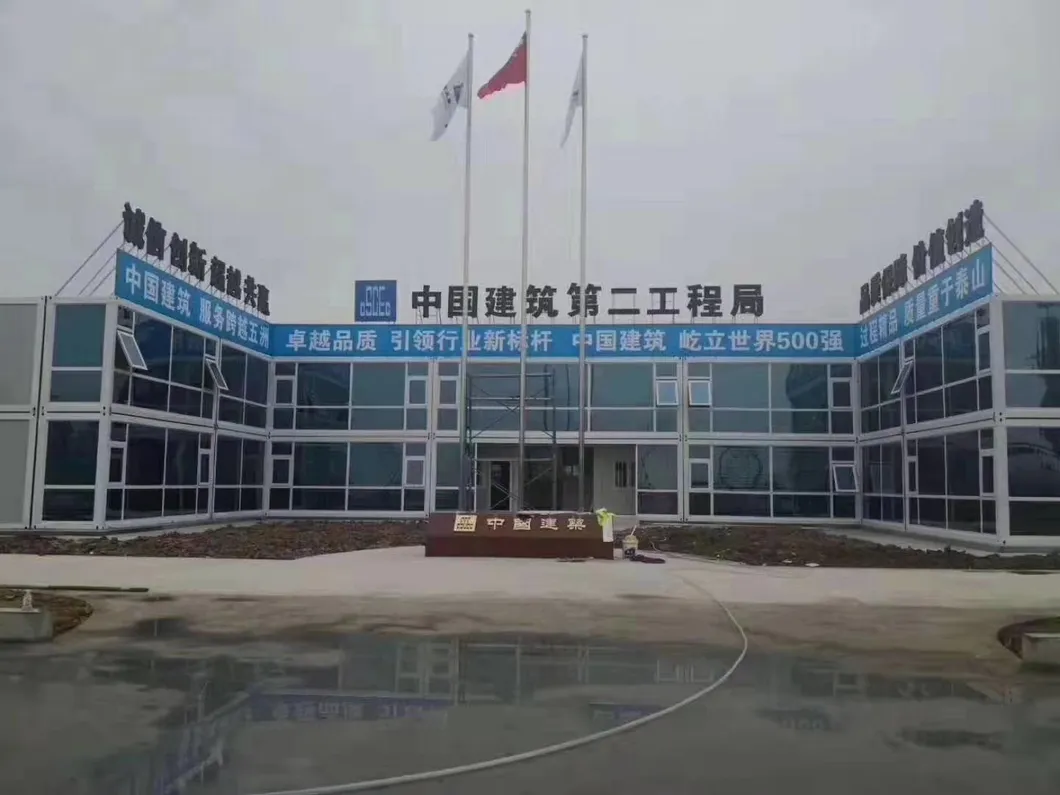

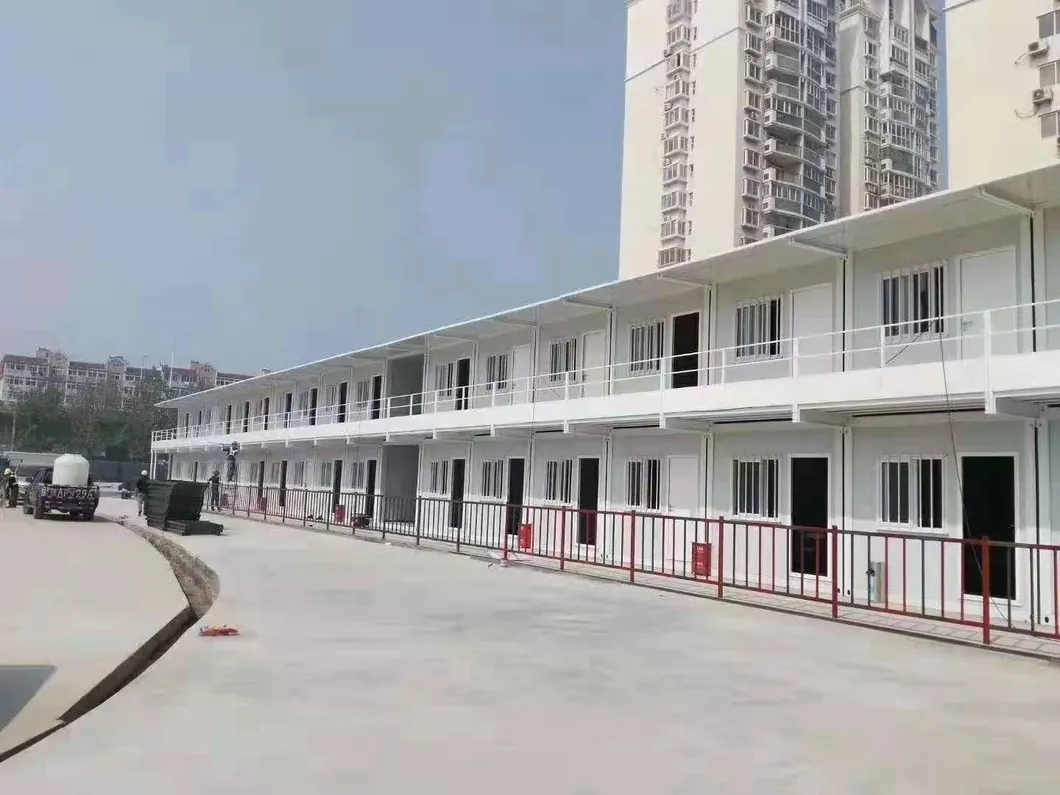

China Construction Splendid City Project

The main products of the project include: prefabricated houses with an area of 16,856 square meters, and the main functional areas include offices, conference rooms, dormitory buildings, etc.

Qingdao Metro Line 8 Slab Housing Project

In this project, KXD Steel cooperated with a number of construction companies to provide prefabricated houses with a total area of about 15,000 square meters, offices and dormitory buildings with 2 floors; on-site office buildings such as single and double-storey prefab buildings, with rich and complete functions.

Saudi Arian company camp project

The labor dormitory camp project of the Saudi Bin Laden Group is a dormitory camp for the engineering workers of the Saudi Women's University of the Bin Laden Group. This labor camp adopts a total of 45 sets of double-layer color steel plate prefabricated houses, each with 40 houses, and each house has 8 workers. Each house is 912m3, totaling about 36,500 square meters.

China International Convention and Exhibition Center Project

The China International Convention and Exhibition Center project is a municipal key public service project within the Qingdao High-tech Zone. It is positioned as a competitive fifth-generation exhibition economic complex in the Bohai Rim region. KXD Steel provided it with prefabricated houses 26316 Sq.m, 168 packed box rooms.

Mining Industrial camp project in Guinea

The main products of the project include: 30,000 square meters of prefabricated houses. The main functional areas cover offices, conference rooms, dormitory buildings, canteens, indoor gymnasiums, workshop areas, etc.

KXD's H Section Manufacturing Equipment and Process
Steel plate cutting→H section assembly→Automatic welding-H section strengthening→Assembly→Manual welding→Shot blasting-Painting→
Storage

I.Steel plate cutting
The H section  steel plate should be checked again by the factory and shall be applied under the condition of up to design and specified requirements after checking. Steel plate cutting should be aimed at quality guarantee and material saving. For each process like plate cutting,H type assembly, components assembly and pre-assembly should be carried out by profession setting-out worker precisely on processing surface and assembly sample plates.To guarantee the accuracy of the components'geometrical dimension,tolerance of form and position, angle and contact surface,inspection is necessary by inspector after setting out.In order to ensure the cutting quality,the surface of the ultra-thick plate is subjected to the surface carburizing hardness test before cutting.The CNC cutting equipment is preferred for cutting.The high purity 98.0% acrylic gas and 99.99% liquid oxygen gas are used to guarantee the smoothness and flatness of the cutting surface without notches and slags.The groove is cut by a special imported cutting machine.

Equipment name: Portable CNC Fire-cutting machine
Model No.: CNCDG-1530
Application feature: steel plate cutting(5-100mm plate cutting thickness), beveling of the edge.Advantageous in small equipment and easy-to-move. Mainly for cutting regular and irregular small components and beveling of the plate.

Equipment name:Straight flame cutting machine
Model No.:DZCG-4000A
Application feature:steel plate cutting(5-100mm plate cutting thickness),Y flange plate, web plate cutting, effective cutting width: 3200mm

Equipment name:CNC cutting machine
Model No.:CNC-4000C
Application feature:steel plate cutting(5-100mm plate cutting thickness),Y flange plate,web plate and irregular component cutting,effective cutting width: 3200mm

Equipment name: Radial drilling machine
Model No.:Z3050*16/1
Application feature:Maximum drilling diameter φ50mm,Mainly for processing of component bolt-connection holes

Equipment name:Puncher machine
Model No.:JH21-400
Application feature:Maximum stamping pressure-400 ton,Mainly for plate punching, blanking, bending and shallow stretching

Equipment name:Shearing machine
Model No.:Q11Y-25*2500
Application feature:cutting width 2500mm and cutting thickness 3-25mm

II.H section steel assembly
The assembly process is set up on the imported H section production line.4 hydraulic positioning system press firmly against between the upper/lower flange and web plates in position. The adjust the parallelism of the flange plates and perpendicularity between flange and web plates and get them fixed after. The fixing welding should adopt C02 gas shielded welding.

Equipment name:H section steel assembly machine
Model No.:Z20B
Application feature:mainly for H type assembly u,flange width 150-800mm,web height 160-2000 mm

III.Automatic welding
The H section steel members will be hoisted into the gantry-type submerged arc automatic welding machine for welding.The welding process should be carried out in accordance with specified welding sequence and regulation parameters.Preheating, which uses the electrical heaters, is necessary for the ultra-thick plates of components.The set temperature shall be determined based on the specified one.Please see factory welding process documents for detail.

Equipment name: Gantry-type submerged arc automatic welding machine
Model No.:LHA5ZB
Application feature:Mainly for assembly welding of H section steel whose maximum cross section up to 800mm×2000mm

IV.H section steel strengthening machine
H section steel strengthening process: Correction of flange flatness by using H section steel flange plate strengthening machine.Flame-correct the perpendicularity between the H section flange and web plate under special circumstances and then correct the side bending of the H section steel. The flame temperature should be controlled under the range of 600~800ºC.

Equipment name:H section steel strengthening machine
Model No.:YTJ60B
Application feature:Mainly for correcting the deformation of I beam or H section steel flange plate during welding process,flange width 200-1000mm, flange thickness≤60mm, web height≥350mm

Equipment name:H section flange strengthening machine
Model No.: HYJ-800
Application feature:Mainly for correcting the deformation of I beam or H section steel flange plate during welding process,flange width 160-800mm,flange thickness≤40mm,web height≥160mm

V.Simulated assembly of component
1.Get familiar with component shop drawing and technical requirements.
2.The model components need to re-check by related department after making and finalizing of the model components and then to assemble.
3.Accurate mark-up
4.Inspect the component after first assembly.For multi-group components, pre-assembly for the first group and then batch assembly after qualified test.

VI.Manual welding

VII.Shot blasting
Equipment name:10-ramming heads shot blasting machine
Model No.:QH1525
Application feature:Mainly for shot blasting of section steels including H section steel, welded members and steel plate,10 ramming head; Machine entry size:1500Í2500 and member at 1200Í2000 size could pass the machine at once; up to Sa2.5 Grade.

VIII.Painting
The surface of the members should be in even,flat, glossy and full painting without manifest of cracking, peeling and pin holing.The color and coating thickness should also meet design requirements.If there is no certain requirements,the following standards should be followed:thickness is 150μm indoor while 125μm outdoor.The allowable deviation is -25μm.The allowable deviation of dry paint film thickness for each-time painting
Two coats of primer:thickness being40±5μm; Two coats of finish paint:thickness being 60±5μm.

Equipment name:Airless sprayer
Model No.:CPQ9CA
Application feature: Derived capacity:56 L/min,Air consumption:50~1200 L/min.Mainly for surface paint of structural members, Pressure ration: 32:1
