| Brand Name: | KXD |
| Model Number: | KXD-T078 |
| MOQ: | 1 Set (MOQ) |
| Price: | US$1,800.00-2,800.00 |
| Delivery Time: | 35days |
| Payment Terms: | L/C,T/T |
Plate assembly container type room is a kind of prefabricated house, which is mainly composed of high quality galvanized steel structure system and sandwich plate as the main building materials, sandwich plate can be used for insulation of polystyrene foam (eps), rock wool or glass wool and other materials. The standard size of each container unit is usually 20 feet, and the roof and floor of the house are completed before shipment, and the transportation is in a flat packaging state. It can also be combined to form larger houses and stack up to 3 or 4 floors .
Performance advantage
1.modular design
Adopt container as the basic unit, adopt standardized size and structure, prefabricated production in the factory, each module can be connected freely in the length, width and three dimensions by bolt and other connectors, Forming a variety of different architectural layout and spatial forms can meet the needs of different users for housing functions and area .

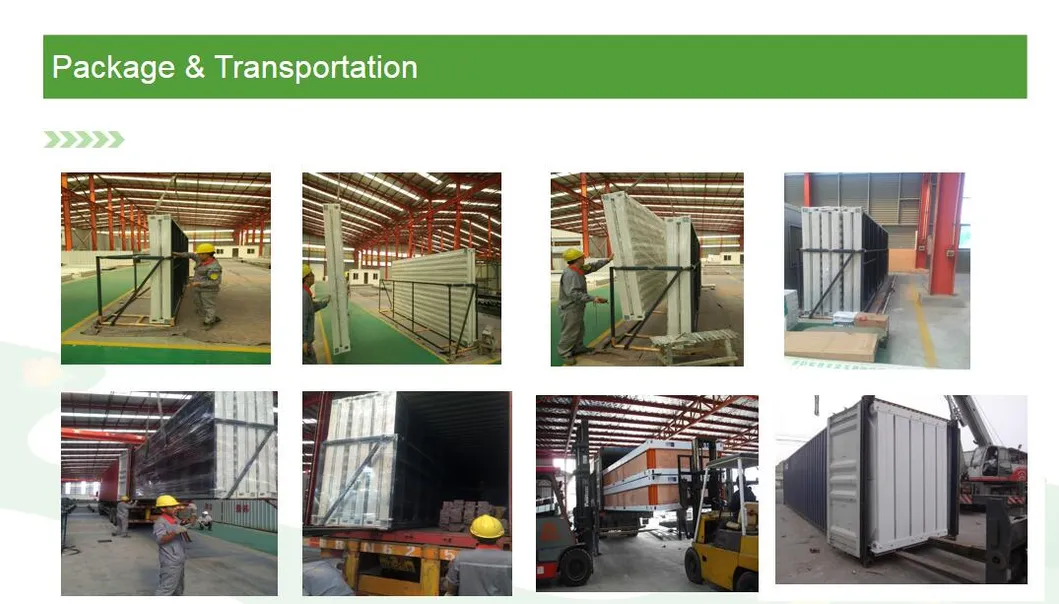

2. Convenient transportation
Due to the form of flat packing, the building components take up little space in the transportation process, high transportation efficiency, can effectively reduce the transportation cost. Four sets of flat packing can replace the shipping space of a 20-foot container, saving time and cost, and facilitating the transportation of houses to various construction projects, remote areas or places in urgent need of temporary housing, such as construction camps, temporary accommodation points, emergency rescue sites, etc.

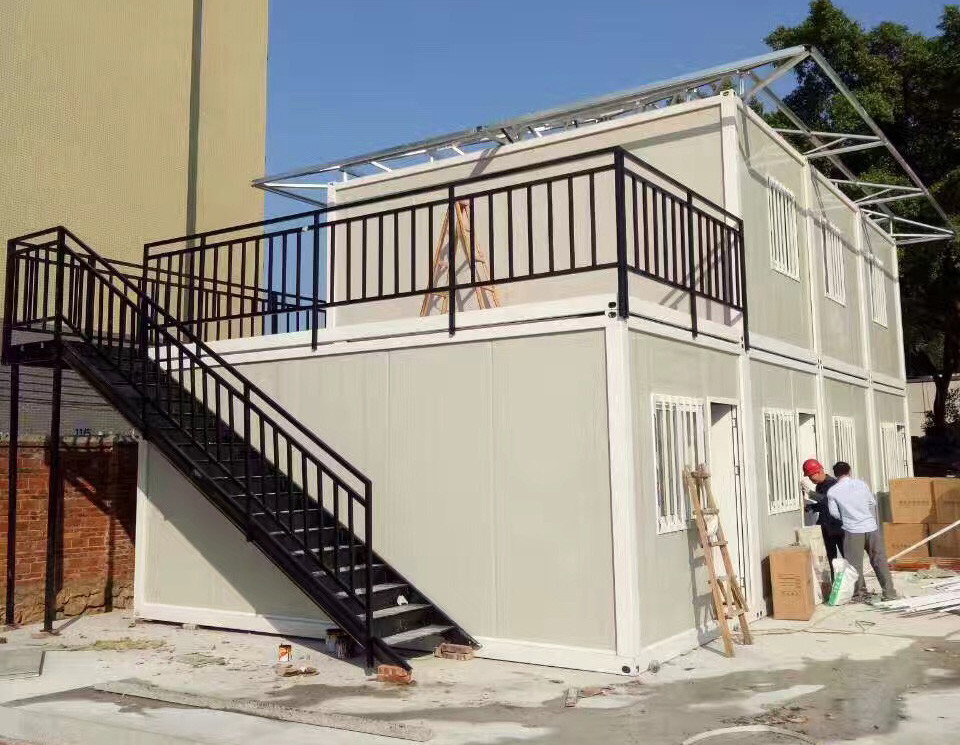

3.Rapid assemble
When assembled on site, there is no need for large machinery and equipment, only simple tools and a small number of personnel can be completed. Its assembly process is simple and fast, which greatly reduces the building time of the house. Usually, a standard 20-foot plate modular container room is installed on the site for only 1-2 days, which can quickly provide available living or working space and meet all kinds of temporary or urgent needs.
4. Reusable
The components of the house are removable and reassembled with high flexibility and repeatability. When the use location or functional requirements change, the house can be removed and relocated to new locations to be reinstalled, reducing resource waste and environmental pollution, and providing users with greater convenience and economy .
5.The structure is stable and durable
The use of high-quality galvanized steel structure system, with good strength and stability, can withstand all kinds of bad weather and transportation conditions, to ensure the safety and reliability of the house in the process of use. Its design service life can reach more than 20 years, and it can withstand natural disasters such as magnitude 8 earthquake and magnitude 12 typhoon under normal use .
6.Good insulation and sound insulation performance
By using appropriate sandwich sheet materials, such as rock wool, glass cotton, etc., the insulation and sound insulation effect of the house can be effectively realized, providing residents with a comfortable indoor environment, whether it is hot summer or cold winter, Both can keep indoor temperature relatively stable, reduce the transfer of indoor and outdoor heat, and also effectively reduce the interference of external noise on indoor environment.
7.Complete function
In addition to the basic living function, but also according to the needs of users to equip a variety of supporting facilities, such as water and electricity system, sanitary ware, kitchen equipment, air conditioning, network, etc., to achieve instant play, provide people with convenient, comfortable living or working conditions, to meet the requirements of different scenarios.

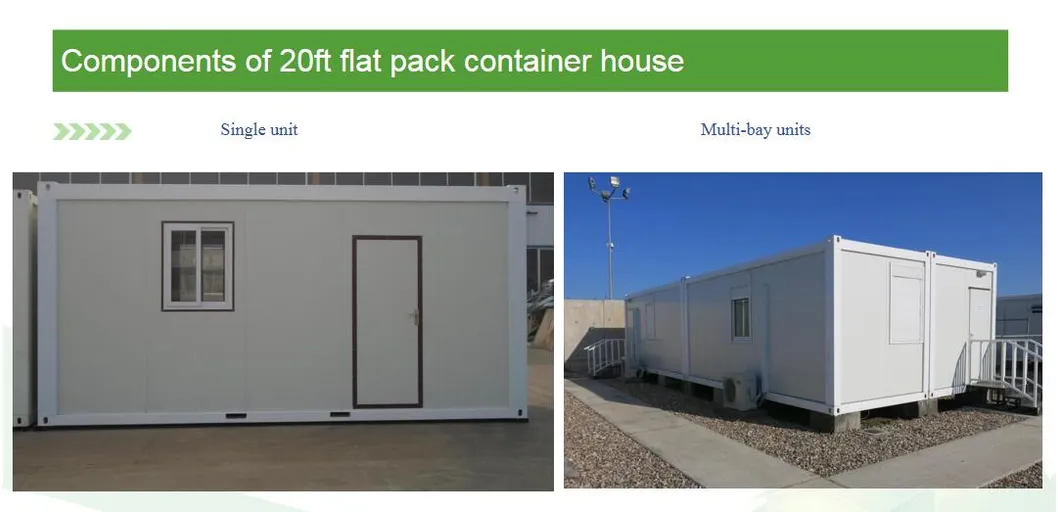

Flat pack fast assemble container home
Company Profile
Our company offers you various kinds of steel constructions, which would meet all your requirements. Our company are professionally engaged in steel structure design,manutacture and installation. Our specialists have extensive experience in working with different type constructions. Steel constructions are manufactured by using drawing tools, in accordance with customers' all requirements and quality standards.
Our aim is highest quality, competitive price, and best service to satisfy our customers, we will always keep on creating and innovation, build a best credibility and highest reputation company in the world.
We have our own technical teams, so we can design, fabricate and install this steel structure workshop according to customers requirement.
Its very easy to install the steel structure workshop in your there according to our installation drawings. Also, we will supply all technical support during installation and after-sale service.
We have pretty good preservative treatment on this steel frame as follows,
A. Clean the steel( reach to SA2.5 Grade, China Code), then we will spray paint: 2 layer epoxy zinc rich primer and 2 layer antirust paint( total thickness: 100-120um); Warranty period: 18-20 years under normal conditions.
B. Hot-dipped galvanized, when the thickness of parts is less than 5mm, thickness of hot-dipped gal is more than 65um; When equal to or more than 5mm, that is more than 86um. Warranty period: 45-50 years under normal conditions.
You can choose freely the roof and wall panel, included both types:
A. Heat-Insulating material( EPS, Glass wool, Rockwool, PU, etc. )
They have different thickness(50mm, 75mm, 100mm, 200mm), density, color, type, etc.
B. Single color corrugated steel sheet( Steel Material: Aluminum- Zinc sheet):
They have different thickness( 0.3-0.7mm), color, type, etc.
You can choose freely the material of door and windows
We also have so many accessories, for example, steel bracket, bolts, self-drilling screw, rivet, rainspout, trimming sheet, glass cement, etc. You can buy them according to your exact requirement.
Light Steel Structure construction Prefabricated Workshop/warehouse
| Name |
Specification |
| Length |
Single slope, double slope, muti slope |
| Width |
Single span, double-span, Multi-span |
| Height |
single floor, double floors |
| Column |
Q235, Q345 welding H section steel |
| Beam |
Q235, Q345 welding H section steel |
| Purlin |
Q235 C channel or Z channel |
| Knee brace |
Q235 angle steel |
| Vertical and transversal support |
Q235 angle steel, round bar or steel pipe |
| Tie bar |
Q235 steel pipe |
| Brace |
Q235 round bar |
| Sleeve |
Q235 steel pipe |
| Cladding system |
sandwich panels (EPS, PU, Fiber glass wool etc.) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze. |
| Partition wall |
sandwich panels (EPS, PU, Fiber glass wool etc.) |
| Second floor |
floor deck |
| Second floor office |
fiber cement board floor panel or checkered steel plate |
| Stair: |
Q235 steel structure with checkered steel plate |
| Ventilation: |
ventilator |
| Door |
sandwich panel sliding door or roller door |
| Windows |
PVC or Aluminum |
| Water |
Provided plan, design and technical service. |

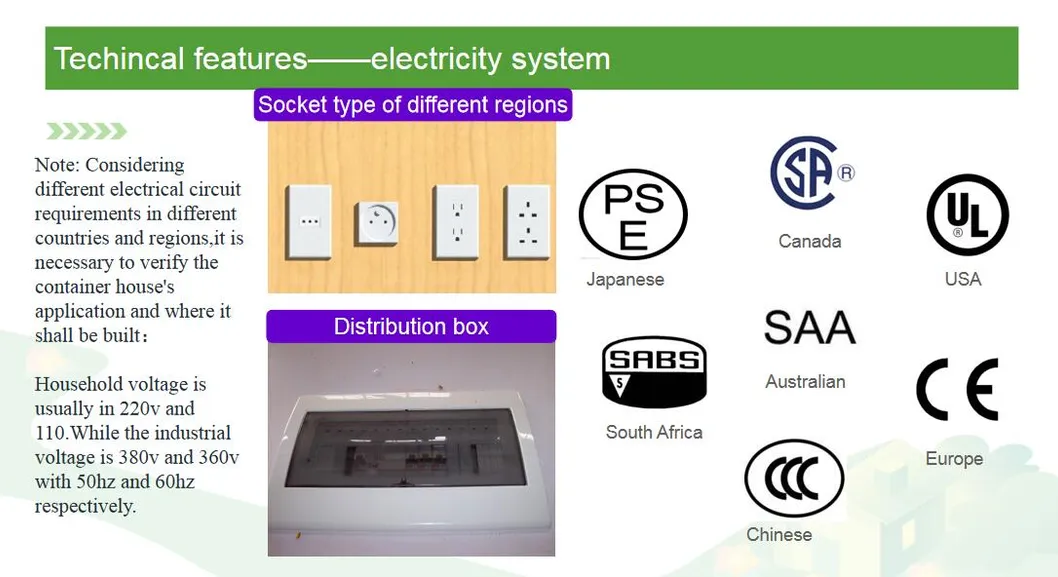

| Electricity |
Provided plan, design and technical service. |
| Gutter |
stainless steel or color steel sheet |
| Rainspout: |
PVC |
| Live load on roof |
In 120kg/Sqm (Color steel panel surrounded) |
| Wind resistance grade |
12 |
| Earthquake-resistance |
8 degree |

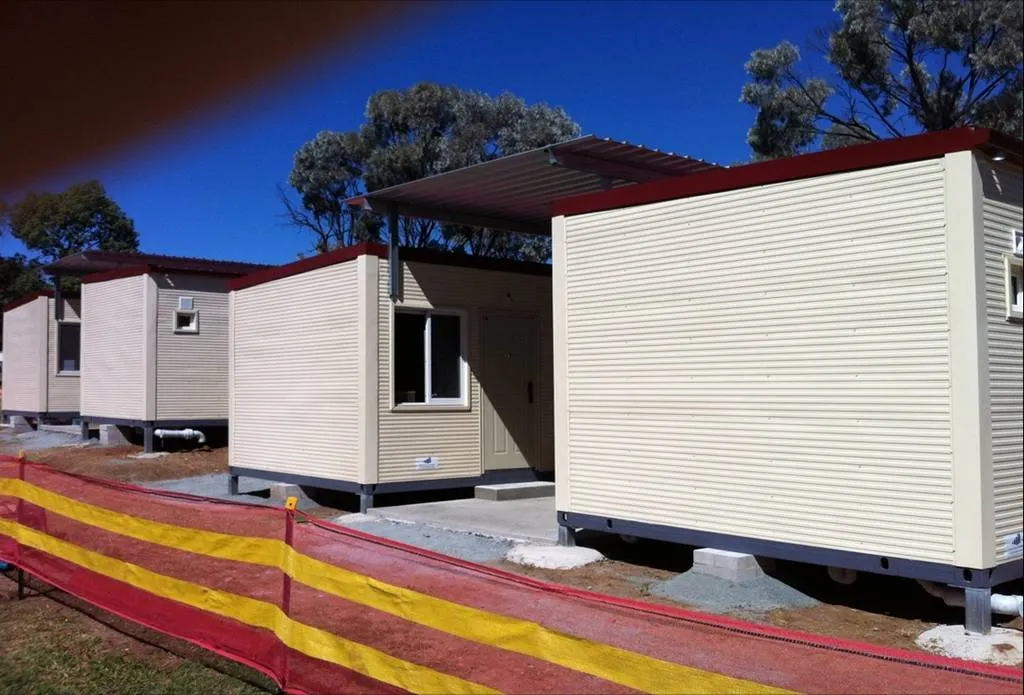

Finished Projects Showcase
Welcome to visit us for further negotiate
After Sales Service
First:erection guidance and commissioning
1. after the delivery of the steel structure warehouse, provide professional installation team or detailed and clear installation guide manual to assist the customer in the correct installation.
2. if the customer has problems in the process of self-installation, our technical personnel will respond to the consultation within 24 hours and conduct remote guidance through telephone and video to ensure the smooth installation work.
3. for large-scale or complex steel structure warehouse installation projects, technical personnel can be sent to the site for on-site guidance and supervision, ensure that the installation quality conforms to the standards, and timely detect and solve the problems in the installation process.
Second:Quality assurance and maintenance services
1. define the quality guarantee period of steel structure warehouse. In general, the quality guarantee period of the main structure can be set for 20 years.
2. establish a quick response mechanism. After the customer discovers the quality problem and notifies us, we will get in touch with the customer within 24 hours, understand the problem in detail, and formulate the maintenance plan within 3-5 working days.
3. maintenance personnel have professional steel structure maintenance skills and rich experience, equipped with complete maintenance tools and materials, ensure the maintenance work is efficient and high-quality, and minimize the impact on the normal use of the warehouse.
Third:regular follow-up visits and maintenance suggestions
1. make regular return visits within six months after the delivery of the steel structure warehouse, understand the experience and problems encountered by customers in the process of use, and actively ask whether the structure is abnormal, such as shaking, abnormal noise, corrosion, etc.
2. according to the return visit situation, it provides targeted maintenance Suggestions for customers, including regular inspection of the connecting parts of steel structure, maintenance of corrosion protection coating, inspection and replacement of vulnerable parts, etc., so as to help customers extend the service life of the warehouse and ensure its safety and stability.
3. provide customers with a detailed maintenance manual covering daily maintenance points, regular inspection projects, maintenance cycles and emergency treatment measures under special circumstances, and guide customers to maintain their own maintenance.
Fourth:sustomer training and technical support
1. provide free training services for warehouse managers and operators of customers, The content includes the safe use specification of steel structure warehouse, equipment operation process (such as equipment lifting, ventilation equipment, etc.), structural characteristics and matters needing attention, etc., to ensure that customers can use the warehouse correctly and safely.
2. regularly hold technical exchange activities or online seminars to introduce the latest technology development, industry dynamics and our new products and services in the field of steel structure warehouse, so as to promote long-term technical cooperation and exchange with customers.
Fifth:customer feedback and continuous improvement
1. attach importance to customer feedback, establish a perfect customer feedback collection mechanism, and collect customers' opinions and Suggestions on product quality, after-sales service quality, usage experience and other aspects through questionnaire survey, customer visit and after-sales service evaluation.
2. carefully analyze and evaluate the problems and Suggestions of customer feedback, timely formulate improvement measures, and feedback the improvement results to customers, so that customers can feel our attention to them and the sincerity of continuous optimization of products and services.
If you are interested in our poducts,please contact with us.
