| Brand Name: | KXD |
| Model Number: | KXD-SBT007 |
| MOQ: | 800 Square Meters (MOQ) |
| Price: | US$38.00 |
| Delivery Time: | 35days |
| Payment Terms: | T/T,L/C |
Prefabricated light steel structure container room is a kind of environment-friendly economic mobile house with light steel structure as the skeleton, sandwich plate as the enclosure material, with standard module series for space closing, and the components are bolted and new concepts. It is a building form of standardized design, prefabricated by the factory, and then quickly assembled at the construction site. Its basic construction unit is mainly container modules, which can be combined and stitching according to different requirements to form various functions of space, such as residential, office, commercial space and so on.
Performance advantages
1.Speed of construction: because its components are prefabricated in the factory, the site is mainly assembled. Compared with traditional buildings, the construction cycle is greatly shortened. For example, a small container house project may be able to install the main structure in a few days, while traditional buildings may take weeks or even months to complete the same part.
2.Strong mobility and repeatability: the structure design of the container room makes it easy to disassemble and move. When changing the location or use, the overall container room can be removed and transported to a new location for reassembly. This is very advantageous in the construction of temporary buildings, such as temporary office rooms at the construction site, temporary venues for exhibition activities, etc., which can be easily moved after the activity.
3.Energy conservation and environmental protection: its enclosure material sandwich plate has good thermal insulation performance, which can effectively reduce the energy consumption of buildings. In addition, in the process of production, the utilization rate of materials is high, and the construction waste is relatively small. Compared with traditional buildings, the impact on the environment is less than in the whole life cycle.
4.Good seismic performance: light steel structure itself has good ductility and toughness, which can withstand large deformation without failure. When an earthquake occurs, its structure can consume the energy of the earthquake through its own deformation, so as to protect the safety of personnel and property inside the building.
5.High spatial utilization and strong functional variability: the internal space of the container room is organized and can be flexibly separated according to different needs. For example, a standard container module, through simple partition design, can easily divide it into bedroom, living room, toilet and other functional areas. At the same time, you can also add extension modules to the outside according to the requirements of use, and add space for use.
Application field
1.Construction: in the construction site, as a temporary office room, dormitory, warehouse, etc. It is convenient for the site office and rest of construction personnel, and can store building materials and tools and other materials. The characteristics of its rapid construction and demolition are highly in line with the temporary requirements of construction.
2.Business: it can be used as a temporary commercial store, such as in commercial street, shopping center or tourist attractions, for short-term commercial promotion activities, flash shops, etc. It can also be used as a long-term business place for small commercial Spaces such as coffee shops and snack bars, especially in some commercial scenarios with creative requirements for architectural forms or that require rapid opening.
3. Residential: it can be used as a temporary resettlement housing to cope with the transitional resettlement after natural disasters or temporary residence in the process of urban reconstruction. In addition, it can also be used as a permanent residence with special requirements for residential space, especially in areas with personalized needs for architectural appearance and spatial layout, which can be made into characteristic residential buildings through clever design.
4.Tourism and leisure:in tourist attractions, camping places and other places, as tourist accommodation facilities, such as container home stay. Its unique appearance and convenient construction method can add characteristics to the scenic spot and provide tourists with comfortable accommodation environment. It can also be used as a service facility in the scenic spot, such as tourist service center, catering service point and so on.
| Detachable Container House (20 feet container) | ||
| Single Unit Detail | Length | 5950mm |
| Width | 3000mm | |
| Height | 2800mm | |
| Weight | 1300kg | |
| Roof Live Load | 0.5KN/m² | |
| Wind-Resisitance | 0.6KN/m² | |
| Seismic Resistance | 8 Grade | |
| Fire-proof Grade | A | |
| Service Life time | 10-15 years | |
| Installation Time | 4 labors with 3 hours for 1 unit house | |
| Max Floors | 3 | |
| Loading | 20' Container (7 units house) |
40' HQ container (17 units house) |
| Flat Pack Container House (20 feet container) | ||
| Single Unit Detail | Length | 6058mm |
| Width | 2438mm | |
| Height | 2896mm | |
| Weight | 2145kg | |
| Roof Live Load | 0.5KN/m² | |
| Wind-Resisitance | 0.6KN/m² | |
| Seismic Resistance | 8 Grade | |
| Fire-proof Grade | A | |
| Service Life time | 15-20 years | |
| Installation Time | 4 labors with 2 hours for 1 unit house | |
| Max Floors | 3 | |
| Loading | 20' Container (3 units house) |
40' HQ container (7 units house) |
About the frame connection, detachable container use screws to connect the column and the top/bottom beams. Flat pack container connects the column and the top/bottom beams by welding. So production time of flat pack container is longer than that of detachable container. Relatively speaking, flat pack containers' on-site installation is faster and easier.
Although now detachable contaiber house has good performance, flat pack container house has better performance because it uses a combination of frame + columns.
Combining many advantages of detachable containers house and general containers, flat pack containers have good performance in transport and installation. Further there is little loss after repeated disassembly and transfer. However, the shipping volume of the flat pack container house is still larger. So its sea freight cost is higher. With the product own price, please choose the type as your actual.

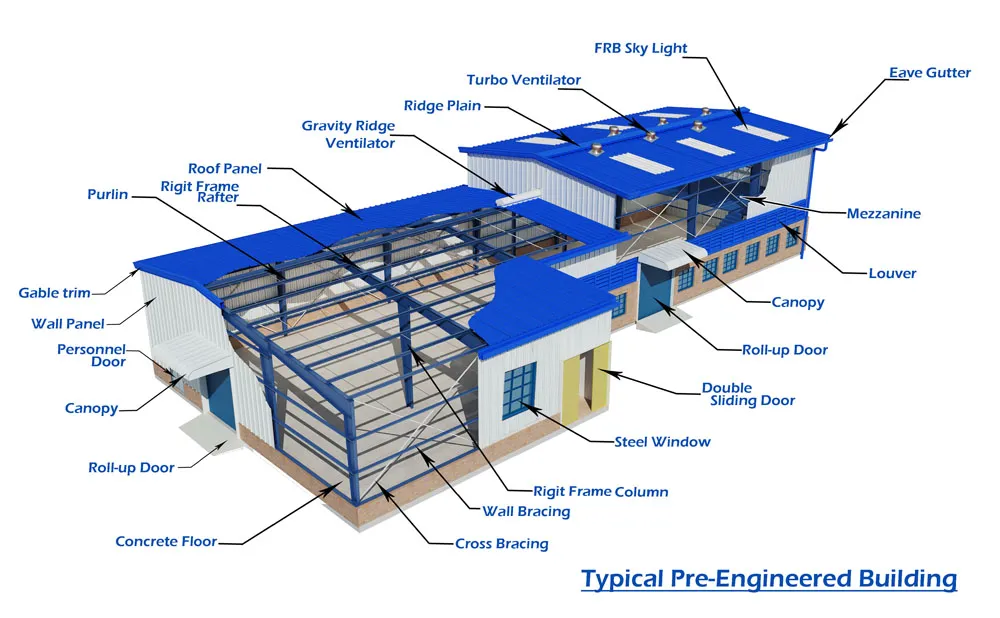

Structural diagram
Packaging&Shipping
The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.
Erection
Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.
Welcome to visit us for further negotiate
After Sales Service
First:erection guidance and commissioning
1. after the delivery of the steel structure warehouse, provide professional installation team or detailed and clear installation guide manual to assist the customer in the correct installation.
2. if the customer has problems in the process of self-installation, our technical personnel will respond to the consultation within 24 hours and conduct remote guidance through telephone and video to ensure the smooth installation work.
3. for large-scale or complex steel structure warehouse installation projects, technical personnel can be sent to the site for on-site guidance and supervision, ensure that the installation quality conforms to the standards, and timely detect and solve the problems in the installation process.
Second:Quality assurance and maintenance services
1. define the quality guarantee period of steel structure warehouse. In general, the quality guarantee period of the main structure can be set for 20 years.
2. establish a quick response mechanism. After the customer discovers the quality problem and notifies us, we will get in touch with the customer within 24 hours, understand the problem in detail, and formulate the maintenance plan within 3-5 working days.
3. maintenance personnel have professional steel structure maintenance skills and rich experience, equipped with complete maintenance tools and materials, ensure the maintenance work is efficient and high-quality, and minimize the impact on the normal use of the warehouse.
Third:regular follow-up visits and maintenance suggestions
1. make regular return visits within six months after the delivery of the steel structure warehouse, understand the experience and problems encountered by customers in the process of use, and actively ask whether the structure is abnormal, such as shaking, abnormal noise, corrosion, etc.
2. according to the return visit situation, it provides targeted maintenance Suggestions for customers, including regular inspection of the connecting parts of steel structure, maintenance of corrosion protection coating, inspection and replacement of vulnerable parts, etc., so as to help customers extend the service life of the warehouse and ensure its safety and stability.
3. provide customers with a detailed maintenance manual covering daily maintenance points, regular inspection projects, maintenance cycles and emergency treatment measures under special circumstances, and guide customers to maintain their own maintenance.
Fourth:sustomer training and technical support
1. provide free training services for warehouse managers and operators of customers, The content includes the safe use specification of steel structure warehouse, equipment operation process (such as equipment lifting, ventilation equipment, etc.), structural characteristics and matters needing attention, etc., to ensure that customers can use the warehouse correctly and safely.
2. regularly hold technical exchange activities or online seminars to introduce the latest technology development, industry dynamics and our new products and services in the field of steel structure warehouse, so as to promote long-term technical cooperation and exchange with customers.
Fifth:customer feedback and continuous improvement
1. attach importance to customer feedback, establish a perfect customer feedback collection mechanism, and collect customers' opinions and Suggestions on product quality, after-sales service quality, usage experience and other aspects through questionnaire survey, customer visit and after-sales service evaluation.
2. carefully analyze and evaluate the problems and Suggestions of customer feedback, timely formulate improvement measures, and feedback the improvement results to customers, so that customers can feel our attention to them and the sincerity of continuous optimization of products and services.
If you are interested in our poducts,please contact with us.
