| Brand Name: | KXD |
| Model Number: | KXDCH03 |
| MOQ: | 10 |
| Price: | 1000usd-1600usd per unit |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |

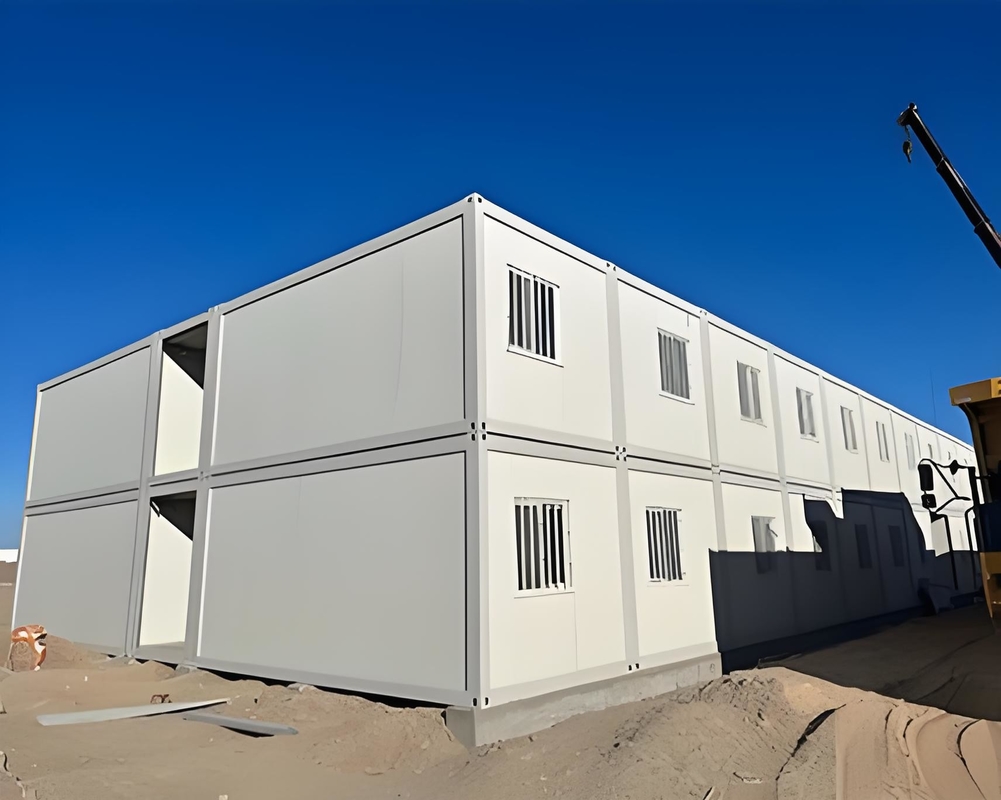

Prefabricated container house is a modular building product based on steel frame and light wall panel structure system. This product adopts the proprietary third-generation packing box technology, which is composed of top frame, bottom frame, corner post and interchangeable wall panels. It can be packaged, easy to install, and convenient for land or sea transportation. It can be used as an office, accommodation, restaurant , sanitary ware and combined large space use, which can meet the needs of construction site barracks, field work barracks and various commercial houses. It is currently widely used in Europe, Africa, Southeast Asia, North America, South America and the Middle East and other regions.
| Parameter | Specification |
|---|---|
| External Dimensions | 20' L x 8' W x 8.5' H (6.058m x 2.438m x 2.591m) |
| Internal Dimensions | 19'4" L x 7'8" W x 8'1" H (5.898m x 2.352m x 2.463m) |
| Door Opening | 7'8" W x 7'5" H (2.340m x 2.260m) |
| Weight Capacity | Max payload: 61,200 lbs (27,760 kg) |
| Empty Weight | 5,070 lbs (2,300 kg) |
| Wall Material | Corrugated Corten steel (1.6-2.0mm) |
| Insulation | 50-100mm EPS/Rockwool |
| Flooring | Plywood + vinyl/laminate |
| Roof | Weatherproof steel with UV coating |
| Windows/Doors | 1-3 windows (standard size 36"x36") + 1 entry door |
| Electrical | Pre-wired for 110V/220V (optional solar) |
| Plumbing | Optional wet bath (36"x36") and kitchen |
| Certifications | ISO 668, CSC, IBC compliant |
| Lifespan | 25-30 years with maintenance |
1️⃣ Convenient transportation
The design of the container house makes it very easy to transport, especially suitable for projects that need to change the construction site frequently. Whether it is a construction site or a temporary activity site, the container house can be quickly installed and disassembled, saving a lot of time and cost.
2️⃣ Sturdy and durable
Because all steel materials are used, the container house has extremely strong earthquake resistance and deformation resistance. In harsh environments, this mobile house can still remain stable and provide users with a safe living and working space.
3️⃣ Superior sealing performance
The strict manufacturing process ensures the water tightness of the container house, and keeps the interior dry and comfortable even in harsh weather conditions. This feature makes the container house very suitable for outdoor use, such as construction site dormitories, temporary offices, etc.
4️⃣ Multifunctional combination
The container house is based on a standard steel chassis and can be flexibly combined into various spaces, such as conference rooms, dormitories, kitchens, toilets, etc. The standard width is 3 meters, the height is 2.78 meters, and the length ranges from 6 meters to 12 meters to meet different needs.
5️⃣ Easy to disassemble and assemble, superior performance
The container house is very easy to disassemble and assemble, has superior performance, is stable and firm, has good shockproof performance, is waterproof, fireproof and anti-corrosive, and is light in weight. The house is an integral structure with a frame inside, the wall is made of steel plate, and can be decorated with wood boards. It can be moved as a whole, and its service life can reach more than 20 years.
