Product Details
Place of Origin: Qingdao,China
Brand Name: KXD STEELSTRUCTURE
Certification: ISO, CE, SGS, BV
Model Number: KXD-SSW235
Payment & Shipping Terms
Minimum Order Quantity: 1 Square Meter (MOQ)
Price: US$35.00-100.00
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 10000ton/Month
Fire Resistance: |
Class A |
Connecting: |
Bolt And Weld |
Design Style: |
Modern/Contemporary |
Cost-Effectiveness: |
Affordable |
Size: |
Customizable |
Transportation: |
Containerized |
Service: |
Design,Product,Erection,Transportation,Product Maintenance,Commissioning |
Usage: |
Warehouse, Villa, Temporary Offices, Workshop |
Sustainability: |
Eco-friendly |
Steel Type: |
Q235,Q345 |
Warranty: |
30 Years Limited Warranty |
Assembly Time: |
Rapid |
Certification: |
ISO, CE, SGS, BV |
Origin: |
Qingdao,China |
Fire Resistance: |
Class A |
Connecting: |
Bolt And Weld |
Design Style: |
Modern/Contemporary |
Cost-Effectiveness: |
Affordable |
Size: |
Customizable |
Transportation: |
Containerized |
Service: |
Design,Product,Erection,Transportation,Product Maintenance,Commissioning |
Usage: |
Warehouse, Villa, Temporary Offices, Workshop |
Sustainability: |
Eco-friendly |
Steel Type: |
Q235,Q345 |
Warranty: |
30 Years Limited Warranty |
Assembly Time: |
Rapid |
Certification: |
ISO, CE, SGS, BV |
Origin: |
Qingdao,China |
Prefabricated steel structure is a structural form in which prefabricated steel components (such as steel beams, steel columns, steel supports, etc.) are assembled on site through reliable connection methods (such as welding, bolt connection, etc.).
Performance advantage
1.High strength and light weight: Steel has high strength. Under the same force conditions, the self-weight of steel structures is light, which is convenient for transportation and installation, and also reduces the load on the foundation. The requirements for foundation treatment are relatively low, and it has more advantages in complex geological conditions such as soft soil zones.
2.Good seismic performance: Steel structure materials are uniform, with good toughness and superior seismic performance. They can effectively resist seismic forces, ensuring the safety and stability of industrial workshops and warehouses during earthquakes and reducing property losses.
3.Fast construction speed: Most components are prefabricated in the factory, and on-site assembly work is mainly carried out, which greatly reduces on-site wet work and construction time. This can shorten the project duration, enabling enterprises to put it into use more quickly and generate economic benefits.
4.High space utilization: Steel structures can be flexibly designed with reasonable component layout, providing a larger column-free space. This facilitates the rational planning of production lines and equipment layouts in industrial workshops. Warehouses can also maximize the use of space for storing goods, thereby enhancing land utilization.
5. High degree of industrialization: Achieve standardized design, factory production, assembly construction, integrated decoration and information management, improve production efficiency and quality control level, reduce human errors, and ensure building quality.
6.Environmentally friendly and recyclable: During the construction of steel structures, very little cement, sand and gravel are used, which can significantly reduce environmental pollution such as dust, construction waste and noise. Steel can be recycled and reused, which meets the requirements of sustainable development and reduces resource waste.
Application field
1.Industrial workshop: Widely applied in production workshops of various industrial fields such as mechanical manufacturing, electronics, automobiles, aviation, and chemical engineering, it can meet the demands of large-scale equipment installation, heavy component hoisting, and large-scale production line layout, providing enterprises with an efficient and safe production environment.
2.Warehouse: Suitable for logistics centers, warear-style shopping malls, factory warehouses and other warehousing facilities. It can quickly build large-span and large-space warehouses, facilitating the storage and handling of goods, improving warehousing efficiency and reducing operating costs.
3.Other supporting facilities: It can also be used for the construction of supporting facilities in industrial parks, such as office buildings, dormitory buildings, canteens, etc., providing one-stop service facilities to meet the production and living needs of enterprises.

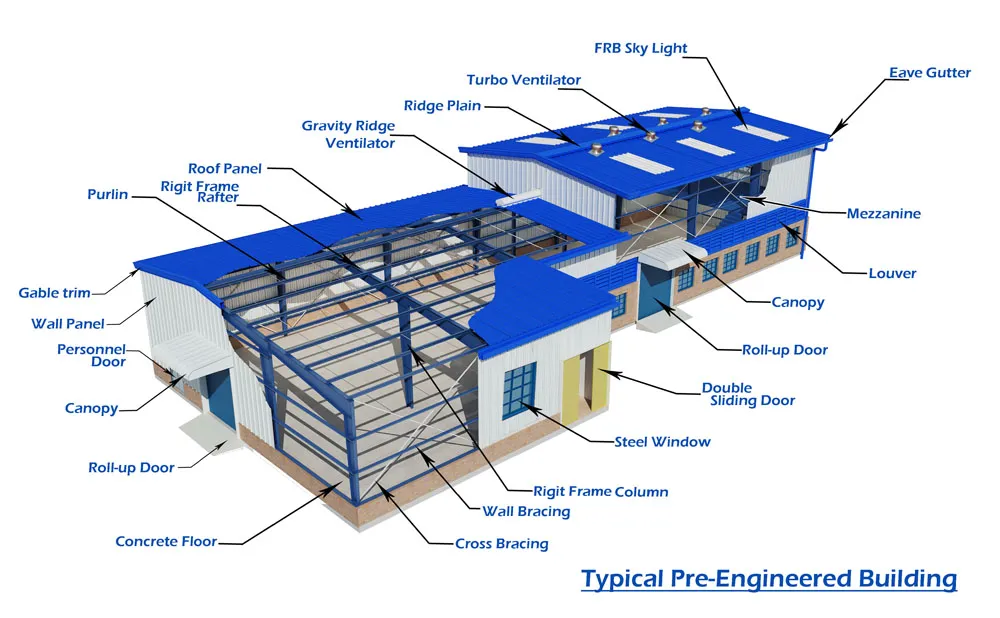

Items | Specification | |
Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
Beam | Q235, Q345 Welded H Section Steel | |
Secondary Frame | Purlin | Q235 C and Z purlin |
Knee brace | Q235 Angle Steel | |
Tie Rod | Q235 Circular Steel Pipe | |
Brace | Q235 Round Bar | |
Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
Rainspout | PVC | |
Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
Wind Resistance Grade | 12 Grades | |
Earthquake-resistance | 8 Grades | |
Structure Usage | Up to 50 years | |
Finishing Options | Vast array of colors and textures available | |
Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanize |
Packaging&Shipping
The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.
Erection
Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.
Finished Projects Showcase
Welcome to visit us for further negotiate
After Sales Service
First:Erection guidance and commissioning
1. after the delivery of the steel structure warehouse, provide professional installation team or detailed and clear installation guide manual to assist the customer in the correct installation.
2. if the customer has problems in the process of self-installation, our technical personnel will respond to the consultation within 24 hours and conduct remote guidance through telephone and video to ensure the smooth installation work.
3. for large-scale or complex steel structure warehouse installation projects, technical personnel can be sent to the site for on-site guidance and supervision, ensure that the installation quality conforms to the standards, and timely detect and solve the problems in the installation process.
Second:Quality assurance and maintenance services
1. define the quality guarantee period of steel structure warehouse. In general, the quality guarantee period of the main structure can be set for 20 years.
2. establish a quick response mechanism. After the customer discovers the quality problem and notifies us, we will get in touch with the customer within 24 hours, understand the problem in detail, and formulate the maintenance plan within 3-5 working days.
3. maintenance personnel have professional steel structure maintenance skills and rich experience, equipped with complete maintenance tools and materials, ensure the maintenance work is efficient and high-quality, and minimize the impact on the normal use of the warehouse.
Third:Regular follow-up visits and maintenance suggestions
1. make regular return visits within six months after the delivery of the steel structure warehouse, understand the experience and problems encountered by customers in the process of use, and actively ask whether the structure is abnormal, such as shaking, abnormal noise, corrosion, etc.
2. according to the return visit situation, it provides targeted maintenance Suggestions for customers, including regular inspection of the connecting parts of steel structure, maintenance of corrosion protection coating, inspection and replacement of vulnerable parts, etc., so as to help customers extend the service life of the warehouse and ensure its safety and stability.
3. provide customers with a detailed maintenance manual covering daily maintenance points, regular inspection projects, maintenance cycles and emergency treatment measures under special circumstances, and guide customers to maintain their own maintenance.
Fourth:Customer training and technical support
1. provide free training services for warehouse managers and operators of customers, The content includes the safe use specification of steel structure warehouse, equipment operation process (such as equipment lifting, ventilation equipment, etc.), structural characteristics and matters needing attention, etc., to ensure that customers can use the warehouse correctly and safely.
2. regularly hold technical exchange activities or online seminars to introduce the latest technology development, industry dynamics and our new products and services in the field of steel structure warehouse, so as to promote long-term technical cooperation and exchange with customers.
Fifth:Customer feedback and continuous improvement
1. attach importance to customer feedback, establish a perfect customer feedback collection mechanism, and collect customers' opinions and Suggestions on product quality, after-sales service quality, usage experience and other aspects through questionnaire survey, customer visit and after-sales service evaluation.
2. carefully analyze and evaluate the problems and Suggestions of customer feedback, timely formulate improvement measures, and feedback the improvement results to customers, so that customers can feel our attention to them and the sincerity of continuous optimization of products and services.
If you are interested in our poducts,please contact with us.
