1. Roof: Sandwich panel/Concrete 2. Wall: Sandwich panel/cement foam panel 3. Main Steel Framework: Steel Column, Beam, Purlin and other supporting parts with shot blasting and painting process. 4. Material: Q345 5. Window: Plastic Steel/Aluminium Window 6. Door: Vertical hinged door (KFC door) plus Canopy
I.Pre-engineered steel structure House/Building A pre-engineered building (PEB) also called Pre-Engineered Metal Buildings (PEMB) or simply Engineered Metal Buildings (EMB) is a steel structure built over a structural concept of primary and secondary members, and roof sheeting connected to each other. The structural members are custom designed to be high in strength as well as lighter in weight. At present Steel is the material of choice for all in building construction, compared to concrete and timber. Thus steel building designs have become more flexible, durable and adaptable. In future too the choice of steel building will have the same effect as on today.
A.PRE ENGINEERED BUILDING CONSISTS OF FOLLOWING MAIN COMPONENTS:: Primary Sections Column,Rafters Secondary Sections Purlins, Tie rods, Eave Strut, Rake angles, Girts Cranes and Mazzanines. Roofing and Cladding Roof Panel and Wall Panel Accessories Canopy, Turbo Vent, Ridge Vent, Gutters, Crane Runways, Insulations, Louvers, Roof curb, Sealants, Fasteners etc B.USE OF PEB PEB concept has been very successful and well established in North America, Australia and is presently expanding in U.K and other European countries. PEB is ideal for construction in remote & hilly areas due to its low cost and fast completion. PEB concept has acted as a catalyst in the infrastructure development of the country. Single storied houses for residential purposes take minimum time for construction and can be built in any type of geographic location like extreme hot, extreme cold hilly areas, high rain prone areas, plain land and seismic zones etc. The PEB rigid frame comprises of built-up members with tapered or straight columns and tapered rafters. The frame is erected by bolting the end plates of connecting sections together. C.APPLICATION Pre-engineered building systems finds primary application in construction of Warehouses and construction of Industrial Buildings. The recent focus has also shifted to cover Rural as well as urban, individual and mass housing projects, farmhouses and slum rehabilitation projects. Application of pre-engineered steel buildings has also included the following: PEB Structures are fabricated to the end user's requirement in a factory and erected at site, which leads to saving of time. PEB is ideal for Factory Buildings, Warehouses, Aircraft Hangars, Indoor Stadiums, Fuel Stations, Metro Stations, Bus Terminals, Parking Lots, Schools, and Outdoor Stadiums with canopies where the intermediate columns are to be avoided. PEB is ideal for Show Rooms, Office Complexes, Commercial Complexes & Supermarkets. PEB is ideal for Labour Camps, Community Centers, Equipment housing , Telecommunication shelters, Airports, Railway Stations & Railway Storage yards, Exhibition Halls etc. due to its aesthetics look. PEB is ideal for buildings in City Area where land cost is too high. PEB is ideal for buildings that need to be relocated to other places. PEB is ideal for buildings that are to be built faster. PEB is ideal for Residential Sectors . PEB is ideal for Buildings that need to be expanded in future D.THE MATERIAL SPECIFICATIONS OF PEB MEMBERS ARE AS BELOW: PRIMARY BUILT UP MEMBERS High grade steel plate conforming to ASTM A572M Grade 345 Type 1 carrying minimum Yield Strength of 34.5kN/cm2. It is factory Pained with a Minimum of 40 microns (DFT) of red oxide primer. SECONDARY MEMBERS: Galvanized high grade steel conforming to ASTM A653 Structural quality Grade 50 with zinc coating G90, Available in 1.5 mm, 1.75 mm, 2.0 mm and 2.5 mm thicknesses having minimum Yeild Strength as 34.5 kN/cm2. BRACING SYSTEMS : M.S. Rod bracing shall conform to Structural Components of ASTM A36 Grade 36 or equivalent with minimum yield stress of 34.5KN/cm2. SPECIFICATION OF STEEL: Flange & web material for buildup section of all PEB structural member are fabricated from high grade steel plate conforming IS: 2062, ASTM AS 572 50, Grade 345 type. Purlins are secondary members of steel structure are cold formed Z & C shaped section are made of high grade steel conforming to ASTM A607 grade 50. E.FABRICATION CAPABILITIES TO MEET CLIENT NEEDS It is the practice of assembling components of a structure in a place and transporting complete assemblies or sub-assemblies to the site where the structure is to be located. Off-site fabrication offers advantages to help achieve significant time and cost savings, support fast-track project schedules and reduce risks such as adverse weather conditions and labor shortages. Shiva Infra's comprehensive knowledge of EPC and project management (PM) allows us to optimize Clients' overall fabrication and construction configuration for cost and schedule advantages. Pre Engineered Buildings offered by us are based on PEB concept, and are widely known for their exclusive designs and compactness. Our range of Pre Engineered Buildings includes PEB, Prefab Buildings, Industrial Sheds, Prefab Sheds, Metal Roofing, Wall Cladding, Metal Decking, Cee-Zed Purlins, PUF Panels, Insulated Sandwitch Panels, Metal False Ceiling, Turbo Roof Vents, Insulation and FRP-Polycarbonate Sheets. We specialize to offer construction of heavy machine foundations for Retrofitting of Construction. With the support of our expertise, we undertake these projects, which helps make the foundation more strong, enabling it to bear heavy weight and ensure resistance against any natural hazards. Due to the many decades of experience thus gained in design, manufacture, transport and installation, we have and will continue to develop systems which have proven themselves outstandingly in modern prefabricated element and system-oriented construction. Vast storage areas allow an economic production capacity utilization as well as stockkeeping in line with the requirements of a building site. F.Advantages of Fabrication Early fabrication design to improve constructability Modularization-specific designs Focused material and equipment procurement planning to support off-site fabrication Advanced sourcing methods / Established global supplier partners (SRA) Global market knowledge / Global purchasing volume Supply chain / Logistics / Expediting Quality control / Quality assurance We offer a flexible approach to fabrication solutions, with a range of fabrication options to fit Clients' specific needs. Thanks to experienced engineers and technicians and well thought-out logistics processes, we are able to guarantee our clients maximum quality and on-time delivery. These prerequisites enable our group of companies to continue and to increase their efforts to develop further innovative prefabricated element sytems into the future despite keen competition, and to respond with flexibility to all market requirements.
Advantages
Faster installation
Single source responsibility
Lower cost
Flexibility in expansion
Large clear spans
Quality control
Low maintenance
Energy efficient roof and wall systems
Architectural versatility
Optimized design of steel reducing weight
Quick delivery and Quick turn-key construction.
Water-tight roofs & wall coverings
Pre-painted and has low maintenance requirement.
The building can be dismantled and relocated easily.
Clear spans up to 100m without internal columns
Flexibility in building dimensions
Fixed deadlines and costs
Weather-tight roof and wall coverings with accessories for long maintenance free exteriors.
Name
Specification
Length
Single slope, double slope, muti slope
Width
Single span, double-span, Multi-span
Height
single floor, double floors
Column
Q235, Q345 welding H section steel
Beam
Q235, Q345 welding H section steel
Purlin
Q235 C channel or Z channel
Knee brace
Q235 angle steel
Vertical and transversal support
Q235 angle steel, round bar or steel pipe
Tie ba r
Q235 steel pipe
Brace
Q235 round bar
Sleeve
Q235 steel pipe
Cladding system
sandwich panels (EPS, PU, Fiber glass wool etc.) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze.
Pa r tition wall
sandwich panels (EPS, PU, Fiber glass wool etc.)
Second floor
floor deck
Second floor office
fiber cement board floor panel or checkered steel plate
Stair:
Q235 steel structure with checkered steel plate
Ventilation:
ventilator
Door
sandwich panel sliding door or roller door
Windows
PVC or Aluminum
Water
Provided plan, design and technical service.
Electricity
Provided plan, design and technical service.
Gutter
stainless steel or color steel sheet
Rainspout:
PVC
Live load on roof
In 120kg/Sqm (Color steel panel surrounded)
Wind resistance grade
12
Earthquake-resistance
8degree

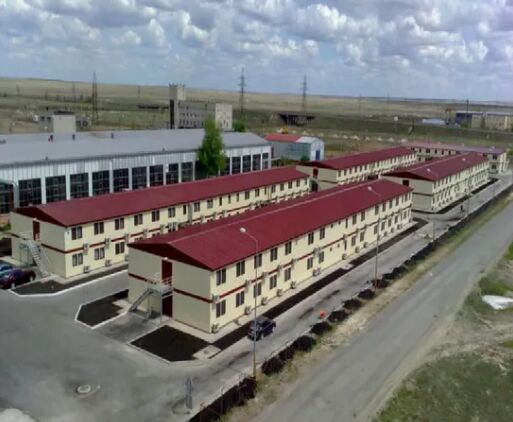

II.Container/Modular/PortableMobile House
ISO standard dimensions of 20 feet KXD and STANDARD containers - optionally 10 up to 30 feet
lenght = 6.058 mm (optionally 3.048 - 9.100 mm)
width = 2.438 mm (optionally 3.000 mm)
exterior height = 2.591 mm (optionally 2.791 mm or 3100 mm)
inner height = 2.300 mm (optionally 2.500 mm or 2800 mm)
container construction difference
ZINCED metal profyles 3 mm connected with scres
container painting
option: on customer wish in RAL color
option: painted on customer wish in RAL color
container floor
without forklift pockets
option: with forklift pockets for containers up to 7.335 mm
holes distance 1.506mm
container roof construction
50 mm poliurethane panel, externally microcorrugated RAL 9002
internally smooth RAL 9010 (white)
option: 60 mm mineral wool, bothside plastificated in RAL 9002
option: 60 mm mineral wool, bothside plastificated in RAL 9002, internally enriched chipboard 100 WHITE010 (white)
option: 100 mm mineral wool, bothside plasticated steel plate RAL 9010 (white)
option: 120 mm mineral wool, bothside plasticated steel plate RAL 9010 (white)
container exterior and inner walls
PVC with polyurethane filling 40 mm, clear opening 79/202 cm
container windows and doors
option: windows without shutters
option: windows with shutters
container isolation, coefficient of thermal resistance
floor - U = 0,37 W / m2k
roof - U = 0,39 W /m2k
wall panels - U = 0,41 W /m2k
windows - U = 2,40 W / m2k
Individual container modules They are assembled in our own factory production .They come to the market as finished product as residential or office space equipped with or without equipment. Individual container modules are used as a single objects as bungalows, dormitories, offices, warehouses, shops, workshops and a built MODULE for the construction of various shapes and purposes.
Our steel structure building is flexible layout, low foundation cost and can be designed as buyer's requirement.
Offer request
Type of Building
Please state type of building, ie: workshop, warehouse, hall, hangar, farm, roof structure or other construction
Dimension
a(width)
b(length)
h1(wall height)
h2(total height)
Construction Site
Roofing and Walls
(1)sandwich panel (2)profile steel sheets (3)steel sheet+glasswool blanket (4) no walls-only roof with structures
Contact Name
Company Name
Phone Number
Email
Additional info
Send us sketches, drawings or the project, if you have
KXD's H Section Manufacturing Equipment and Process Steel plate cutting→H section assembly→Automatic welding-H section strengthening→Assembly→Manual welding→Shot blasting-Painting→ Storage
I.Steel plate cutting The H section steel plate should be checked again by the factory and shall be applied under the condition of up to design and specified requirements after checking. Steel plate cutting should be aimed at quality guarantee and material saving. For each process like plate cutting,H type assembly, components assembly and pre-assembly should be carried out by profession setting-out worker precisely on processing surface and assembly sample plates.To guarantee the accuracy of the components'geometrical dimension,tolerance of form and position, angle and contact surface,inspection is necessary by inspector after setting out.In order to ensure the cutting quality,the surface of the ultra-thick plate is subjected to the surface carburizing hardness test before cutting.The CNC cutting equipment is preferred for cutting.The high purity 98.0% acrylic gas and 99.99% liquid oxygen gas are used to guarantee the smoothness and flatness of the cutting surface without notches and slags.The groove is cut by a special imported cutting machine.
Equipment name: Portable CNC Fire-cutting machine Model No.: CNCDG-1530 Application feature: steel plate cutting(5-100mm plate cutting thickness), beveling of the edge.Advantageous in small equipment and easy-to-move. Mainly for cutting regular and irregular small components and beveling of the plate.
Equipment name: Radial drilling machine Model No.:Z3050*16/1 Application feature:Maximum drilling diameter φ50mm,Mainly for processing of component bolt-connection holes
Equipment name:Puncher machine Model No.:JH21-400 Application feature:Maximum stamping pressure-400 ton,Mainly for plate punching, blanking, bending and shallow stretching
Equipment name:Shearing machine Model No.:Q11Y-25*2500 Application feature:cutting width 2500mm and cutting thickness 3-25mm
II.H section steel assembly The assembly process is set up on the imported H section production line.4 hydraulic positioning system press firmly against between the upper/lower flange and web plates in position. The adjust the parallelism of the flange plates and perpendicularity between flange and web plates and get them fixed after. The fixing welding should adopt C02 gas shielded welding.
Equipment name:H section steel assembly machine Model No.:Z20B Application feature:mainly for H type assembly u,flange width150-800mm,web height 160-2000 mm
III.Automatic welding The H section steel members will be hoisted into the gantry-type submerged arc automatic welding machine for welding.The welding process should be carried out in accordance with specified welding sequence and regulation parameters.Preheating, which uses the electrical heaters, is necessary for the ultra-thick plates of components.The set temperature shall be determined based on the specified one.Please see factory welding process documents for detail.
Equipment name: Gantry-type submerged arc automatic welding machine Model No.:LHA5ZB Application feature:Mainly for assembly welding of H section steel whose maximum cross section up to 800mm×2000mm
IV.H section steel strengthening machine H section steel strengthening process: Correction of flange flatness by using H section steel flange plate strengthening machine.Flame-correct the perpendicularity between the H section flange and web plate under special circumstances and then correct the side bending of the H section steel. The flame temperature should be controlled under the range of 600~800ºC.
Equipment name:H section steel strengthening machine Model No.:YTJ60B Application feature:Mainly for correcting the deformation of I beam or H section steel flange plate during welding process,flange width200-1000mm, flange thickness≤60mm, web height≥350mm
Equipment name:H section flange strengthening machine Model No.: HYJ-800 Application feature:Mainly for correcting the deformation of I beam or H section steel flange plate during welding process,flange width 160-800mm,flange thickness≤40mm,web height≥160mm
V.Simulated assembly of component 1.Get familiar with component shop drawing and technical requirements. 2.The model components need to re-check by related department after making and finalizing of the model components and then to assemble. 3.Accurate mark-up 4.Inspect the component after first assembly.For multi-group components, pre-assembly for the first group and then batch assembly after qualified test.
VI.Manual welding
VII.Shot blasting Equipment name:10-ramming heads shot blasting machine Model No.:QH1525 Application feature:Mainly for shot blasting of section steels including H section steel, welded members and steel plate,10 ramming head; Machine entry size:1500Í2500 and member at1200Í2000 size could pass the machine at once; up toSa2.5 Grade.
VIII.Painting The surface of the members should be in even,flat, glossy and full painting without manifest of cracking, peeling and pin holing.The color and coating thickness should also meet design requirements.If there is no certain requirements,the following standards should be followed:thickness is 150μm indoor while 125μm outdoor.The allowable deviation is-25μm.The allowable deviation of dry paint film thickness for each-time painting Two coats of primer:thickness being40±5μm; Two coats of finish paint:thickness being 60±5μm.
Equipment name:Airless sprayer Model No.:CPQ9CA Application feature: Derived capacity:56 L/min,Air consumption:50~1200 L/min.Mainly for surface paint of structural members, Pressure ration: 32:1
Process, fabrication and quality control standard on welding groove/beveling of steel structure 1.Purpose To ensure the welding quality, meeting up the technical requirements of welded members and improve the standardization of our fabrication, we specially formulate this regulation. 2.Application scope This manual apply for the design, fabricate and inspection of groove joint in terms of manual arc welding, CO2 arch welding, mixed gas arch welding, submerged arc welding and electroslag welding. 3.Design of welding groove 3.1Key points on design welding groove: In order to obtain quality groove, it is necessary to choose appropriate form of groove. The option of groove mainly depends on the thickness of base metal, welding method and craftsmanship requirements.The followings are the factors we need to consider:
minimize the amount of filler metal
easy for beveling
in convenience for welding operation and slag removal
After welding stress and deformation should be as small as possible
3.2Groove direction: We will consider the following factors for the groove direction: A)in favor of welding process and removing slag and leave enough space for welding process on the fusion face B)minimize the times of flip-flop during welding C)way of fit-up in actual welding
3.3.Regulation on groove direction of members:
3.3.1Butt welding on H section rafter/column (when CJP-complete joint penetration and single side fusion is required) 1) When there is no welding backing, the groove orientation on flange plates should be same and falls on the direction in favor of welding on web plats(same rules apply for the PJP situation). Please refer to illustration 1
2)When there is welding backing, we require the groove direction being outward for the flange plates(opposite direction for web plates) and still falls on the direction in favor of welding on web plates. Please refer to illustration 2 3)Butt-welding on construction site:we require all the grooves should be bevelled on the upper rafter/column when it comes to bolt connection for web plates(see illustration 3). For the scenario of welding on web plates, please refer to the illustration 4. 3.3.2 Box column(groove on itself).See illustration 5 4.Welding groove form 4.1.Mark on form and size of welding joint groove: Example: Shielded metal arch welding, complete joint penetration, butt welding, I shape groove, welding backing and single side weld would be marked MC-BI-BS1 4.2.For the mark of welding method and penetration type, please see the following chart 1. Chart1Mark on welding method and penetration type
Mark
Welding method
Penetration type
MC
Shielded metal arch welding
CJP-complete joint penetration
MP
PJP-partial joint penetration
GC
Shielded arch welding Self-shielded arc welding
CJP-complete joint penetration
GP
PJP-partial joint penetration
SC
Submerged arc welding
CJP-complete joint penetration
SP
PJP-partial joint penetration
SL
Electroslag welding
4.3.For the mark of single, double side welding and backing material type, please see the following chart 2 Chart 2 Single/double side welding and backing material type mark
Backing material type
Single/double side welding
Mark
Material
Mark
Single/double side welding
BS
Metal backing
1
Single side welding
BF
Other backing
2
Double side welding
4.4.Mark on each part size of groove, see chart 3. Chart3Size mark on groove
