You may seek for a construction solution for your industrual building and facilities.Bricks,concrete,wood...KXD tell you "No"!Because we have better option for you-Pre-Engineered Structural Steel/Metal Building! Now you are definitely gonna ask-what are the advantages of pre-engineered steel/metal building or why should I choose steel/metal building for my Garage?Tell you what! Statistics has shown that steel building has been a trendy and reliable construction solution whether for commercial,industrial or residential applications.Compared with the tradtional R.C.C(reinforced concrete) building,pre-engineered steel structure building is30% cost-saving,60% less construction time required,40% less weight and nearly 80% resell value while meeting up the customer's construction request at the same time.

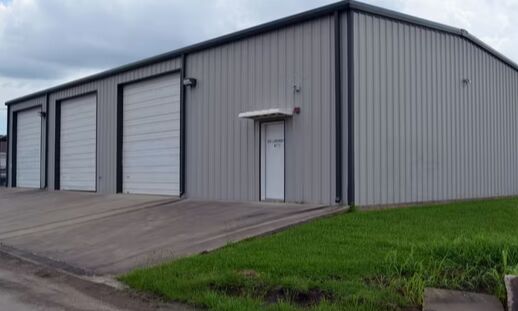

Feel kind of interesting!Before my formal introduction on the metal building system,please go for the following photo to get a outline of what a prefab steel structure building is!
Introduction on KXD's prefab structure building system
Pprefab structures for industrial and commercial functions are a steel structures built over a structural concept of primary members, secondary members, roof and wall sheeting connected to each other and various other building components. These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, fascias, canopies, crane systems, insulation etc., based on the customer's requirements. All the steel buildings are custom designed to be lighter in weight and high in strength. Thus steel building designs have become more flexible, durable and adaptable over the last four decades which has made steel one of the preferred materials for building construction.
PMB/PEB's are ideal for non-residential and wide-span low-rise buildings. Some of the key advantages of PMB/PEB include economical in cost, factory controlled quality, durability, longevity, flexibility in expansion, environmentally friendly, faster installation, etc.
Pre-engineered metal buildings are used for diverse applications such as factories, warehouses, showrooms, supermarkets, aircraft hangars, metro stations, offices, shopping malls, schools, hospitals, community buildings and many more.
As a leading PMB/PEB manufacturer, KXD provides the complete service of engineering, fabrication and erection thus ensuring better quality control at every stage of the process. Pre-engineered metal buildings consists of following components:
Primary Members / Main Frames
Secondary Members / Cold Formed Members
Roof & Wall Panels
Accessories, Buyouts, Crane System, Mezzanine System, Insulation, etc.
Sandwich Panels
PRIMARY MEMBERS / MAIN FRAMES
Primary members are the main load carrying and support members of a pre-engineered building. The main frame members include columns, rafters and other supporting members. The shape and size of these members vary based on the application and requirements. The frame is erected by bolting the end plates of connecting sections together. All the steel sections and welded plate members are designed in accordance with the applicable sections as per the latest international codes and standards such as GB and IS to meet all the customer specifications. LEAN TO (L-TO)
SPAN
3 18
3m to 18m
SPACE SAVER (SV)
SPAN
6 18
6 m to 18 m
L CANOPY (L-CAN)
SPAN
3 6
3 m to 6 m
BUTTERFLY CANOPY (T-CAN)
SPAN
6 12
6m to 12m
SINGLE SLOPE
SPAN
6 18
6 m to 18 m
RIGID FRAME (RF)
SPAN
6 96
6 m to 96 m
BEAM & COLUMN (BC-1)
SPAN
24 48
24 m to 48 m
BEAM & COLUMN (BC-2)
SPAN
36 72
36 m to 72 m
BEAM & COLUMN (BC-3)
SPAN
48 96
48 m to 96 m
MULTI SPAN (MS)
SPAN
24 120 24 m to 120 m
CRANE BEAMS
Crane Beams are support members for different type of cranes and allow for unobstructed movement of cranes along the building length. These crane beams are supported on the columns of a building.
MEZZANINE SYSTEMS Standard mezzanine system consists of profiled steel deck, mezzanine joists, built-up beams and intermediate support columns. Built-up beams span in lateral directions and mezzanine joists in longitudinal directions bolted to the top flange of beams. A concrete slab is cast on the steel deck as a finished surface. Steel checkered plates can also be used as top surface.
TRUSSES
KXD Truss System is one of the company's most popular and highly economical products. It is a rigid structure, ideal for large span roof systems, multiple bay buildings and as mezzanine floor framing. These structures are individually designed to meet the specific requirements of each building and are fabricated utilizing high quality efficient fixtures. The system allows for easy erection as all connections are field bolted except for field splices on very large spans, no site welding is required. There is possibility of significant reduction in clearances and building heights by running service pipes/ducts through the trusses. Foundation costs are also reduced due to fewer columns being required to support larger spans.
FASCIAS AND CANOPIES KXD provides various types of fascias specially designed as per the customer's requirements. These can be either vertical, horizontal or with curved sheeting to enhance the architectural look of the building. Wall canopies at eaves, endwall, over doors and windows are also provided based on the requirement.
SECONDARY MEMBERS / COLD FORMED MEMBERS
Secondary structural framing refers to purlins, girts, eave struts, wind bracing, flange bracing, base angles, clips and other miscellaneous structural parts. Purlins, girts and eave struts are cold formed steel members which have a minimum yield strength of 345 MPa (50,000 psi) and will conform to the physical specifications of GB/ISO/CE or equivalent.
PURLINS & GIRTS Purlins and girts are roll formed Z sections, 200 mm deep with 64 mm flanges shall have a 16 mm stiffening lip formed at 45˚ to the flange. They are supported on columns, rafters or building walls. They can be lapped and nested at the supports which creates a continuous beam configuration. They are placed on the roof and perimeter of the building. Hence they serve as a support to the roof sheeting and wall cladding.
C SECTION C-Sections are 200 mm deep with a 100 mm flange. The flanges are perpendicular to the web and have a 24 mm stiffening lip.
EAVE STRUT Eave struts are 200 mm deep with a 104 mm wide top flange, a 118 mm wide bottom flange, both are formed parallel to the roof slope. Each flange has a 24 mm stiffener lip. These are located along the sidewall; at the intersection of the planes of the roof and wall. It is constructed from cold formed C-Section and is rolled to suit the roof slope. This member transmits longitudinal wind force on the end walls from roof brace rods to wall brace rods.
OPEN WEB JOISTS These are long span load carrying trusses suitable for direct support of floors and roof decks in the buildings. The system consists of crimped angles welded to the top and bottom chords.
CABLE BRACING Cable bracing is made of extra high strength seven strand cable and can be designed to accommodate any length to ensure the stability of the building against forces in the longitudinal and lateral direction due to wind, cranes and earthquakes. It is made of a cable which is forged into a rod terminal and this arrangement is then fixed on a structure using a hill side washer, nut washer and a nut.
ROOF & WALL PANELS
KXD ROOF (KR) & KXD WALL (KW) (AVAILABLE IN ALL REGIONS)
KXD standard steel panels are 0.3,0.4 0.5 mm or 0.6 mm thick and have a minimum yield strength of 345 MPa. Steel panels are hot dipped and galvanized with zinc or zinc-aluminium coating. Galvanized materials conform to GB for 275 grams per square meter according to GB. KXD panels are prepared with a multilayered coating system to ensure long life and optimum coating adherence. The base material is pretreated, before applying a corrosion resistant primer and top coat. The combined thickness of the painted film is 25 microns on the front side and 12 microns on the reverse side.
KXD RIB / ROOF (KR)
KXD Roof profile is strong and cost effective and was developed specifically for roofing applications. The bearing leg design permits easier installation and maintenance, supports thicker layers of insulation and allows easier curvature for a visually appealing finish. Coverage Area:1000 mm Rib Depth:25mm
KXD WALL (KW) KXD Wall is a cost effective, partially concealed fastener panel with a sculptured valley shape between the major ribs for a superior architectural look for external walls. Coverage Area:1000 mm Rib Depth:15 mm
KxD DECK
KXD Deck Panels are used in high rise buildings, office buildings and mezzanine floors in industrial buildings and warehouses. These decks can be used as a permanent shuttering to support the wet concrete and help in creating composite slabs and floor beams. The continuous flange stiffeners and deep embossments increase the load carrying capacities. They provide for a stable and rigid working platform without any need of propping. These panels are roll formed from hot dip galvanized coils of 345 Mpa with thickness starting from 0.6 mm to 1.2 mm. KIRBY STANDARD COLORS Arctic White, Caribbean Blue, Desert Beige, Sun Gold, Autumn Green, Galvalume/AluZinc
INSULATED SANDWICH PANELS
INSULATION
The main purpose of insulating a building is to reduce the heat transfer coming through the ceilings and openings.
Polyurethane Insulation
This is a panel manufactured by the press injection method to produce a polyurethane core between exterior steel facings. It can be used on the roof and wall as claddings. Fiber Glass Insulation
This can be used on the roof or wall and can be retrofitted on existing buildings. The fiber glass insulation is fire safe and CFC free and does not emit toxic smoke. It is laminated to the top and bottom steel facings with special chemical glue hence completely filling the insulation cavity. SANDWICH PANELS KXD Roof Insulated Panel (KRIP) KXD Roof Insulated Panels (KRIP) is one of the premier roofing systems which uses the KXD Roof (KR) profile for a durable, low maintenance and weather-tight roofing system. The large panel size reduces the number of joints, and the high corrugation overlap joint reduced water leakage. Kirby Wall Insulated Panel (KWIP) KXD Wall Insulated Panels (KWIP) uses the KXD Wall (KW) cladding profile for a speedy and cost-efficient solution for external walls where higher insulation performance is required. This profile is most suitable to overshadow the fasteners. It can be applied as external walls for commercial and industrial applications.
For any new potential metal building buyer,KXD's turnkey solution pack would make your project just like a local market purchase experience with so much ease because you just need to fill out follwoing form and KXD will do the following work for you!
Advantages
Faster installation
Single source responsibility
Lower cost
Flexibility in expansion
Large clear spans
Quality control
Low maintenance
Energy efficient roof and wall systems
Architectural versatility
Optimized design of steel reducing weight
Quick delivery and Quick turn-key construction.
Water-tight roofs & wall coverings
Pre-painted and has low maintenance requirement.
The building can be dismantled and relocated easily.
Clear spans up to 100m without internal columns
Flexibility in building dimensions
Fixed deadlines and costs
Weather-tight roof and wall coverings with accessories for long maintenance free exteriors.
Project Name
Steel Structure Airplane Maintenance Center
Structure type
Steel Space Frame Structure steel structure building
Dimension
Customized
Cladding material
Galvanized purlin, Color steel sheet, Fittings, etc steel structure building
Features
1. Stable and Aesthetic
2. Structure is durable for 50 years steel structure building
5. High anti-rust performance steel structure building
6. Flexible composition: Doors and Day-lighting roof could be installed at any position
KXD's H Section Manufacturing Equipment and Process Steel plate cutting→H section assembly→Automatic welding-H section strengthening→Assembly→Manual welding→Shot blasting-Painting→ Storage
I.Steel plate cutting The H section steel plate should be checked again by the factory and shall be applied under the condition of up to design and specified requirements after checking. Steel plate cutting should be aimed at quality guarantee and material saving. For each process like plate cutting,H type assembly, components assembly and pre-assembly should be carried out by profession setting-out worker precisely on processing surface and assembly sample plates.To guarantee the accuracy of the components'geometrical dimension,tolerance of form and position, angle and contact surface,inspection is necessary by inspector after setting out.In order to ensure the cutting quality,the surface of the ultra-thick plate is subjected to the surface carburizing hardness test before cutting.The CNC cutting equipment is preferred for cutting.The high purity 98.0% acrylic gas and 99.99% liquid oxygen gas are used to guarantee the smoothness and flatness of the cutting surface without notches and slags.The groove is cut by a special imported cutting machine.
Equipment name: Portable CNC Fire-cutting machine Model No.: CNCDG-1530 Application feature: steel plate cutting(5-100mm plate cutting thickness), beveling of the edge.Advantageous in small equipment and easy-to-move. Mainly for cutting regular and irregular small components and beveling of the plate.
Equipment name: Radial drilling machine Model No.:Z3050*16/1 Application feature:Maximum drilling diameter φ50mm,Mainly for processing of component bolt-connection holes
Equipment name:Puncher machine Model No.:JH21-400 Application feature:Maximum stamping pressure-400 ton,Mainly for plate punching, blanking, bending and shallow stretching
Equipment name:Shearing machine Model No.:Q11Y-25*2500 Application feature:cutting width 2500mm and cutting thickness 3-25mm
II.H section steel assembly The assembly process is set up on the imported H section production line.4 hydraulic positioning system press firmly against between the upper/lower flange and web plates in position. The adjust the parallelism of the flange plates and perpendicularity between flange and web plates and get them fixed after. The fixing welding should adopt C02 gas shielded welding.
Equipment name:H section steel assembly machine Model No.:Z20B Application feature:mainly for H type assembly u,flange width150-800mm,web height 160-2000 mm
III.Automatic welding The H section steel members will be hoisted into the gantry-type submerged arc automatic welding machine for welding.The welding process should be carried out in accordance with specified welding sequence and regulation parameters.Preheating, which uses the electrical heaters, is necessary for the ultra-thick plates of components.The set temperature shall be determined based on the specified one.Please see factory welding process documents for detail.
Equipment name: Gantry-type submerged arc automatic welding machine Model No.:LHA5ZB Application feature:Mainly for assembly welding of H section steel whose maximum cross section up to 800mm×2000mm
IV.H section steel strengthening machine H section steel strengthening process: Correction of flange flatness by using H section steel flange plate strengthening machine.Flame-correct the perpendicularity between the H section flange and web plate under special circumstances and then correct the side bending of the H section steel. The flame temperature should be controlled under the range of 600~800ºC.
Equipment name:H section steel strengthening machine Model No.:YTJ60B Application feature:Mainly for correcting the deformation of I beam or H section steel flange plate during welding process,flange width200-1000mm, flange thickness≤60mm, web height≥350mm
Equipment name:H section flange strengthening machine Model No.: HYJ-800 Application feature:Mainly for correcting the deformation of I beam or H section steel flange plate during welding process,flange width 160-800mm,flange thickness≤40mm,web height≥160mm
V.Simulated assembly of component 1.Get familiar with component shop drawing and technical requirements. 2.The model components need to re-check by related department after making and finalizing of the model components and then to assemble. 3.Accurate mark-up 4.Inspect the component after first assembly.For multi-group components, pre-assembly for the first group and then batch assembly after qualified test.
VI.Manual welding
VII.Shot blasting Equipment name:10-ramming heads shot blasting machine Model No.:QH1525 Application feature:Mainly for shot blasting of section steels including H section steel, welded members and steel plate,10 ramming head; Machine entry size:1500Í2500 and member at1200Í2000 size could pass the machine at once; up toSa2.5 Grade.
VIII.Painting The surface of the members should be in even,flat, glossy and full painting without manifest of cracking, peeling and pin holing.The color and coating thickness should also meet design requirements.If there is no certain requirements,the following standards should be followed:thickness is 150μm indoor while 125μm outdoor.The allowable deviation is-25μm.The allowable deviation of dry paint film thickness for each-time painting Two coats of primer:thickness being40±5μm; Two coats of finish paint:thickness being 60±5μm.
Equipment name:Airless sprayer Model No.:CPQ9CA Application feature: Derived capacity:56 L/min,Air consumption:50~1200 L/min.Mainly for surface paint of structural members, Pressure ration: 32:1
Process, fabrication and quality control standard on welding groove/beveling of steel structure 1.Purpose To ensure the welding quality, meeting up the technical requirements of welded members and improve the standardization of our fabrication, we specially formulate this regulation. 2.Application scope This manual apply for the design, fabricate and inspection of groove joint in terms of manual arc welding, CO2 arch welding, mixed gas arch welding, submerged arc welding and electroslag welding. 3.Design of welding groove 3.1Key points on design welding groove: In order to obtain quality groove, it is necessary to choose appropriate form of groove. The option of groove mainly depends on the thickness of base metal, welding method and craftsmanship requirements.The followings are the factors we need to consider:
minimize the amount of filler metal
easy for beveling
in convenience for welding operation and slag removal
After welding stress and deformation should be as small as possible
3.2Groove direction: We will consider the following factors for the groove direction: A)in favor of welding process and removing slag and leave enough space for welding process on the fusion face B)minimize the times of flip-flop during welding C)way of fit-up in actual welding
3.3.Regulation on groove direction of members:
3.3.1Butt welding on H section rafter/column (when CJP-complete joint penetration and single side fusion is required) 1) When there is no welding backing, the groove orientation on flange plates should be same and falls on the direction in favor of welding on web plats(same rules apply for the PJP situation). Please refer to illustration 1
2)When there is welding backing, we require the groove direction being outward for the flange plates(opposite direction for web plates) and still falls on the direction in favor of welding on web plates. Please refer to illustration 2 3)Butt-welding on construction site:we require all the grooves should be bevelled on the upper rafter/column when it comes to bolt connection for web plates(see illustration 3). For the scenario of welding on web plates, please refer to the illustration 4. 3.3.2 Box column(groove on itself).See illustration 5 4.Welding groove form 4.1.Mark on form and size of welding joint groove: Example: Shielded metal arch welding, complete joint penetration, butt welding, I shape groove, welding backing and single side weld would be marked MC-BI-BS1 4.2.For the mark of welding method and penetration type, please see the following chart 1. Chart1Mark on welding method and penetration type
Mark
Welding method
Penetration type
MC
Shielded metal arch welding
CJP-complete joint penetration
MP
PJP-partial joint penetration
GC
Shielded arch welding Self-shielded arc welding
CJP-complete joint penetration
GP
PJP-partial joint penetration
SC
Submerged arc welding
CJP-complete joint penetration
SP
PJP-partial joint penetration
SL
Electroslag welding
4.3.For the mark of single, double side welding and backing material type, please see the following chart 2 Chart 2 Single/double side welding and backing material type mark
Backing material type
Single/double side welding
Mark
Material
Mark
Single/double side welding
BS
Metal backing
1
Single side welding
BF
Other backing
2
Double side welding
4.4.Mark on each part size of groove, see chart 3. Chart3Size mark on groove
